Product Details:
|
| Model Name: | 1U HD Rack Mount Fiber Patch Panel | Structure: | Cold Rolled Steel |
|---|---|---|---|
| Front Connector: | LC Flangless DX Adapter (48pcs) | Fiber Count: | 96 |
| Fiber Type:: | OM3 50/125um | HD Cassette Or Adapter Panel: | 4 |
| Channel Insertion Loss: | ≤ 0.35dB(MTP), ≤0.08dB(LC) | Return Loss: | ≥20dB(MTP), ≥65dB(LC) |
| Material Coating: | Powder Coating | 1U Dimensions (Hxwxd): | 483 (H)×44 (H)×380mm(W) |
| Splice Capacity: | 24 Fibers | RoHS Compliancy Status: | Compliant |
| Highlight: | 1U HD Fiber Patch Panel,Patch Panel With MPO Cassette,1U Patch Panel With Adapter Panel |
||

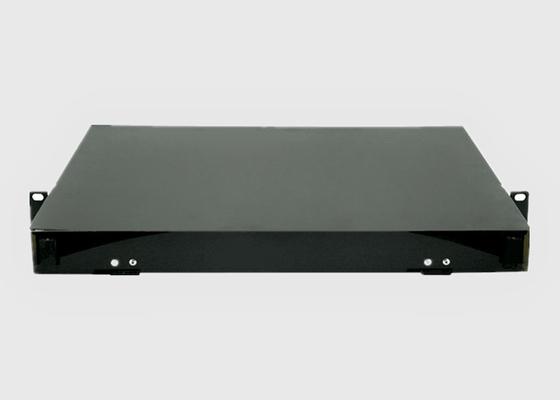

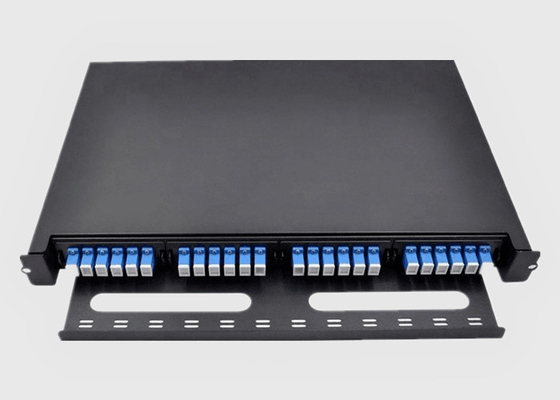

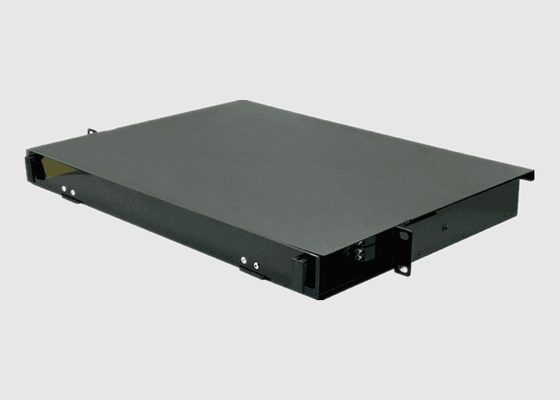

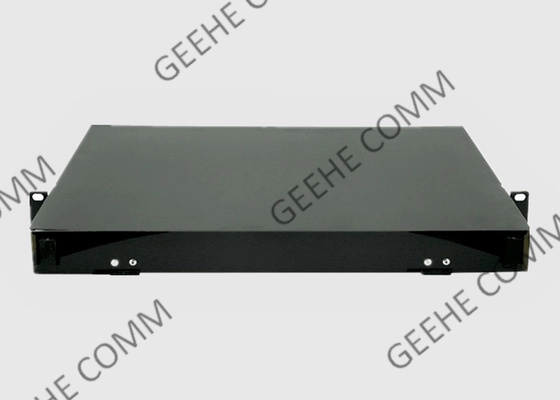

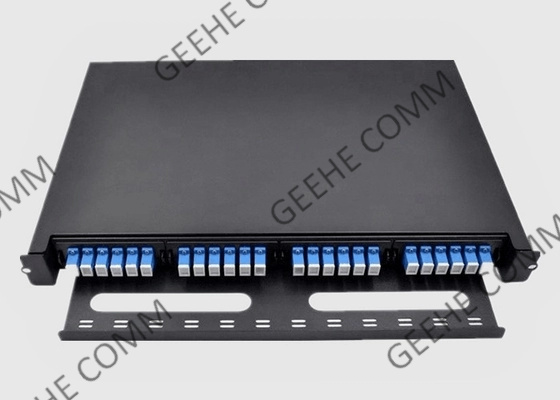

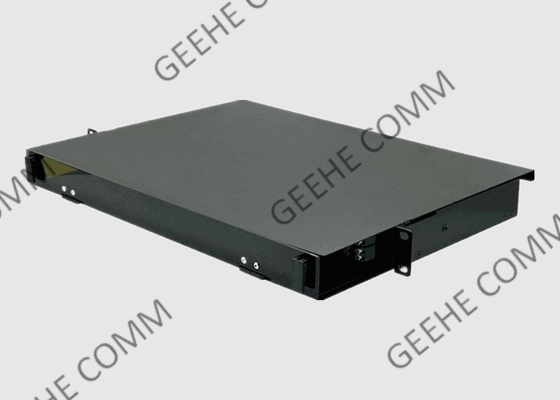

1U HD Rack Mount Fiber Patch Panel with HD MPO /MTP Cassette or Adapter Panel
Basic Information:
1RU Ultra High-Density rack mount enclosure, which can house 12 pcs UHD series MPO modular cassettes or fiber adapter panels. It provides high density flexible system for managing fiber terminations, connections, and patching in data center application to maximizing rack space utilization and minimizing floor space. FHX fiber optic enclosure houses, organizes, manages, and protects fiber optic cable terminations. The 1U enclosure houses 3 independently sliding drawers, each drawer can hold 4 UHD MPO cassettes by default.
Easy front access with hinged cable management bar which provides protection of the patch cords as well as labelling.
Sliding patch panel is supplied unloaded and the modules and adapters plates are supplied separately.
Fiber Patch Panels 24 port Benefit&Feature:
1. 4 Slots HD in 1U space
2. Up to 96FO in LC / 48FO in SC
3. Modular with MPO, Splice Cassettes or Adapter plates
4. RoHS, REACH and SVHC
5. Datacentre & Enterprise network
6. Indoor application
7. Accepts Indoor and Outdoor Pre-terminated cables and MTP trunks and Splicing
Fiber Patch Panels 24 port Application:
1. Datacenter&Enterprise network
2. Indoor application
3. Accepts Indoor and Outdoor Pre-terminated cables and MTP trunks and splicing
Specificaiton&Technology Parameters :
| Mounting Type | Rack 19" |
| Height Unit | 1U |
| Material | Cold Rolled steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Locakble | No |
| Dimensions (W×D×H in MM) | 483 (H)×44 (H)×380mm(W) |
| Net Weight | 3KG |
| Opening Type | Sliding tray with 45° open working angle |
| Access Type | Front access |
| Front Cable Management | Optional hinged drop-down door |
| Cable Entry Direction | Rear |
| Rear Cable Management | 6 cable entries |
| Slot Type | HD Modules and HD Plates |
| Number of Slots | 4 |
| Fiber Capacity | 96 in LC |
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
