Product Details:
|
| Module Name: | 1550NM Wideband Couplers | Port Type: | 1×2 |
|---|---|---|---|
| Fiber Type: | Fiber All Ports Or SM Fiber | Jacket: | 250um Or 900nm Or Others |
| Connectors: | With FC UPC Connectors | Pigtail Length: | 1M,1.5M Or Customized |
| Common Pass Port: | PM980,PM1310 Or PM1550 | Option Channel: | 2, 4, 8 , 16, 18 ,36, 48 Channels |
| Operating Wavelength: | 980~1620 Nm | Package: | Original Carton Package; As Customers' Requirement |
| Highlight: | 1550NM Wideband Couplers,Steel Tube 1550NM Wideband Couplers |
||

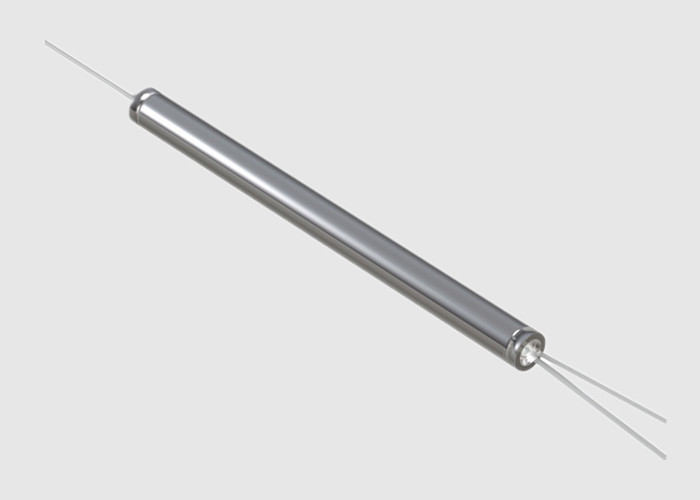

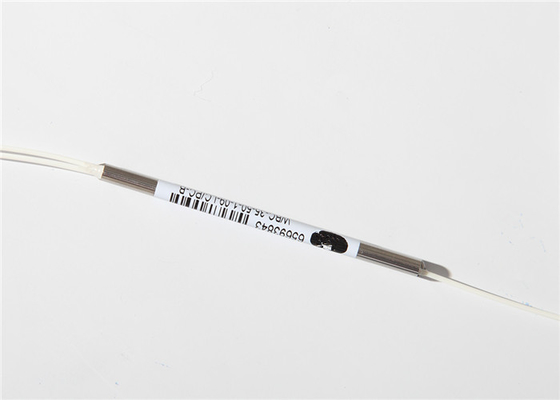

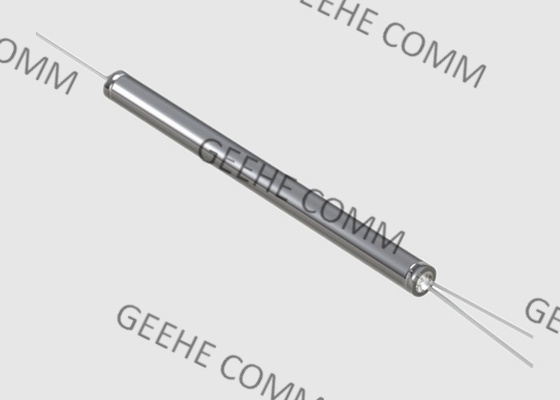

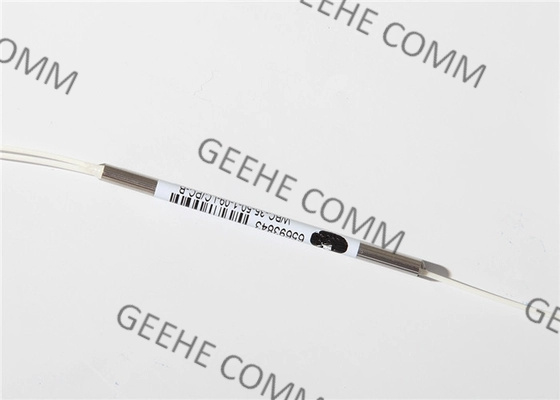

Single Mode Steel Tube 1550NM Wideband Couplers
Basic Information:
Wideband CouplersThe dual window Wideband Couplers (WBC) split or couple optical power in two wave-length regions while maintaining a very broad operating bandwidth.
Split and coupling ratios are available from 1% to 99%. WBCs are widely considered one of the most cost-effective solutions for optical power management. The WBC is an all-fiber device, based on Geehe's fused biconic technology, and is designed and manufactured to meet military and Telcordia requirements.
From Taper equipment to software, every step is R&D by own team, quality is more stable.
.
1×2 Fused WDM Benefit&Features:
Fused WDM Benefit&Features:
* GR-1209-CORE Requirements for passive optic components
* GR-1221-CORE Reliability assurance requirements for passive optical components
* GR-326-CORE Requirements for single-mode optical connectors sand jumpers assemblies
* TIA-604 Fiber optic connector interpretability standard
* ROHS Directive on the restriction of hazardous substances
1×2 Fused WDM Applications:
Specifications& Technology Parameters:
| Parameter | 980/1550nm WDM or 1060/1550nm WDM | 1310/1550nm WDM | 1480/1550nm WDM |
| Fiber Type(dB) | Corning HI1060flex or OFS BF05635-02 | SMF-28e | |||||||
| Operating Wavelength(nm) | 980 & 1550 | 1060 & 1550 | 1310 & 1550 | 1480 & 1550 | |||||
| Operating Bandwidth(nm) | ±10/20 | ±15 | ±15 | ||||||
| Grade | P | A | P | A | P | A | P | A | |
| Insertion Loss(dB) | ≤0.15 | ≤0.25 | ≤0.30 | ≤0.40 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.35 | |
| Isolation(dB) | ≥20 | ≥18 | ≥20 | ≥18 | ≥25 | ≥18 | ≥25 | ≥18 | |
| PDL(dB) | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.1 | |
| Directivity(dB) | ≥55 | ||||||||
| Operating Temperature(℃) | -40 ~ +85 | ||||||||
* The above specification is excluding the connector
* Other specifications can be made on customer requires
Ordering Information:
| WDM- | N- | XX- | XX- | X- | XX- | XX- | X | |||
| 95:980&1550nm 135:1310&1550nm 65:1060&1550nm 45:1480&1550nm | 01: :SMF-28e 02: HI1060flex, 03: OFS BF05635-02 |
1:1m X:customization |
25:250μM Fiber 09:900μM loose Fiber 20: 2mm cable 30: 3mm cable |
SC:SC/UPC SA:SC/APC ...... 00:No connector |
A: A B: B C: C |
|||||
| Grade | Operation Wavelength | Fiber Type | Fiber Length | Pigtail Type | Connect Type | Dimension | ||||
WDM Cable Types:
1. Single-mode fibers allow one mode to propagate.
2. Multimode fibers support the propagation of multiple modes.
3. Wavelength range is the range of wavelengths the WDM will operate in.
4. Bandwidth, also called channel spacing, is the size of the windows in nm.
5. Channel spacing is the center-to-center difference in frequency between neighboring channels. Two hundred GHz corresponds to .4 nm spacing, 100 GHz corresponds to .2 nm spacing, and 50 GHz corresponds to .1 nm spacing.
6. Number of channels is the number of channels the device has to send information. This number can range from 4 to 160 with design enhancements adding more channels.
7. Insertion loss is the attenuation caused by the insertion of wavelength division multiplexers (WDM) in an optical transmission system.
Polarization-dependent loss is the maximum deviation in insertion loss across all input polarization states.
