Product Details:
|
| Model Name: | Armored Fiber Optic Patch Cord Jumper | Fiber Types: | G652-D, G657A1, G657A2, ULTRA, G655, OM1 Etc OM2, OM3, OM4 And Armored Cable |
|---|---|---|---|
| Connector Types: | SC/APC 8 Degrees, LC/APC,SC/PC, LC/PC, ST/PC Etc | Fiber Length: | 1m,1.5m,2m,3m,5m,10m,15m,20m Etc, Customization |
| Cable Size: | 0.9mm,2.0mm,3.0mm | Model: | Single Mode, Multi Mode |
| Jacket: | OFNR ,have PVC, LSZH, OFNP Options | Cable Color: | Yellow ,Aqua, Purple, Violet Or Customized |
| End-Face Type: | PC, UPC, APC | Standard: | Telcordia GR-326-Core |
| Highlight: | 30m Armored Fiber Optic Patch Cord,Single Mode Armored Fiber Patch Cord,Multi Mode Armoured Patch Cord |
||

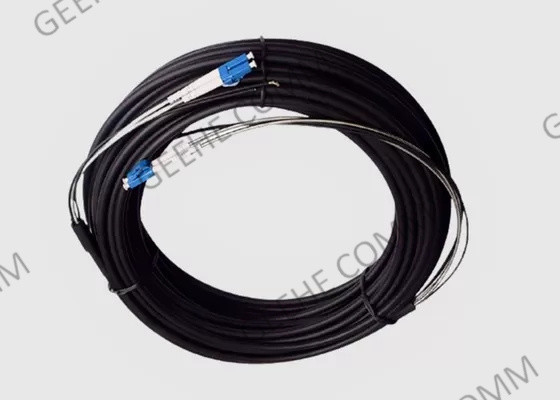

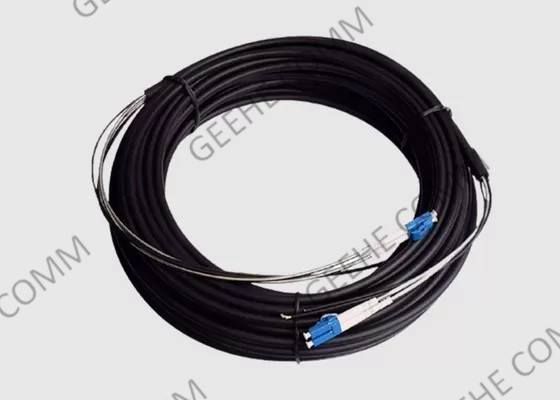

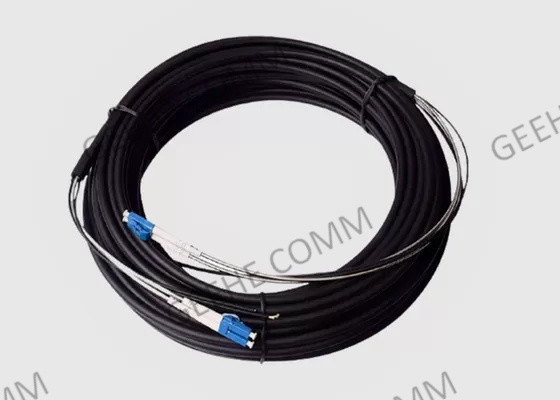

30M Outdoor Armored Fiber Optic Patch Cord Jumper With Duplex LC Connector
1. Brief Introduction:
Armored fiber patch cable uses rugged shell with aluminum armor and kevlar inside the jacket, and it is 10 times stronger than regular fiber patch cord. This will help make the armored fiber patch cord resistant of high tension and pressure. The armored patch cable has a 40% higher rated range of operating temperature, so it provides stable performance over a wide temperature range. This type of patch cable is specifically ideal for light to medium-duty indoor/outdoor applications.
Fiber-Mart supplies armored fiber optic patch cable, including 10G OM4/ OM3, 9/125, 50/125, 62.5/125 fiber types. The armored fiber optic patch cords can be with SC, ST, FC, LC, MU, SC/APC, ST/APC, FC/APC, LC/APC, E2000/APC, etc. types of terminations.
2. Single-Mode Fiber Optic Patch Cord Features:
-- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
-- Ferrule end-face: PC,UPC,APC
-- Core Type: Single-mode (SM: 9/125um):G652D,G657A
-- Multimode(MM: 50/125um,62.5/125um,OM3 or OM4)
-- Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
-- Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
-- Cable Length: 1, 2, 3 meters or customized
-- Sheath Type: PVC, LSZH, OFNR, OFNP, Plenum, Armored
3. Fiber Optic Patch Cord Applications:
> Local Area Network (LAN)
> Data communication network
> Telecommunication optical transmission network
> Optical access network(OAN)
> Active device termination
> Fiber optics data transmission
> Test Equipment and CATV
> Gigabit Ethernet
4. Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | FC/UPC,SC/UPC,LC/UPC,MU/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.25 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
SC To FC Fiber patch cord Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
5.Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
FA:FC/APC FC:FC/UPC FP:FC/PC | FA:FC/APC FC:FC/UPC FP:FC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
* EX:OFC-S-FA-FC-09-1-0.5
