Product Details:
|
| Model Name: | Optic Fiber Adapter | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Ferrule: | Zirconia/Ceramic, Metal | Housing: | Metal, Plastic |
| Housing Color: | Red, White, Black, Yellow Etc | Operation Wavelength: | 1310 Or 1550nm |
| Connector Type: | SC/APC,LC/UPC,FC/APC Etc | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Reduced Flange |
| Highlight: | OM3 Aqua Fiber Optic Cable Adapter,OM3 Aqua multimode fiber adapter |
||

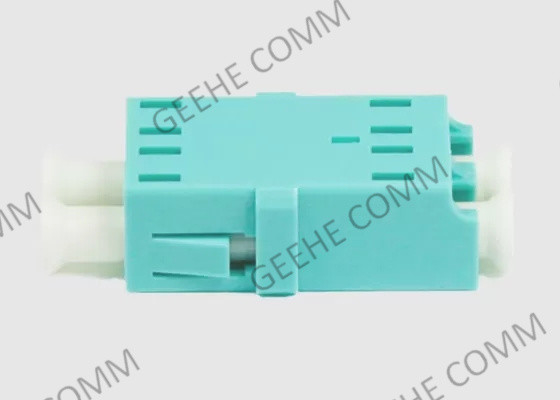

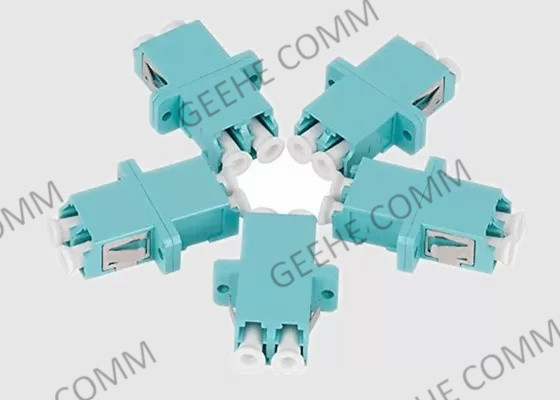

LC PC / UPC OM3 Aqua Multimode Optic Fiber Adapter Connector Without Flange
1. Product Overview:
Fiber optic adapters that are classified into standard adapters are the most common type of fiber optic adapters that are utilized in the market such as FC fiber optic adapter, SC fiber optic adapter, ST fiber optic adapter, and LC fiber optic adapter. Standard fiber optic adapters are available in a number of variations like simplex, duplex, and even quad duplex supporting a different number of optical fibers.
Geehe Optical fiber adapters (coupling pieces) are used to connect optical fiber patch cables with pigtails. Our adapters are high-quality products with a 100% ceramic ferrule which, through an adapter, can be equipped with various attenuators.
2. You Decide For Fiber Optic Features:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| parameter | SC, FC, ST, LC, MU, ST |
| End-face | APC/UPC/PC |
| Mode | Single-mode & multi-mode |
| Sleeve | Zirconia ceramic, phosphor bronze |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles) |
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
|
S: simplex D: duplex |
SC FC ST LC MU ST |
APC UPC PC |
Z: Zirconia ceramic, P: phosphor bronze |
W: with flange N: no flange |
W: with shutter N: no shutter |
|
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000 |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.
