Product Details:
|
| Model Name: | LC To LC Fiber Optic Cable Adapter | Mode Type: | Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing: | Metal, Plastic |
| Color: | Red, White, Black, Yellow Etc | Operation Wavelength: | 1310 Or 1550nm |
| Connector Type: | SC/APC(UPC),LC/UPC(UPC),FC/APC(UPC), Etc | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Flanges |
| Highlight: | LC To LC Fiber Optic Cable Adapter,Duplex Fiber Optic Cable Adapter,Fiber Optic Cable Adapter With Flanges |
||

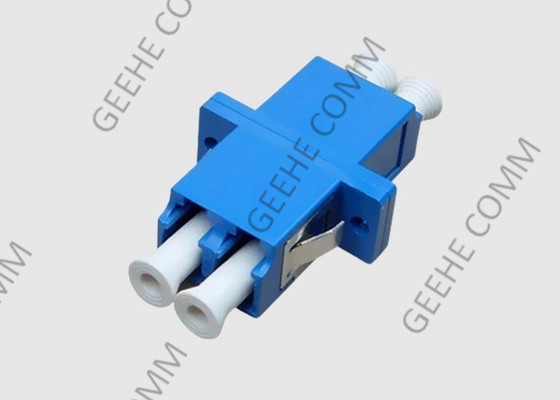

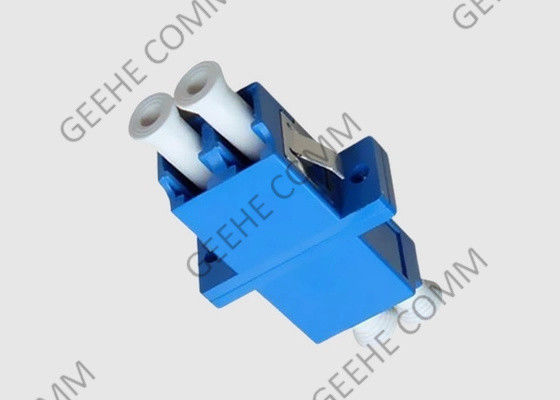

Blue Color Single Mode Duplex LC to LC Fiber Optic Cable Adapter With Flanges
1. Product Overview:
LC style optical fiber plugs and adapters offer all the benefits of SC and ST style connectors in an SFF (Small Form Factor), high-density design.
LC style connectors optic adapters are about half the size of SC style duplex connectors, providing significantly greater density.
LC optic adapters are simplex and duplex arrangements. The simplex connectors fiber optic adapters are suitable for termination to buffered fiber while maintaining proper bend radius requirements in tight spaces.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| parameter | LC |
| End-face | UPC/PC |
| Mode | Single-mode |
| Sleeve | Zirconia ceramic |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles) |
| Repeatability | ≤0.2dB |
| Service life | ＞1000 |
| Plug | 1-2.5 N |
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
|
S: simplex D: duplex |
SC FC ST LC MU ST |
APC UPC PC |
Z: Zirconia ceramic, P: phosphor bronze |
W: with flange N: no flange |
W: with shutter N: no shutter |
|
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000 |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.
