Product Details:
|
| Model Name: | LC/UPC Fiber Optic Adapter Duplex | Mode Type: | Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing: | Metal, Plastic |
| Color: | Red, White, Black, Yellow, Violet Etc | Operation Wavelength: | 1310 Or 1550nm |
| Connector Type: | SC/APC(UPC),LC/UPC(UPC),FC/APC(UPC), Etc | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Flanges |
| Highlight: | LC/UPC Fiber Optic Cable Adapter,MM OM4 Fiber Optic Cable Adapter,Violet Mikrolink Fiber Optic Cable Adapter |
||

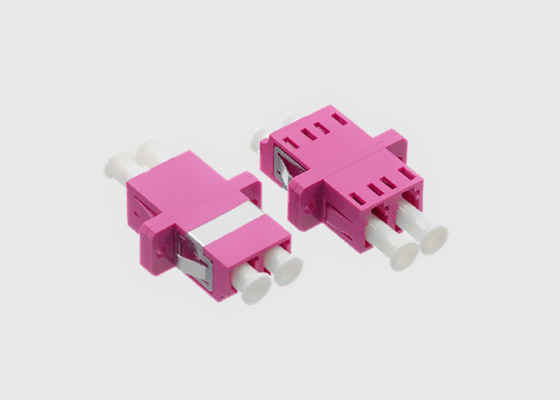

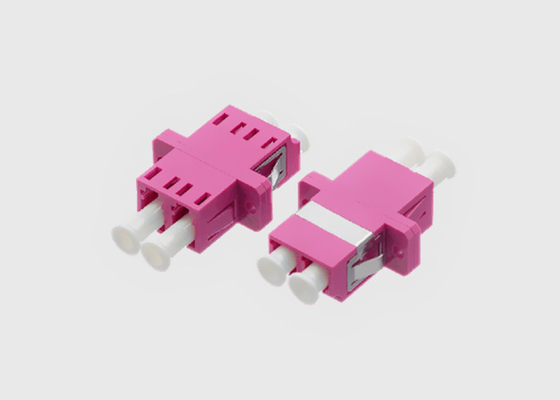

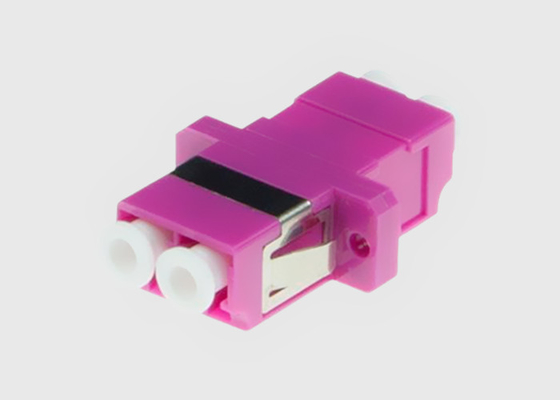

LC/UPC Fiber Optic Adapter Duplex MM OM4 Flanged Violet Mikrolink OM4 Fiber
1. Product Overview:
The LC OM4 Multimode adaptor is used to join two connectors together and is usually mounted in a fiber optic patch panel, fiber optic breakout box, and more recently in fiber optic wall outlets where a fast fiber link is required in an office environment. The adapters are suitable for fiber distribution units like splice panels and wall enclosures. Each fiber adapter fits securely into designated slots and is used to couple the fiber connections together securely inside of a fiber distribution unit.
The adaptors are supplied in Duplex or Quad versions.
The LC adaptor is a proven small form factor design, enabling a greater number of fibre ports where space is limited.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| parameter | LC |
| End-face | UPC/PC |
| Mode | Single-mode |
| Sleeve | Zirconia ceramic |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles) |
| Repeatability | ≤0.2dB |
| Service life | ＞1000 |
| Plug | 1-2.5 N |
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
|
S: simplex D: duplex |
SC FC ST LC MU ST |
APC UPC PC |
Z: Zirconia ceramic, P: phosphor bronze |
W: with flange N: no flange |
W: with shutter N: no shutter |
|
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000 |
6. More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.
