Product Details:
|
| Model Name: | LC Simplex Fiber Optic Adapter | Mode Type: | Single Mode |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing: | Metal, Plastic |
| Color: | Green, Blue, Beige, Etc | Operation Wavelength: | 1310 Or 1550nm |
| Connector Type: | SC/APC,LC/UPC,FC/APC Etc | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Reduced Flange |
| Highlight: | OS2 LC Simplex Adapter,1310nm LC Simplex Adapter,1310nm single mode adapter |
||

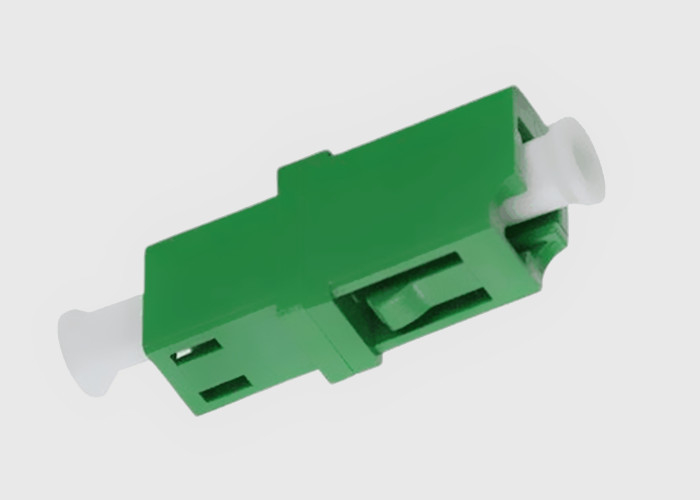

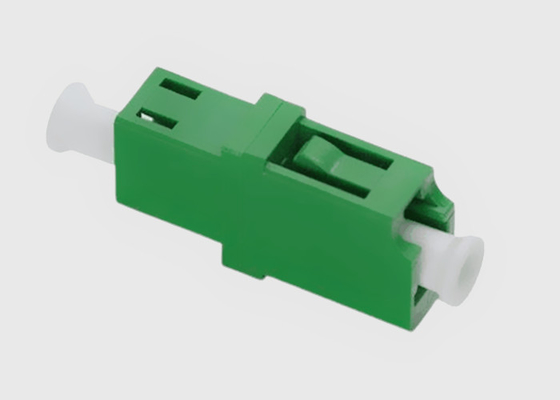

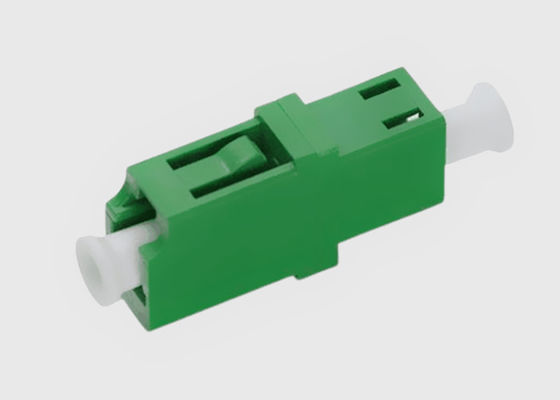

No Flange Single Mode 1310nm OS2 LC Simplex Fiber Optic Adapter
1. Product Overview:
The LC IS Adapter has been updated with a new trimmer and compact footprint.
The reduced height allows for high-density packaging and the choice of side or vertical spring latches provides custom installation options. The internal shutters provide maximum protection from lasers, dust, and other debris while protecting the ferrule.
Simplex and Duplex modes are available.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| parameter | SC, FC, ST, LC, MU, ST |
| End-face | APC/UPC/PC |
| Mode | Single-mode & multi-mode |
| Sleeve | Zirconia ceramic, phosphor bronze |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles) |
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
|
S: simplex D: duplex |
SC FC ST LC MU ST |
APC UPC PC |
Z: Zirconia ceramic, P: phosphor bronze |
W: with flange N: no flange |
W: with shutter N: no shutter |
|
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000 |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.
