Product Details:
|
| Model Name: | Optic Fiber Adapter | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Ferrule: | Zirconia/Ceramic, Metal | Housing: | Metal, Plastic |
| Color: | Red, White, Black, Yellow Etc | Operation Wavelength: | 1310 Or 1550nm |
| Connector Type: | SC/APC,LC/UPC,FC/APC Etc | Durability: | >1000 Mating Times |
| Repeatability: | ≤0.2dB | Operating Temperature: | -40~75℃ |
| Model: | Duplex | ||
| Highlight: | 1550nm SC To SC Duplex Coupler,1550nm sc to sc adapter,0.2dB SC To SC Duplex Coupler |
||

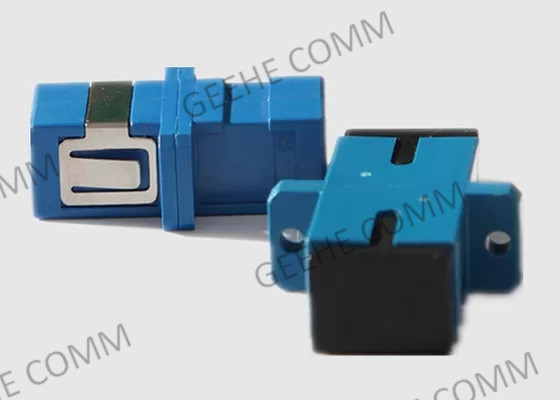

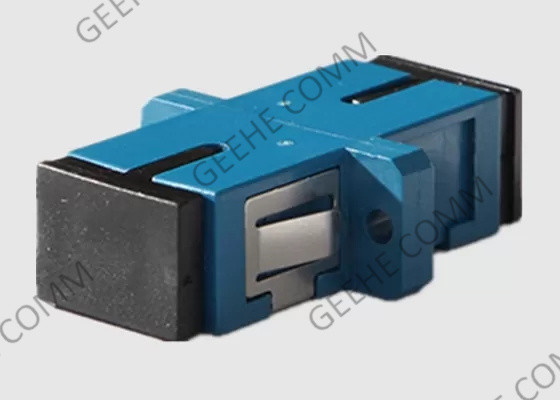

Metal Dust Cap SC To SC Multimode Duplex Fiber Optic Coupler Adapter
1.Product Overview:
Fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber-optic lines, normally used to connect two duplex fiber optic cables with standard SC (male) connectors.
SC adapter is the most used set for modern-day optical fiber systems. With the audible click locking mechanism and pull-proof design this connector provides a secure interconnect.
2. You Decide SC Optic Adapter Features and Benefits:
3. SC Optic AdapterApplications:
4. SC Optic Adapter Specification:
| parameter | SC, FC, ST, LC, MU, ST |
| End-face | APC/UPC/PC |
| Mode | Single mode & multi mode |
| Sleeve | Zirconia ceramic, phosphor bronze |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles) |
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
S: simplex D: duplex | SC FC ST LC MU ST | APC UPC PC | Z: Zirconia ceramic, P: phosphor bronze | W: with flange N: no flange | W: with shutter N: no shutter | |
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000 |
6. More Color Of Optic Adapters:
7.Wuhan Geehe COMM Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) High Capacity
FIve main Production lines for all passive optic products, the capacity for fiber optic adapter is 8,900 pcs/day, delivery time is faster than other suppliers.
