Product Details:
|
| Model Name: | Fiber Patch Cord Lc To Sc | Cable Diameter: | 2.0mm |
|---|---|---|---|
| Connector: | LC To UPC,SC To UPC | Ferrule: | Zicronia |
| Bend Radius: | 1.2″ Min | Fiber Jacket: | LSZH,OFNZ |
| End-face Type: | PC, UPC, APC | Fiber Type: | Singlemode 9/125μm |
| Impact Cycle: | 1500 | ||
| Highlight: | 2.0mm Fiber Optic Patch Cord,2.0mm lc to sc fiber patch cable,2.0mm sc to lc single mode patch cord |
||

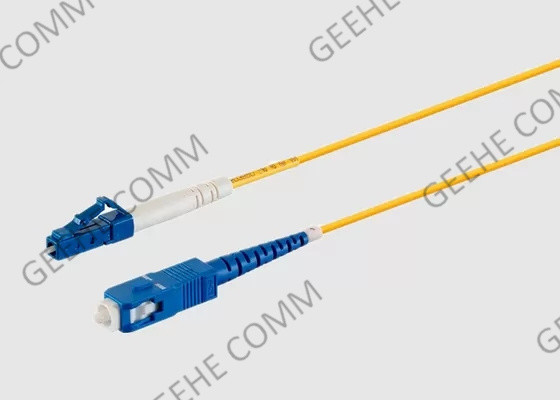

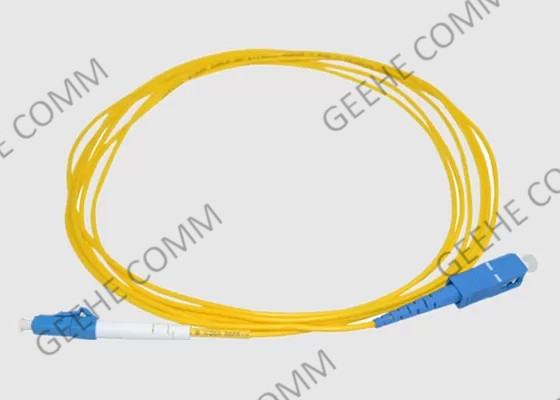

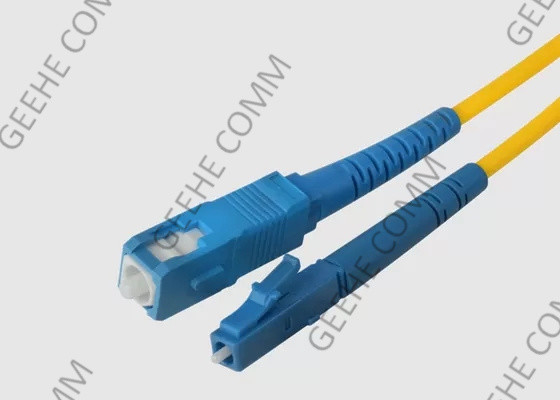

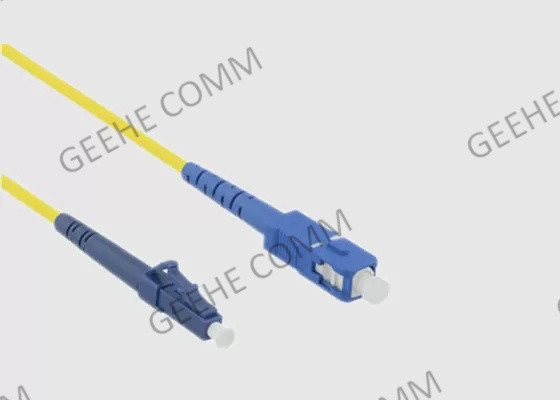

Single Mode PVC (OFNR) Jacket 1.8mm,2.0mm LC To SC Fiber Patch Cord
1.Fiber Patch Cord Basic Introduction:
LC to SC fiber optic patch cords by Geehe combine Simplex 9/125 single-mode fiber cable with machine-polished LC and SC connectors,the Simplex single-mode fiber is most commonly used in LAN applications.
Available in standard PVC (OFNR) jacket configurations. Please choose from our selection of LC-SC fiber patch cables below:
-- Fiber cable types: Simplex, duplex or multi-fiber assemblies
-- Jacket types: Riser, PVC, Plenum-rated, or LSZH (Low Smoke Zero Halogens)
-- Fiber length: 1m,2m,3m,4m,5m,10m,15m,20m,25m... Custom fiber optic cable length
-- Jacket color: Aqua, yellow, orange, white...customization
-- Various fiber types and wavelengths: typical 9/125 single-mode, 50/125 multimode, and 62.5/125 multimode
-- Fiber diameter: 0.9mm / 1.8mm / 2.0mm / 3.0mm outer diameter fiber optic cables
-- End face types: PC, UPC, and APC polish types
-- Packaging method: Each patch cord is packaged in a sealed plastic bag with cleaning instructions
2. Fiber Optic Patch Cord LC To SC Benefit & Features:
-- Tested to meet the Bellcore GR-326 requirement for single-mode
-- RoHS&ISO 14001:2015 compliant to protect the environment
-- Compatible with multimode fiber applications
-- High bandwidth supporting longer distances
-- Cost-effective solution for all customers
-- Low insertion loss and high return loss
-- Fast turnover for order and guarantee delivery time
-- Lifetime Warranty
3.Fiber Optic Patch Cord Applications:
Geehe offers fiber optic patch cables to connect network equipment in the data center, telecom room, test instrumentation, CATV, LAN, MAN, WAN, Test &Measurement.
4.Specification&Technology Parameters
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. Fiber patch cord LC to SC Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
6.LC to SC Patch Cord Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
LA:LC/APC LC:LC/UPC LP:LC/PC | LA:LC/APC LC:LC:UPC LP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
* EX:OFC-D-LA-LA-09-1-1.0
7.Geehe Service:
-- Standard and High-level OEM service for all customers, never a small business
-- Share the famous brand customers' successful cases
-- Help you build the whole projects and help to build your own brands
-- More than 800 skilled and steady workers can guarantee quality
-- Free Samples are supplied any time
