Product Details:
|
| Model Name: | LC To St Fiber Jumper Cable | Fiber Counts: | Duplex |
|---|---|---|---|
| Fiber Type: | Single Core/Double Core/Multimode Core | Sheath Material: | PVC/LSZH |
| Connectors: | ST,LC | Cable Length: | 0.5m/1m/1.5m Or Customized |
| Endface Of The Connector: | PC/Upc/APC | Diameter Of The Cable: | 0.9/2.0/3.0/4.8/7.0 |
| Fiber Color: | Yellow/orange/Aqua/Red Customerized | Impact Cycle: | 1500 |
| Highlight: | Multimode 1m LC To ST Fiber Patch Cable,Multimode LC To ST Fiber Patch Cable,Multimode 1m LC To ST Fiber Patch Cable |
||

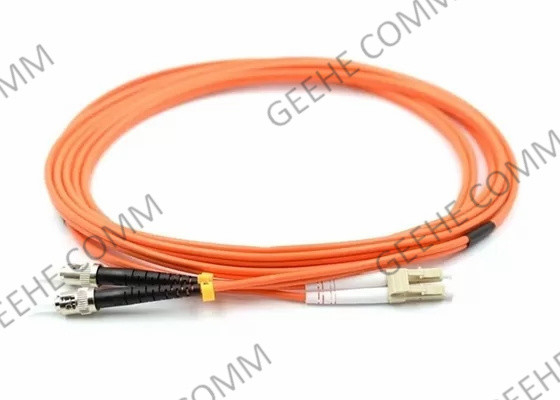

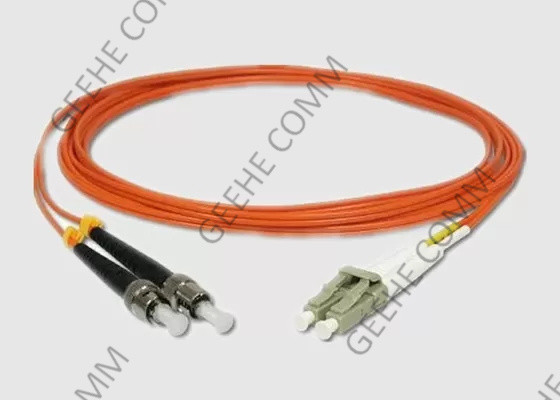

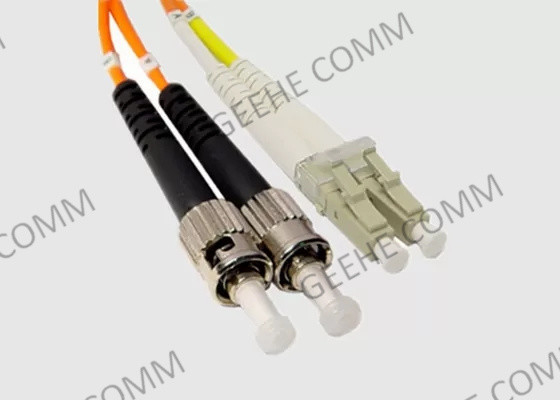

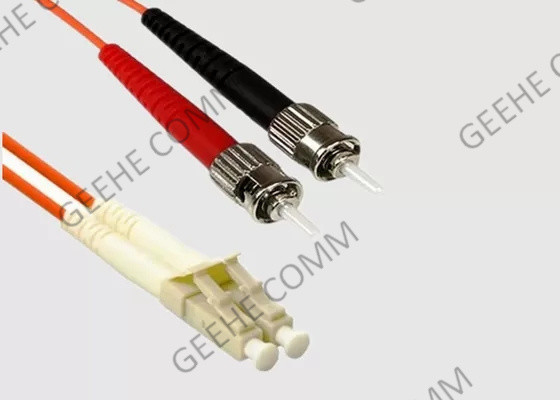

Multimode Duplex PVC jacket LC to ST OM1 Fiber Jumper Cable 1 meter
1. Fiber Patch Cord Basic Introduction:
The LC to ST fiber cables are all tested for 100% functionality and guaranteed compatible for outstanding network performance.
We offer patch cords, fiber jumpers, and fiber cables up to 50 meters in length. This particular cable is an LC to ST Multimode Duplex Fiber Optic Cable that's 1 meter long.
Geehe fibre patch cords can be made of similar outer diameter as the standard fibre patch cords,can be with different jacket colors and jacket types such as HDPE /OFNR/ LSZH and others.
2. Fiber Optic Patch Cord LC To ST Benefit & Features:
3. LC To ST Patch Cord Applications:
4. Specification&Technology Parameters
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 55 | ||||
| Min.Return Loss(APC) (dB) | 65 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. Fiber patch cord LC Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
* EX:OFC-D-LA-LA-09-1-1.0
6. More connectors to be matched
7. Why Geehe Comm?
