Product Details:
|
| Model Name: | Single Mode St To Sc Connector | Fiber Type: | Single Mode |
|---|---|---|---|
| Connector Type: | ST, SC | Polishing: | PC ,UPC |
| Jacket Material: | PVC/LSZH/OFNR | Length: | 1M/2M/3M...customize |
| Cable Dimensions: | 0.9mm/2.0mm/3.0mm | Cable Color: | Orange |
| Minimum Bending Radius: | 3.8cm | Samples: | Free |
| Highlight: | G652D ST to SC patch cord,LSZH ST to SC patch cord,2.0mm st sc fiber patch cable |
||

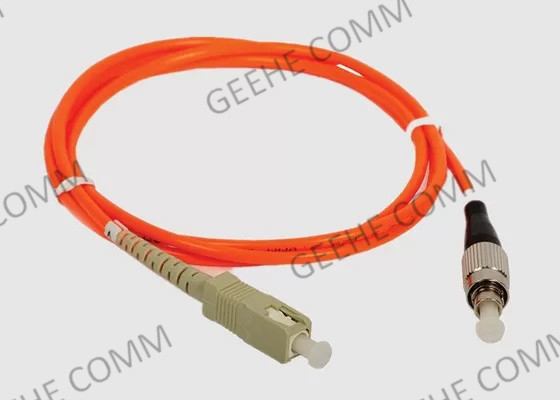

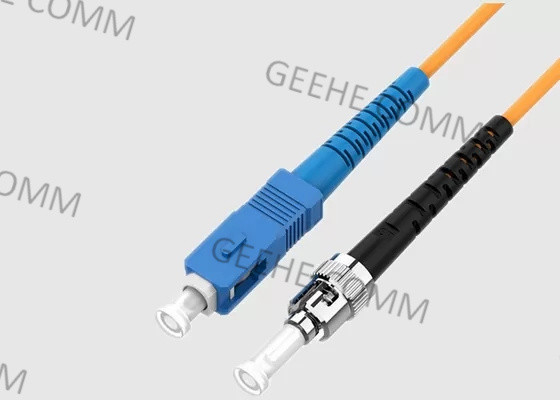

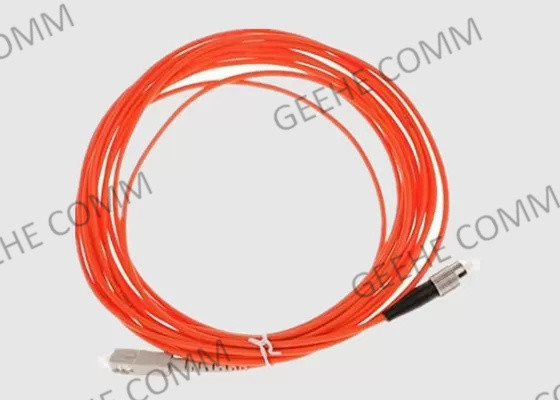

3M Patch G652D LSZH Single-Mode Simplex ST-SC Optical Fiber Cord
1.Fiber Patch Cord Basic Introduction:
This ST-SC patch cable is housed in an LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity, and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices, and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our Single-mode fiber simplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
2.Fiber Optic Patch Cord ST To SC Benefit& Features:
3.ST To SC Patch Cord Applications:
4.Specification&Technology Parameters
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. Fiber patch cord LC Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
* EX:OFC-D-LA-LA-09-1-1.0
6. Customized Fiber Optic Patchcord:
Single-Mode, 9/125 OS2, UPC to APC
Single-Mode, 9/125 OS2, APC to APC
Multimode, 62.5/125 OM1
Multimode, 50/125 OM2
Multimode, 50/125 10G OM3
