Product Details:
|
| Model Name: | Fiber Optic Patch Cord SC APC | Cable Diameter: | 0.9mm, 2.0mm, 3.0mm |
|---|---|---|---|
| Fiber Counts: | 2 Cores | Polishing: | UPC,APC,PC |
| Jacket Material: | PVC/LSZH/OFNR | Cable Length: | 1M,2M,3M...customize |
| Cable Dimensions: | 3.0mm | Jacket Color: | Yellow |
| Fiber Type: | Multimode 62.5/125 OM1 | ||
| Highlight: | 10M Duplex Fiber Optic Patch Cord,SC APC To SC UPC Fiber Optic Patch Cord,10M sc apc patch cord |
||

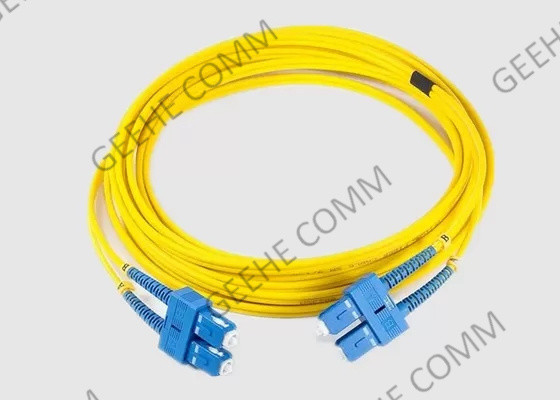

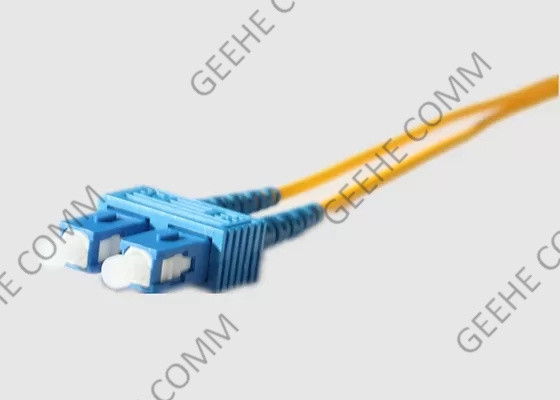

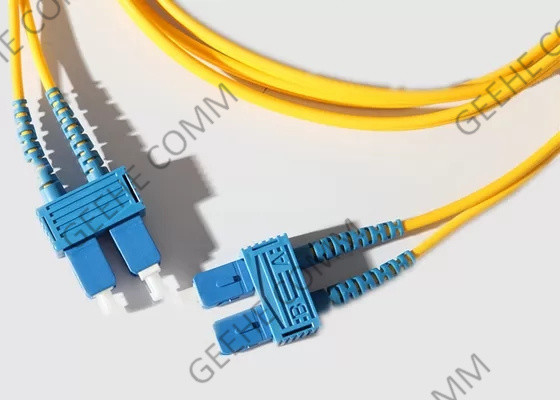

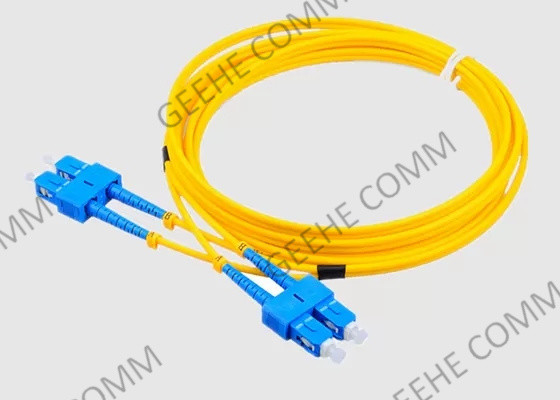

3.0mm PVC (OFNR) 10M Duplex Fiber Optic Patch Cord SC APC
1.Fiber Patch Cord Basic Introduction:
Duplex SC APC fiber optic patch cord is used to connect fiber optic equipment to equipment or patch panel to equipment. It comprises of a patch cable terminated with SC APC fiber optic connectors at both ends.
Cost-effective solution that provides high bandwidth and transmission rates over longer distances. The patented injection molding process provides each connection greater durability in resisting pulls, strains, and impacts from cabling install.
2. Fiber Optic Patch Cord SC To SC
Commerical Standards
3.DuplexSC To SC Patch Cord Application:
4.Specification&Technology Parameters
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. Fiber patch cord SC Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.2； MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
* EX:OFC-D-LA-LA-09-1-1.0
6. Fiber Optic Connectors are available
