Product Details:
|
| Model Name: | Fanout Optic Patch Cord | Cable Length: | 10M |
|---|---|---|---|
| Connectors: | LC To LC | Jacketing: | OFNR |
| Jack Color: | Yellow, Customerized | Ferrule End-face: | UPC |
| Cable Type: | 9/125, OM3, OM4 | Fiber Mode: | Singlemode Or Multimode |
| Wavelength: | 1310/1550nm | Geehe Service: | OEM&ODM |
| Highlight: | 1.8mm lc to lc fiber patch cord,1.8mm lc to lc patch cord,1.8mm 10m patch cord |
||

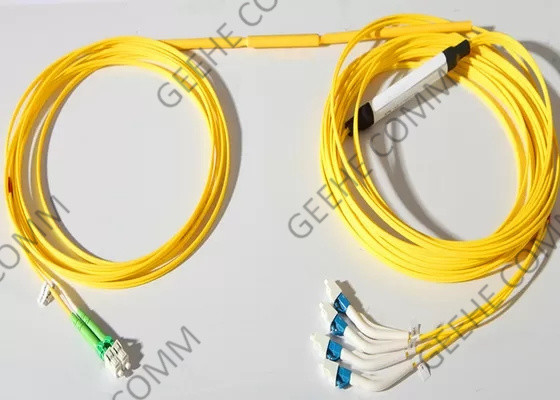

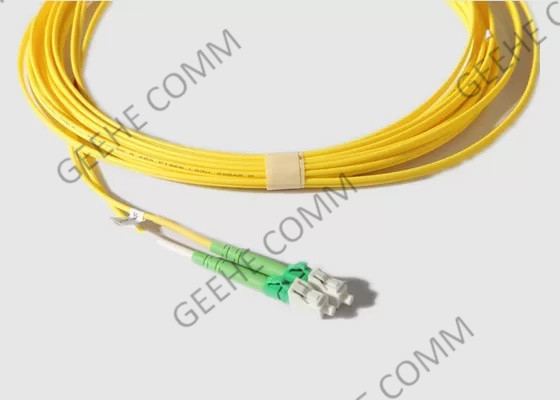

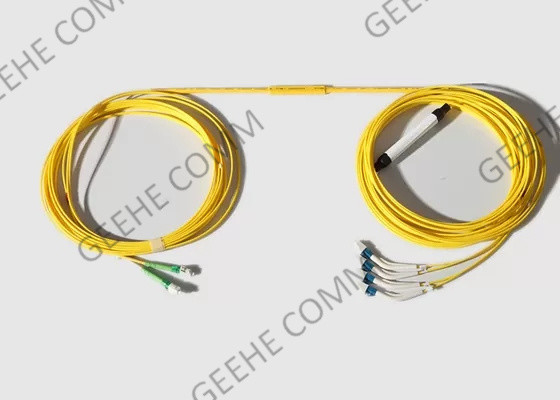

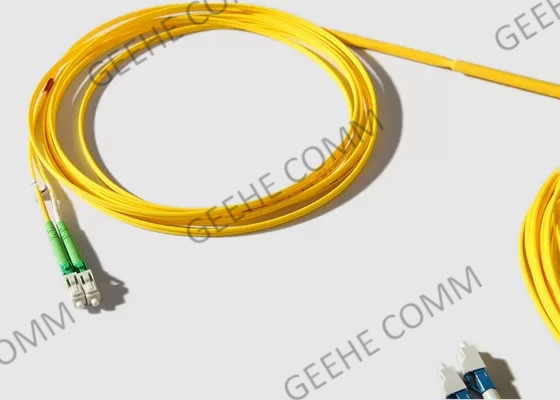

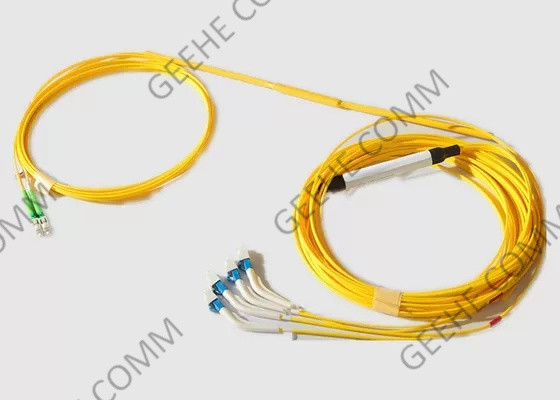

LC-LC Multi Mode 3.0mm And 1.8mm 12 Fibers Fanout Optic Patch Cord
Basic Introduction:
Pre-connectorized multi-fiber cable is becoming more popular for fiber installation projects. It is definitely an efficient and economical solution rather than on-site termination or splicing. With the Pulling Eye assembly feature, it's available for fast and safe installation. Just simply lay the cable and do patching.
Geehe's fan-out patch cord (Multi cable fan-out) is enormously valuable in speeding up the installation process, by eliminating the need for unnecessary splicing or terminations in the field.
The fan-out patch cord assemblies can be with various structures and connectors options: SC-SC, LC-SC, LC-LC, ST-ST, SC-ST, SC-FC, FC-FC, E2000-E2000, E2000-LC, and lots of other combinations are available.
Fan-Out Patch Cord Benefit & Features:
Fiber Optic Patch Cord Applications:
Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
LC Connector Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
LC Patch Cord Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
LA:LC/APC LC:LC/UPC LP:LC/PC | LA:LC/APC LC:LC:UPC LP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
* EX:OFC-D-LA-LA-09-1-1.0
Geehe Advantages:
Fast: Quick delivery thanks to a substantial stock of the most commonly used Pigtails & Patchcords.
Quality: Highest quality-standard thanks to the collaboration with internationally prestigious parties.
Complete: Pigtails and Patchcords are available in the customized form in combination with, for example, connectors, patch drawers, and ODF’s.
Competitive: The best quality for a competitive price.
