Product Details:
|
| Model Name: | Fiber Optic Patch Cord FC To ST | Sheath Material: | LSZH PVC |
|---|---|---|---|
| Cable Length: | 1m Or Customized | Number Of Fiber: | Simplex Duplex |
| Tensile Strength(N): | ≥55 | Cable Diameter: | 0.9mm, 2mm Or 3mm |
| Connector: | FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA | Jacket Material: | PVC,Riser (OFNR), Plenum (OFNP), LSZH |
| Jacket Color: | Orange | Service: | OEM&ODM |
| Sampes: | Free | ||
| Highlight: | 1m Multimode Fiber Optic Patch Cord,1m om3 fiber patch cord,1m 0.9mm st to fc fiber patch cable |
||

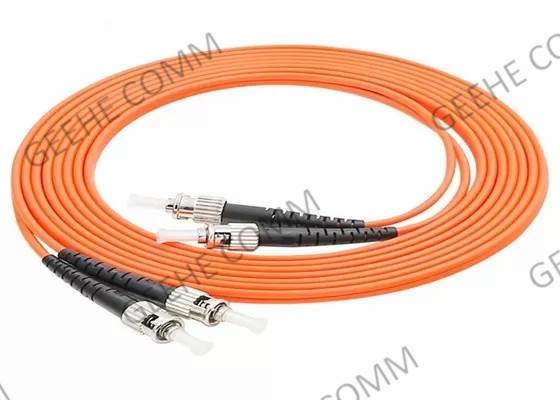

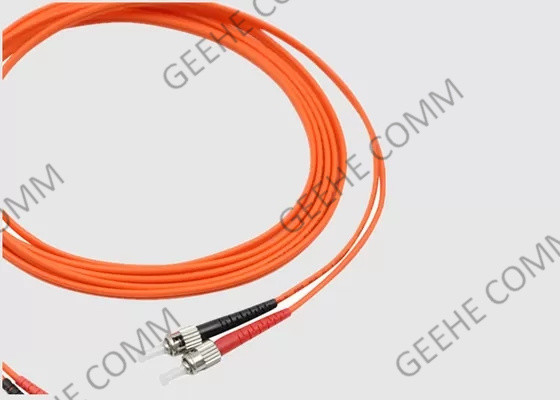

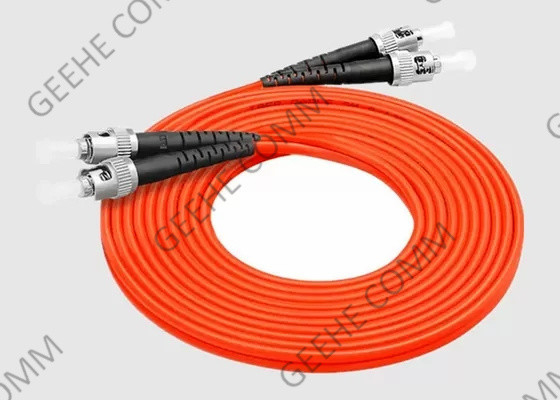

OM3 50/125 Orange Jacket Fiber Optic Patch Cord FC To ST Duplex Multi Mode Fiber
1. Basic Introduction:
Our fiber optic cables are available with various combinations of LC, SC, ST, FC, MTP/MPO, and MTRJ connectors. OM1 & OM2 Stock cables in 1 to 15-meter lengths. We also offer OM3 cables up to 30 meters and OM4 up to 100 meters. Singlemode and Multimode 1 to 50 Meter lengths.

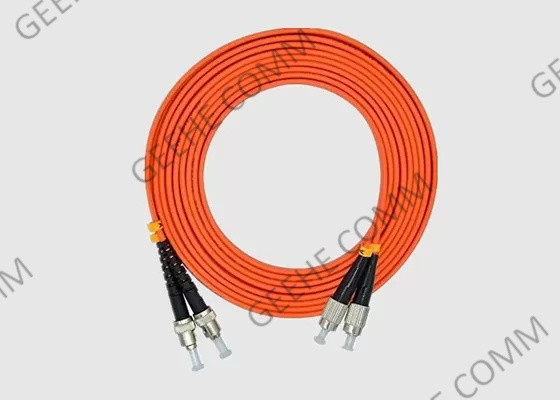

FC to ST Patchcord, 50/125um Multimode, Duplex, 3mm Cable, 3M, which is used to connect fiber optic equipment to equipment or patch panel to equipment.
2. FC To ST Patch Cord Benefit & Features:
3. Fiber Optic Patch Cord Applications:
4. Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 55 | ||||
| Min.Return Loss(APC) (dB) | 65 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. FC Connector Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
6. FC Patch Cord Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
FA:FC/APC FC:FC/UPC FP:FC/PC |
FA:FC/APC FC:FC/UPC FP:FC/PC |
09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
* EX: OFC-S-FA-FC-09-1-0.5
7.How to choose Fiber patch cords?
1)Fiber Cable Mode: Single Mode or Multimode
The mode of fiber patch cables indicates how light beams travel within the fiber. There are two fiber cable modes: single mode and multimode.
2)Number of Fiber Strands: Simplex or Duplex
According to the number of fiber strands, there are simplex and duplex fiber patch cord. As shown in Figure 2, simplex fiber patch cord contains one single strand of fiber with one simplex connector on each end. It can be linked with a pair of BiDi transceiver modules featuring with one port. Whereas duplex fiber patch cord consists of two strands of glass or plastic with one duplex connector (or considered as two simplex connectors). It is often linked with common transceivers or dual fiber BiDi transceivers.
3)Choose the Right Cable Jacket Type (PVC/LSZH/OFNP/Armored)
Usually, there are three cable jacket types: Polyvinyl Chloride (PVC), Low Smoke Zero Halogen (LSZH) and Optical Fiber Nonconductive Plenum (OFNP). You can see there features in figure below and choose the right one for your network.
4)Jacket Type: PVC or LSZH
PVC and LSZH are used to describe the common jacket material of fiber patch cord. Fiber patch cables covered with PVC jacket are flexible at normal installation temperatures. Compared with PVC patch cords, LSZH patch cords are more rigid and less flexible but they contain the flame retardant compound that doesn’t emit toxic fumes if it burns. PVC fiber optic patch cord is usually used for indoor applications such as horizontal runs from the wiring center. While LSZH cable is used in unventilated areas exposed to public, such as subways and tunnels and also used for rooms that are not easy to get out quickly.
Connector Type: LC, SC, ST or Others
