Product Details:
|
| Model Name: | Multimode Fiber Patch Cord | Fiber Connector: | SC To ST |
|---|---|---|---|
| Fiber Core: | Multi Mode,Single Mode | Color: | Orange,Customerized |
| Cable Diameter: | 0.9mm, 1.8mm,2.0mm, 3.0mm | Jacketing: | Riser Rated (OFNR) |
| Fiber Type: | Duplex | Length (Meters): | 3m |
| Highlight: | 2M Multimode Fiber Optic Patch Cord,0.9mm Multimode Fiber Optic Patch Cord,0.9mm st sc fiber patch cable |
||

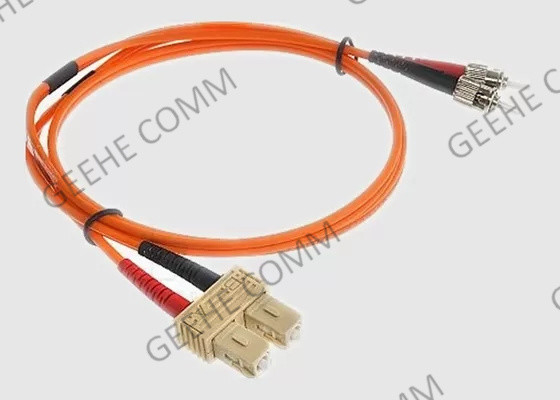

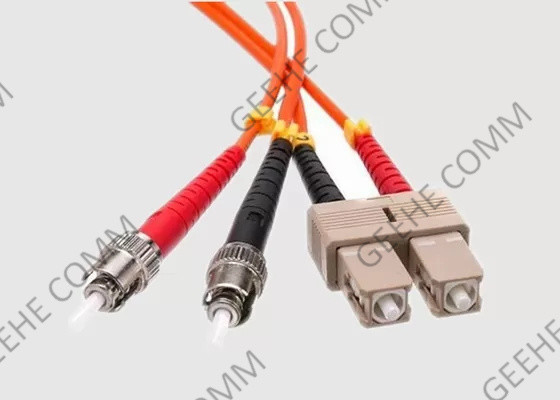

High Return 0.9mm Riser Rated (OFNR) 2M Duplex SC To ST Multimode Fiber Patch Cord
1.Basic Introduction:
SC to ST Fiber Optic Connector is a snap-in connector fiber also with a 2.5 mm ferrule that is widely used for it Is excellent performance. It Is a snap-in connector that latches with a simple push-pull motion. It is also available in a duplex configuration, the durable rubber boots protect against damage typical in busy data racks and each end is properly labeled for easy identification.
The cable has ST to SC connectors, a PVC jacket, and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications.
2. Patch Cord Benefit & Features:
3.Fiber Optic Patch Cord Applications:
Optical Fiber Communications, Video, LAN, CATV Systems
Optical Access Network
Fiber Optic Data Transmission
Data Centers
Local Area Network
Test Equipment
4.Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5.SC Connector Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3, MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
6. LC Connector Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SA:LC/APC SC:LC/UPC SP:LC/PC |
SA:LC/APC SC:LC/UPC SP:LC/PC |
09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
* EX: OFC-SC-SC-09-1-0.5
7. How to choose Fiber patch cords?
1) Fiber Cable Mode: Single Mode or Multimode
The mode of fiber patch cables indicates how light beams travel within the fiber. There are two fiber cable modes: single mode and multimode.
2) Number of Fiber Strands: Simplex or Duplex
According to the number of fiber strands, there are simplex and duplex fiber patch cord. As shown in Figure 2, simplex fiber patch cord contains one single strand of fiber with one simplex connector on each end. It can be linked with a pair of BiDi transceiver modules featuring with one port. Whereas duplex fiber patch cord consists of two strands of glass or plastic with one duplex connector (or considered as two simplex connectors). It is often linked with common transceivers or dual fiber BiDi transceivers.
3) Choose the Right Cable Jacket Type (PVC/LSZH/OFNP/Armored)
Usually, there are three cable jacket types: Polyvinyl Chloride (PVC), Low Smoke Zero Halogen (LSZH) and Optical Fiber Nonconductive Plenum (OFNP). You can see there features in figure below and choose the right one for your network.
4) Choose the Right Connector Polish Type (UPC/APC)
Since the loss of the APC connector is lower than UPC connectors, usually, the optical performance of APC connectors is better than UPC connectors. In the current market, the APC connectors are widely used in applications such as FTTx, passive optical network (PON) and wavelength-division multiplexing (WDM) that are more sensitive to return loss. But APC connector is usually expensive than UPC connector, so you should weigh the pros and cons. With those applications that call for high precision optical fiber signaling, APC should be the first consideration, but less sensitive digital systems will perform equally well using UPC. Usually, connector color of APC patch cable is green, and of UPC patch cable is blue.
