Product Details:
|
| Model Name: | Multimode Fiber Optic Patch Cable | Sheath Material: | OFNR Riser |
|---|---|---|---|
| Cable Length: | 5m Or Customerized | Propagation Mode: | Multi Mode,Single Mode |
| Tensile Strength(N): | ≥55 | Cable Diameter: | 0.9mm, 2mm Or 3mm |
| Connector: | ST To ST | End-Face Type: | UPC,PC,APC |
| Jacket Color: | Orange Or Customerized | Service: | OEM&ODM |
| Highlight: | 2.0MM Multimode Fiber Optic Patch Cable,5M Multimode Fiber Optic Patch Cable,OFNR Riser st st fiber patch cord |
||

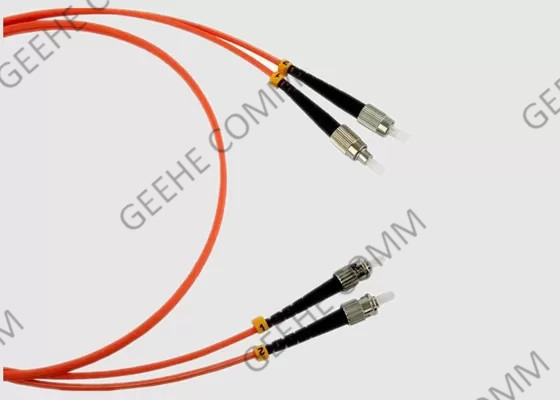

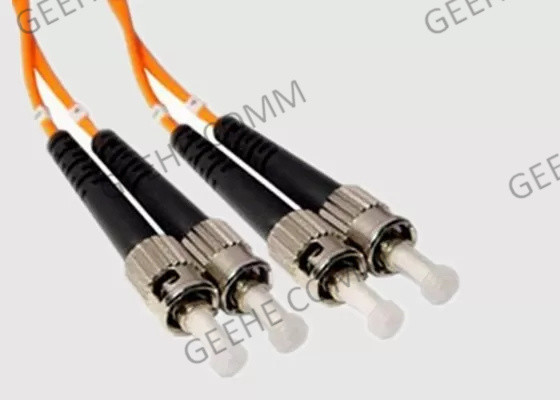

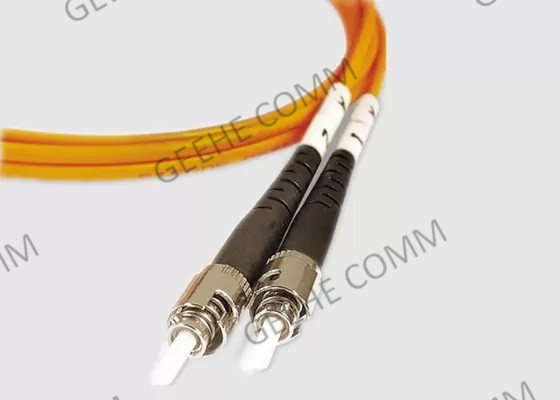

5M OM1 Duplex (OFNR Riser) 2.0MM ST-ST Multimode Fiber Optic Patch Cable
1. Basic Introduction:
Multimode SC to SC Fiber Patch Cable is terminated at both ends with ST (male) connectors, to provide the necessary connection between fiber networking devices for high-speed, long-distance networks.
This ST-ST patch cable is housed in a PVC (OFNR) flame retardant jacket, to ensure minimal smoke, toxicity, and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices, and schools, as well as residential settings where building codes are a consideration.
Backed by Lifetime Warranty, our ST-ST Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability and top-quality performance.
2. ST To ST Patch Cord Benefit & Features:
3. Fiber Optic Patch Cord Applications:
ST to ST fiber optic patch cord is suitable for the CATV network, telecommunication network, computer optical fiber network, and optical test equipment.
4. Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. ST Connector Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
6. Our Service:
Your patch cord selection is important to the type of fiber optic network you are working on. Some are ideal for single-mode, while others might be the right for a Multimode installation. Another factor to consider is the polished type when using single-mode cables.
While your patch cord choice is important, it is only one piece of the fiber-optic network to choose from. Take a look at what's available in these other key product categories:
7. Connector Type Abbreviations:
SC - a snap-in style connector. Known for its excellent performance. Referred to as Subscriber Connectors, Square Connectors, or Standard Connectors.
ST - a very popular choice connector for Multimode networks. Also referred to as Straight Tip connectors, they utilize a bayonet-style coupling type, enabling a simple twist-on and twist-off installation.
FC - was at one time the most popular single-mode connector type, but is now typically being replaced by SC and LC connectors. Also known as Ferrule Connectors, they utilize a screw-on coupling type to be used in high-vibration environments and are commonly used for datacom, telecom, measurement equipment, and single-mode lasers.
LC - a small form factor connector—measuring half the size of an SC connector. This is a popular choice for single-mode cables. Also referred to as Lucent Connectors, Little Connectors, or Local Connectors, these snap-in connectors are typically used for high-density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers.
