Product Details:
|
| Model Name: | MTRJ-MTRJ Fiber Optic Cable | Connector: | MTRJ To MTRJ |
|---|---|---|---|
| Propagation Mode: | Multi Mode | Sheath Colour: | Standard Color,or OEM |
| Fiber Type: | SM/MM/OM3 | Cable Diameter: | 0.9mm, 1.8mm,2.0mm, 3.0mm |
| Connector Type: | SC LC ST FC MTRJ/customized | Connector A: | MTRJ |
| Connector B: | MTRJ | Terminated/Unterminated: | Terminated |
| Highlight: | MTRJ-MTRJ Fiber Optic Patch Cord,OM1 Fiber Optic Patch Cord,1m mtrj patch cord |
||

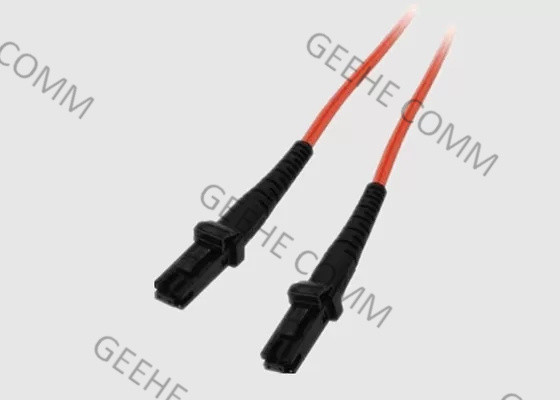

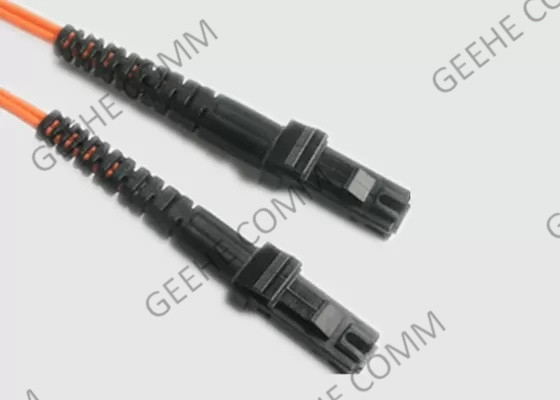

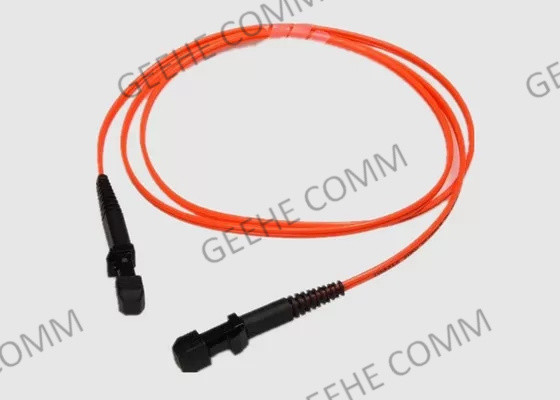

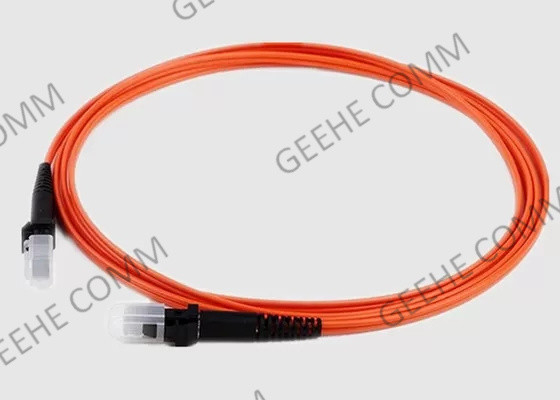

1m MTRJ-MTRJ 62.5/125 OM1 Dulpex Orange Mulit Mode mode PVC Fiber Optic Cable
1.Basic Introduction:
With MTRJ to MTRJ termination, this high-quality fiber optic patch cable is specifically designed for ethernet, multimedia, or communication applications.
The MTRJ connector features an easy-to-use latch-type design similar to the RJ connector on a Cat5 patch cable and is half the size of the SC connector. With its small footprint design, the MTRJ connector can increase the port density.
The patented injection molding process provides each connection greater durability in resisting pulls, strains, and impacts from cabling install.
Each cable is 100% optically inspected and tested for insertion loss before you receive it.
2.Patch Cord Benefit & Features:
3.Fiber Optic Patch Cord Applications:
4.Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5.LC to FC Connector Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
6. MTRJ Connector Ordering Information:
