Product Details:
|
| Model Name: | SC To FC Fiber Connector | Connector 1: | SC Male |
|---|---|---|---|
| Connector 2: | FC Male | Color/Jacketing: | Yellow Riser Rated OFNR |
| Length: | 10M | Strand Count: | Duplex (2-Strand) |
| Standards Met: | ITU-T G.652.D G.657.A | Core/Cladding Diameter: | Multi Mode, Single Mode |
| Highlight: | 10M SC To FC Connector,0.35dB SC To FC Connector,0.25dB SC To FC Connector |
||

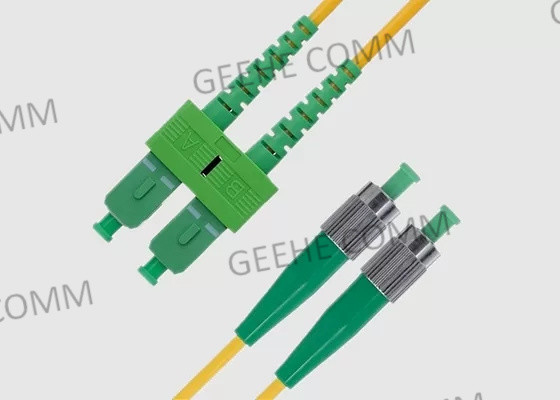

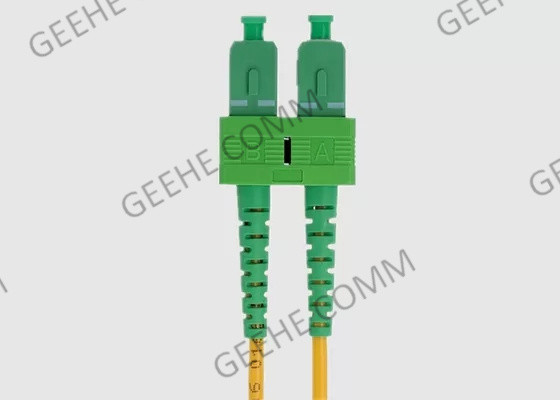

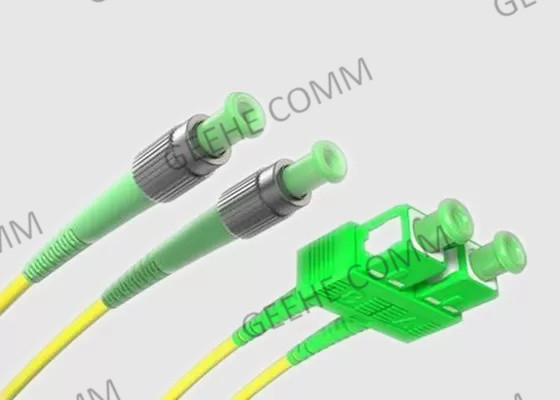

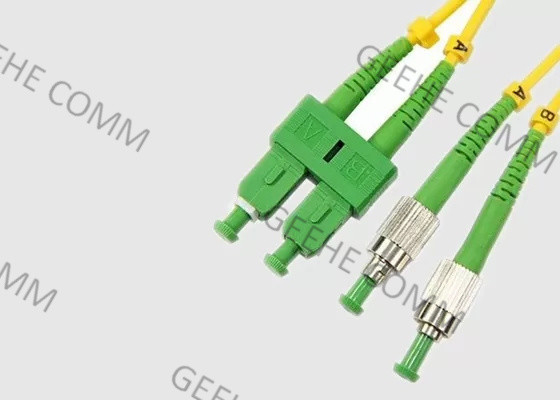

FTTH Bend Insensitive Multimode Fiber Patch Cable Yellow SC To FC Fiber Connector
1.Basic Introduction:
Our extensive selection of bend unfeeling fiber includes the Yellow 10 Meter SC to FC Multimode duplex fiber optic patch cable shown here. The fiber optic patch cables feature OFNR (Riser rated) jackets along with SC and FC style connectors.
These cables are great for high-speed trunks between servers, switches, storage, and fiber-optic switching equipment in busy datacenters. Custom lengths, connector combinations, and polishes are available.
Improve network reliability with our low-loss bend optimized fiber cables, which remove the hassle of searching for the bend that's bringing down your network.
2. SC To FC Patch Cord Benefit & Features:
3.Fiber Optic Patch Cord Applications:
4.Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | LC/UPC,FC/UPC,SC/UPC,MU/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550,980 or 1060,850,780 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5.SC&FC Connector Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
6.SC Patch Cord Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SA:SC/APC SC:SC/UPC SP:SC/PC |
SA:SC/APC SC:SC/UPC SP:SC/PC |
09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
* EX: OFC-S-SC-SC-09-1-0.5
7.FC Patch Cord Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
FA:FC/APC FC:FC/UPC FP:FC/PC |
FA:FC/APC FC:FC/UPC FP:FC/PC |
09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
EX: OFC-S-FA-FC-09-1-0.5
