Product Details:
|
| Model Name: | 2x8 PLC Fiber Splitter Without Connector | Cable Type: | 9/125um Single-mode |
|---|---|---|---|
| PLC Casing Type: | Micro PLC | Splitting Ratio: | 2x8 |
| Cable Diameter: | 125um | Fiber Length: | Customized Length1M, 1.5M, 2M, 2.5M, Custom |
| Fiber Type: | G657 Grade A Optical | Port Wavelength: | 1310-1550nm |
| Package: | Steel Tube, ABS Black Box | Length: | 1m Or 1.5m |
| Highlight: | 2x8 bare plc splitter,2x8 steel tube plc splitter,250μm Fiber Optic Cable Splitter |
||
Steel Tube Bare Fiber 250μm 2x8 PLC Fiber Splitter Without Connector
Basic Information :
2x8 PLC Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument, and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and needs a complete protection design on carrying box body and device.
Connectorized Bare PLC Splitters available pre-terminated with LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
Bare Fiber PLC Features&Benefit:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1 | ||||||||||

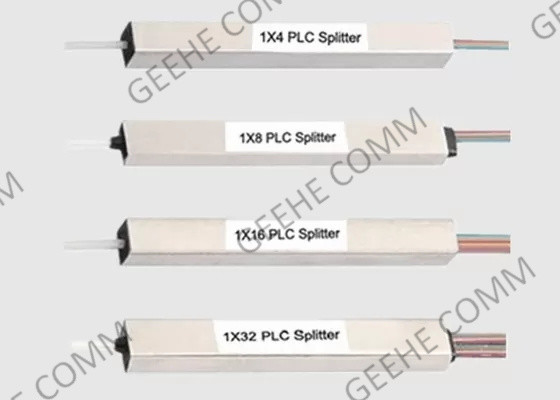

PLC Splitter Package Dimensions:
| WxHxD(mm) | Port | ||||
| 60x7x4 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 60x12x4 | 1x16 | 2x16 | |||
| 80x12x6 | 1x32 | 2x32 | |||
| 100x40x6 | 1x64 | ||||
Ordering Information:
| PLC | AAA | B | CC | D | EE | FF | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | Input Connector | Output Connector |
