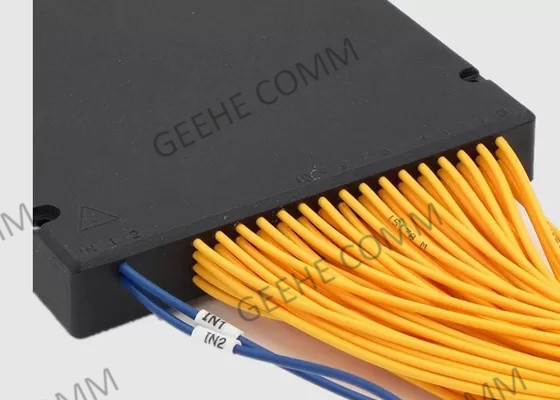

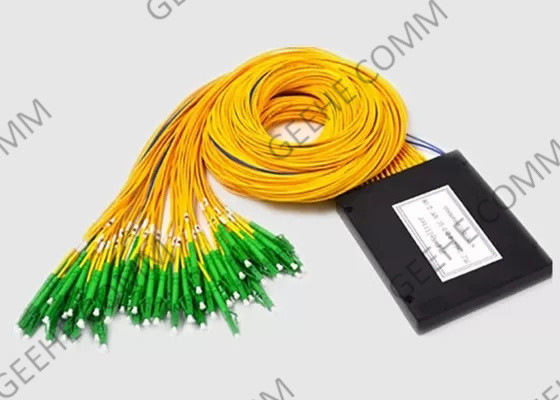

Singlemode 2.0mm 2×64 PLC Passive Fiber Optic Cable Splitter

Singlemode 2.0mm 2×64 PLC Passive Fiber Optic Cable Splitter
Singlemode 2.0mm 2×64 PLC Passive Fiber Optic Cable Splitter Singlemode 2.0mm 2×64 PLC Passive Fiber Optic Cable Splitter Singlemode 2.0mm 2×64 PLC Passive Fiber Optic Cable Splitter

Large Image :  Singlemode 2.0mm 2×64 PLC Passive Fiber Optic Cable Splitter

Product Details:
Place of Origin: Hubei,China
Brand Name: Geehe or OEM
Certification: ISO9001:2015,ISO 14001,UL
Model Number: GH-PLC-2×64
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiation
Packaging Details: Plastic box per pc with Pressure defense sponge, outer carton
Delivery Time: 3-5 working days after confirm order
Payment Terms: T/T,L/C,, Western Union, , D/A
Supply Ability: 3,800 Pcs/day

Singlemode 2.0mm 2×64 PLC Passive Fiber Optic Cable Splitter

Description
Model Name: 2×64 PLC Passive Optical Splitter Package Style: ABS Module
Configuration Type: 2×64 Fiber Type: G652D, G657A1, G657A2 Fiber
Connector Type: SC/APC Input/Output Fiber Diameter: 2.0mm
Input/Output Fiber Length: 1.5m Split Ratio: 50/50 Split (Even)
Port Wavelength: 1260 - 1650nm Optical Fiber Markings: Input - White, Output - Gray, White, Red, Black
Highlight:

PLC Passive Optical Splitter

,

2.0mm Passive Optical Splitter

,

2.0mm 2×64 fiber plc splitter



SC/APC Splice/Pigtailed ABS Module PLC Fiber Optic Splitter 1x32







Basic Information:



Geehe's PLC splitters feature low insertion loss, good channel-to-channel uniformity, and low PDL over the 1260 to 1650 nm wavelength range. For maximum network robustness and minimum maintenance requirements, these splitters are designed to operate over a wide temperature range suitable for outside plant installation. Service operators can extend service to customers taking advantage of passive optical networks requiring anywhere from 1 x 2 to 1 x 64,2×64 splits.



All splitters are manufactured using a very simple process that produces reliable, low-cost devices. Splitters can be fabricated in custom fiber lengths and with any type of connector, the splitter has a wide wavelength range and offers a great channel to channel uniformity.











ABS Module PLC Features& Benefits:



  1. Different combinations of coupling ratio
  2. Low crosstalk & excess loss 3 High optical return loss
  3. Available in dual-wavelength operation
  4. Excellent Environmental & Mechanical Stability
  5. Low insertion loss and its uniformity within the whole wavelength range between 1260 and 1650 nm.
  6. Qualified Under Telcordia GR-1221 and GR-1209

Application&Standard:



  1. Long-Haul Tele/Data Communications
  2. Fiber Optic Equipment and Systems
  3. CATV Systems
  4. Local Area Network, PON, and FTTH
  5. Fiber Sensors









Specification& parameters


Parameter 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating Wavelength(nm) 1260~1650
Port Wavelength Range (nm) 1310 ±20,1490 ±10 and 1550 ±20
Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.5 0.8 1 1.2 1.8 1.2 1.5 1.8 2
PDL @ 1310/1550 nm (dB) ≤0.3
Return Loss@ 1310/1551 nm (dB) ≤-55
Input Power (mW) 250max
Operating Temperature () -40~+85
Storage Temperature () -40~+85
Fiber Type

Corning G657A1






ABS Package Dimensions:

W×H×L (mm) Port
100x80x10 1x4 1x8 2x4 2x8
120x80x18 1x16 1x32 2x16 2x32
140x114x18 1x32 2x32 1x64





Ordering Information:



PLC- AAA- B- CC- D- EE FF- GG
  104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 2=2.0mm jacket
3=3.0mm jacket
05=0.5m 10=1.0m 15=1.5m 20=2.5m 2=2.0mm jacket
3=3.0mm jacket
05=0.5m 10=1.0m 15=1.5m 20=2.5m SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector
Configuration Input Fiber Type Input Fiber Length Output Fiber Length Output Fiber Length Input connector Output Connector





 2×64 ABS PLC Splitter Package:





Singlemode 2.0mm 2×64 PLC Passive Fiber Optic Cable Splitter 0
