Product Details:
|
| Model Name: | 1 × 20 PLC Fiber Optic Splitter | Package Style: | ABS Module |
|---|---|---|---|
| Configuration Type: | 1×20 | Fiber Type: | G652D, G657A1, G657A2 Fiber |

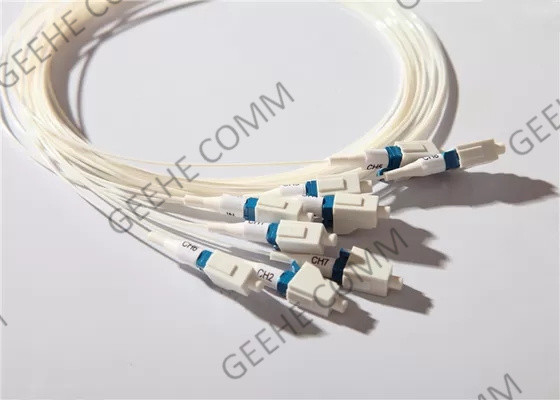

| Connector Type: | SC/APC,SC/UPC,LC FC ST | Fiber Diameter: | 0.9mm |
| Fiber Length: | 1M Or 1.5m | Split Ratio: | 50/50 Split (Even) |
| Port Wavelength: | 1260 - 1650nm | Optical Fiber Color: | Input - White, Output - Gray, White, Red, Black |
| Highlight: | 0.9mm PLC Fiber Optic Splitter,0.9mm single mode fiber splitter,1×20 PLC fiber optic splitter |
||

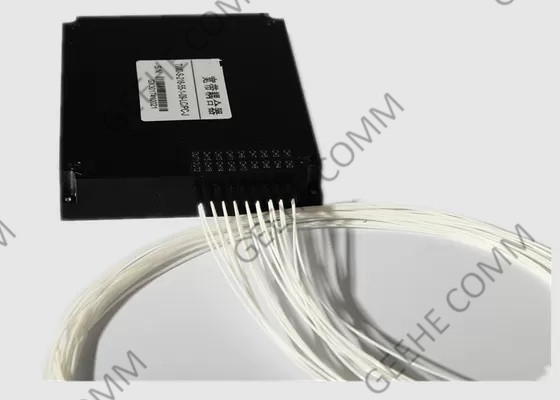

Single Mode 1 × 20 PLC Fiber Optic Splitter ABS Package With High Reliability
Basic Information:
PLC Splitters is mainly used for the distribution of optical signals or combine optical signals. The optical signals distributed by PLC splitter are grounded on the planar lightwave circuit technology. The advantage of PLC splitter is that it provides a light distribution solution for low cost with higher reliability and form factor.
Geehe provides four appearances of PLC Splitter products to meet the needs of a variety of Applications of engineering design. Our products meet or exceed Telcordia GR-1209-CORE and GR-1221-CORE reliability qualification requirements.
ABS Module PLC Features& Benefits:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type |
Corning G657A1 |
||||||||||
ABS Package Dimensions:
| W×H×L (mm) | Port | ||||
| 100x80x10 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 120x80x18 | 1x16 | 1x32 | 2x16 | 2x32 | |
| 140x114x18 | 1x32 | 2x32 | 1x64 | ||
Ordering Information:
| PLC- | AAA- | B- | CC- | D- | EE | FF- | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber Length | Input connector | Output Connector |
