Product Details:
|
| Model Name: | 1X8 Fiber Optic PLC Splitter | Connector Types: | SC/UPC, SC/APC, LC/UPC, LC/APC |
|---|---|---|---|
| Fusion Capacity: | 8 Cores | Splitting Ratio: | 1x2, 1x4, 1x8, 1x16, 1x32, 1x64,2x2, 2x4, 2x8, 2x16, 2x32, 2x36 |
| Cable Diameter: | 250um | Color Port: | 2 In 8 Out |
| Fiber Length: | Customized Length1M, 1.5M, 2M, 2.5M, Custom | Fiber Type: | G657 Grade A Optical |
| Port Wavelength: | 1310-1550nm | Package: | Steel Tube, ABS Black Box |
| Highlight: | 1X8 Fiber Optic Plc Splitter,8 Cores 1X8 Fiber Splitter,8 Cores 1x8 plc splitter |
||

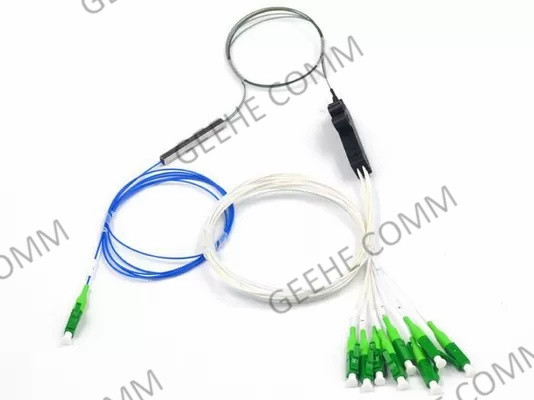

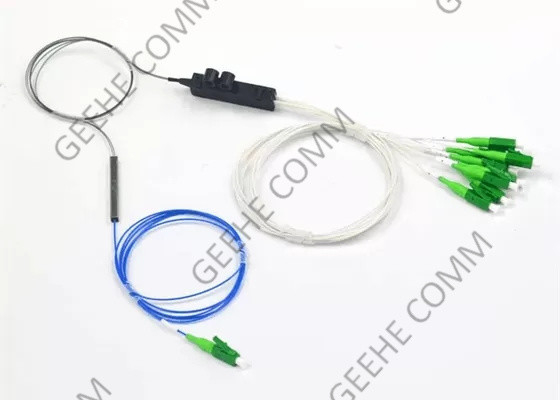

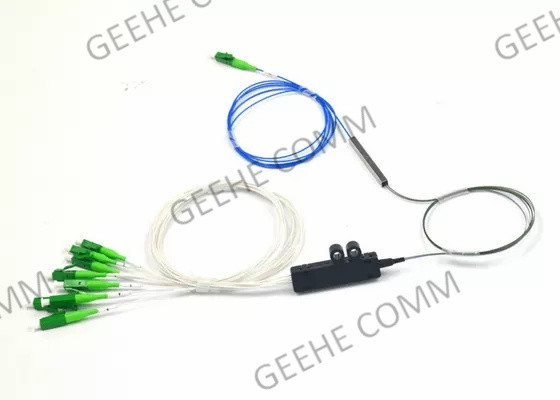

1X8 Fiber Optic PLC Splitter With Fan-Out Kits With LC/APC Connectors
Quick Details:

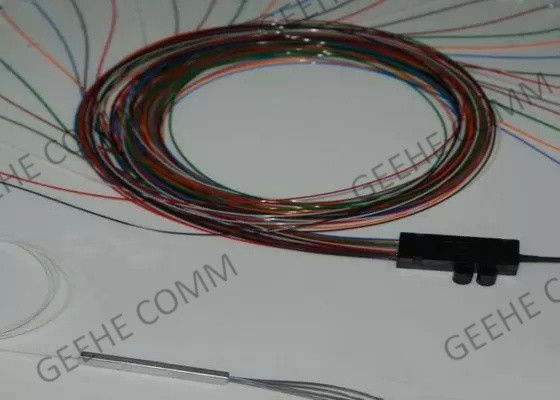

PLC splitter with fan-out is mainly used for 0.9mm optical fiber where the ribbon fiber can be converted to 0.9mm optical fiber through fan-out, Fiber adapters can be provided both for the input and output ends of this kind of splitters so that they can be used directly to meet the low demand on the size of the splitter, for instance, all kinds of precision splitter insertion box and splitter wall-mounted cabinets.
Geehe provides a various of 1xN and 2xN PLC fanout splitters, including including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 with fanout type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 with fanout type PLC splitters.
PLC Features:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1 | ||||||||||
Fan Out PLC Splitter Package Dimensions:
| WxHxD(mm) | Port | ||||
| 40x4x4 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 50x7x4 | 1x16 | 1x32 | |||
| 60x7x4 | 1x32 | 2x32 | |||
| 60x12x4 | 1x64 | ||||
Ordering Information:
| PLC | AAA | B | CC | D | EE | FF | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | Input Connector | Output Connector |
