Product Details:
|
| Model Name: | SC/APC Optical Splitter 2 In Out | Connector Types: | SC/UPC, SC/APC, LC/UPC, LC/APC |
|---|---|---|---|
| Fiber Modes: | SM MM | Splitting Ratio: | 1×N,2×N |
| Cable Diameter: | 250um | Color: | Yellow,Orange,etc |
| Fiber Length: | Customized Length1M, 1.5M, 2M, 2.5M, Custom | Fiber Type: | G657 Grade A Optical |
| Port Wavelength: | 633, 780, 850, 1310 And 1550 Nm Wavelengths | Package: | Steel Tube, ABS Black Box |
| Highlight: | 1.5M sc apc splitter,1.5M blockless plc splitter,SC/APC blockless plc splitter |
||

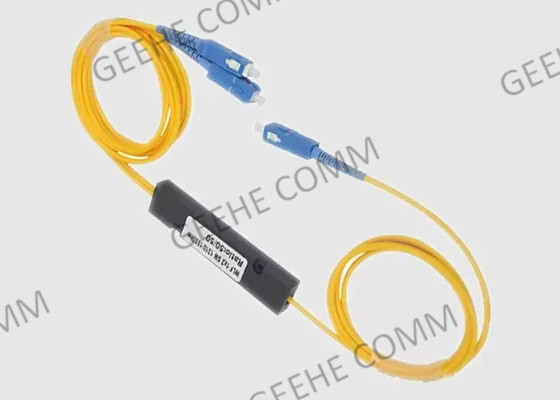

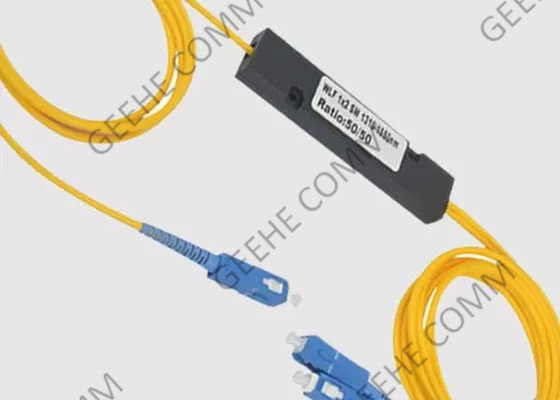

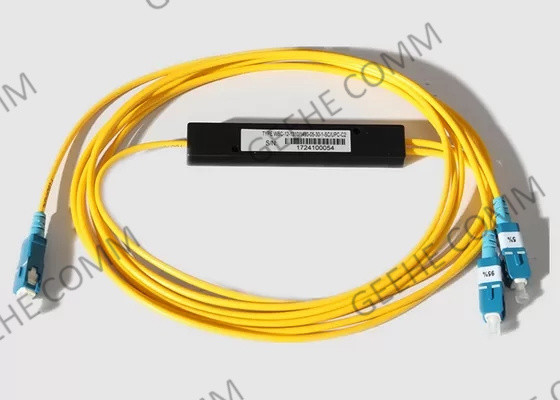

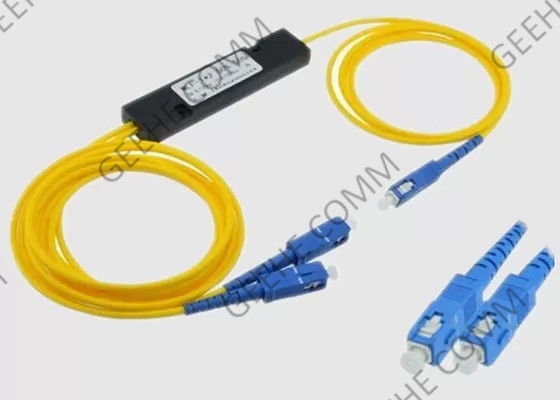

Outdoor 1×N 2×N Steel Tube 60/40 Split SC/APC Optical Splitter 2 In Out
Basic Information:
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly, while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Fiberstore PLC splitters offer superior optical performance, high stability, and high reliability to meet various application requirements.
Geehe provides a various of 1xN and 2xN PLC blockless splitters, including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 blockless fiber type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 blockless fiber type PLC splitters.
PLC Features:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1 | ||||||||||
Mini PLC Splitter Package Dimensions:
| WxHxD(mm) | Port | ||||
| 60x4x4 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 60x12x4 | 1x16 | 2x16 | |||
| 80x12x6 | 1x32 | 2x32 | |||
| 100x40x6 | 1x64 | ||||
Ordering Information:
| PLC | AAA | B | CC | D | EE | FF | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | Input Connector | Output Connector |
