Product Details:
|
| Model Name: | 1x16 PLC Fiber Splitter | Connector Types: | SC/UPC, SC/APC, LC/UPC, LC/APC |
|---|---|---|---|
| Fiber Modes: | Single Mode,Multi Mode | Splitting Ratio: | 1x2, 1x4, 1x8, 1x16, 1x32, 1x64,2x2, 2x4, 2x8, 2x16, 2x32, 2x36 |
| Cable Diameter: | 250um | Color: | White And Colorful |
| Fiber Length: | Customized Length1M, 1.5M, 2M, 2.5M, Custom | Fiber Type: | G.657A Fiber |
| Port Wavelength: | 1310-1550nm | Package: | Steel Tube, ABS Black Box |
| Highlight: | Blockless 1x16 Optical Splitter,SC/ APC 1x16 Optical Splitter,250um 1x16 Optical Splitter |
||

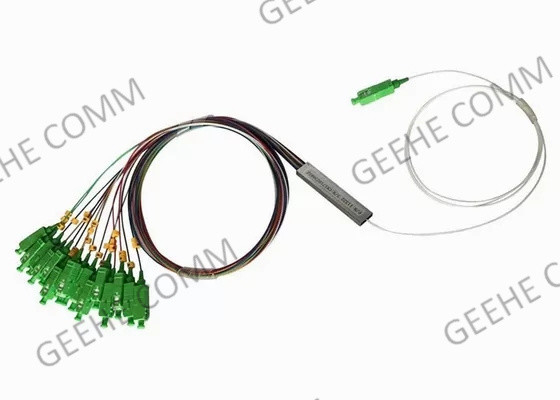

Blockless Splitter Mini Module 1x16 PLC Fiber Splitter 1x8 WIth SC/ APC
Quick Details:

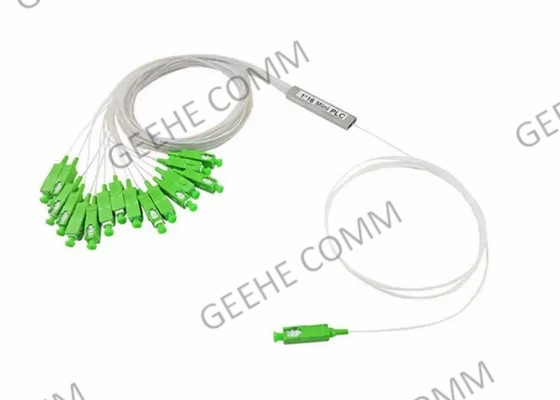

Mini PLC splitter 1×16 has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connections and distribution boxes or network cabinets.
Geehe Fiber splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x32,1x64,2×4,2×8,2×16, and 2×32 configurations with single-mode or multimode fiber, we offer very low insertion loss, low polarization dependence, well-controlled uniformity as well as excellent environmental stability.
Mini PLC 1×16 Features:
Blockless Type PLC Splitter Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1 | ||||||||||
Mini PLC Splitter Package Dimensions:
| WxHxD(mm) | Port | ||||
| 60x4x4 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 60x12x4 | 1x16 | 2x16 | |||
| 80x12x6 | 1x32 | 2x32 | |||
| 100x40x6 | 1x64 | ||||
Ordering Information:
| PLC | AAA | B | CC | D | EE | FF | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | Input Connector | Output Connector |
