Product Details:
|
| Model Name: | PLC Fiber Optic Splitter 1×64 | Configuration Type: | 1×64 |
|---|---|---|---|
| Package Style: | Steel Tube, Bare Fiber | Fiber Diameter: | 250um |
| Fiber Type: | Singlemode G.657A1 | Fiber Length: | Customized Length1M, 1.5M, 2M, 2.5M, Custom |
| Low Insertion Loss: | ≤ 4.2dB | Port Wavelength: | 1260 - 1650nm |
| Input/Output Fiber Length: | 1.5m | Split Ratio: | 50/50 |
| Highlight: | 250μM Fiber Optic Cable Splitter,1×64 bare plc splitter,250μM PLC fiber optic splitter |
||

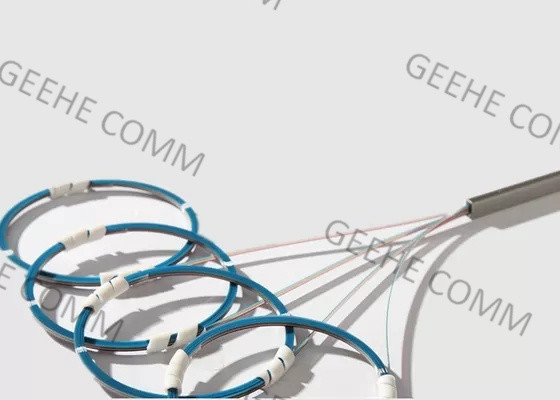

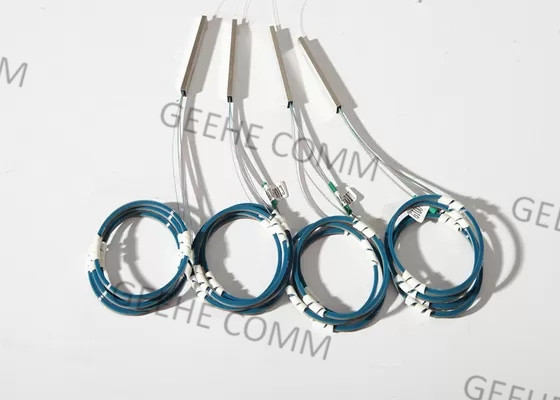

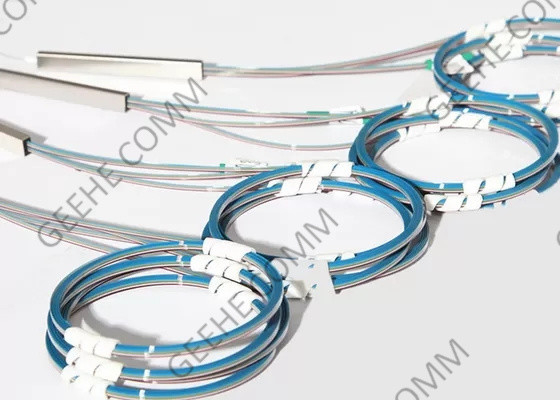

No Connector Steel Tube Bare Fiber 250μm PLC Fiber Optic Splitter 1×64
Basic Information:
1×64 Planar lightwave circuit ( PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations,and usually they are placed in the central office or in one of the distribution points (outdoor or indoor).
Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument, and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and needs a complete protection design on carrying box body and device.
Blockless PLC Features& Benefits:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1 |
||||||||||
1×32 Splitter Package Dimensions:
| 40x4x4 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 50x7x4 | 1x16 | 2x16 | |||
| 60x7x6 | 1x32 | 2x32 | |||
| 60x12x4 | 1x64 | ||||
Ordering Information:
| PLC | AAA | O | CC | 0 | EE |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 0=250um ribbon | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | |
Wuhan Geehe Serivce:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Excellent Quality Chips
Loss of light is not sensitive for wavelength, and it can meet the transmission needs of different wavelengths, imported from the USA
3) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
4) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
5) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
6) Simple and Easy Connection
Bare PLC splitter can be easily installed in fiber splice closure or fiber splitter distribution box for space-saving
