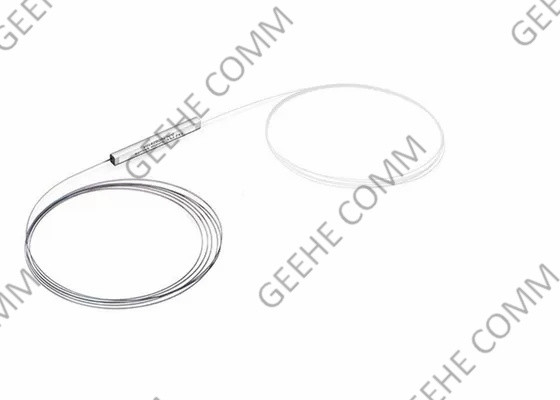

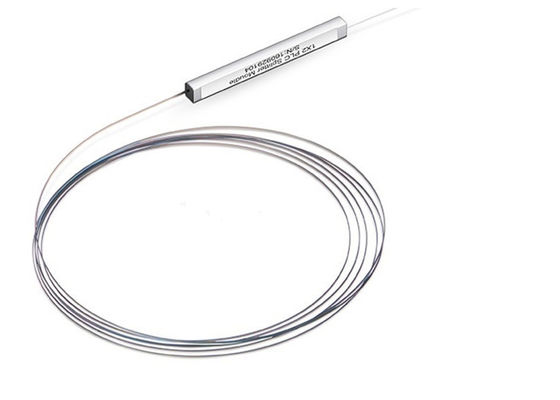

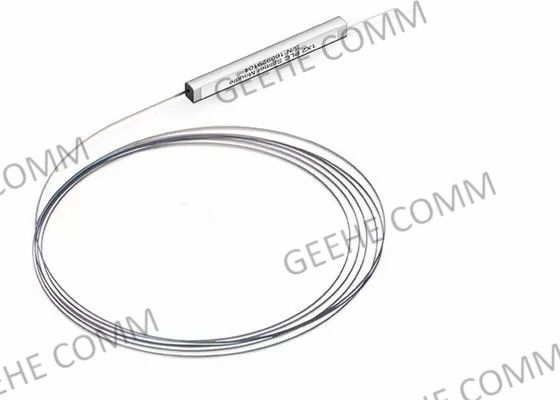

Steel Tube Type FTTH Bare 1x4 PLC Splitter

Large Image : Steel Tube Type FTTH Bare 1x4 PLC Splitter

Product Details:

Place of Origin:	China Mainland
Brand Name:	Wuhan Geehe
Certification:	ISO9001:2015,ISO 14001,UL
Model Number:	GH-PLC-1X2-002

Payment & Shipping Terms:

Minimum Order Quantity:	200 pcs
Price:	Negotiation
Packaging Details:	PE bags with thick outer cartons,OEM details
Delivery Time:	5-7 working days after confirm order
Payment Terms:	T/T, L/C, D/P, D/A, Western Union
Supply Ability:	4,800 Pcs/day

Contact Now

Steel Tube Type FTTH Bare 1x4 PLC Splitter

Description

Model Name:	1x4 PLC Splitter Bare Fiber	Package Style:	Steel Tube, Bare Fiber
PLC Casing Type:	Micro PLC	Configuration Type:	1x2,1×4
Cable Diameter:	125um	Return Loss:	≥50dB
Fiber Type:	Ribbon Fiber	Port Wavelength:	1310-1550nm
Input/Output Fiber Length:	1.5m	Polarization Dependent Loss:	≤0.2dB
Highlight:	Bare 1x4 PLC splitter , FTTH 1x4 PLC splitter , Bare 1x4 optical splitter

Steel Tube Type 1x4 PLC splitter Bare Fiber Optical Splitter For FTTH

Sell Points:

Small size, easy to install
Cost-effective, Small space
Reliable quality
Planar lightwave circuit splitter
Optic Spiltters available:1x2,1x4,1x8,1x16,1x32,1x64,2x4,2x8,2x16,2x32,2x64
Compact package dimension
Low polarization dependent loss
Good channel-to-channel uniformity
Environmentally and mechanically stable
Free Samples for testing

Steel Tube Type FTTH Bare 1x4 PLC Splitter 0

Bare Fiber PLC Features&Benefit:

Low Insertion loss and Low PDL
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability
Stability Telecordia GR-1221 and GR-1209

Application&Standard:

Optical Signal Distribution
Data Communications
Lan and CATV System
FTTX Deployment&FTTH Network
DWDM and CWDM Systems

Specification& parameters

Parameter	1x4	1x8	1x16	1x32	1x64	2x4	2x8	2x16	2x32
Operating Wavelength(nm)	1260~1650
Port Wavelength Range (nm)	1310 ±20,1490 ±10 and 1550 ±20
Insertion Loss @1310nm/1550nm	7.1	10.5	13.6	16.8	20.5	7.4	10.8	14.5	17.5
Uniformity (dB)	0.5	0.8	1	1.2	1.8	1.2	1.5	1.8	2
PDL @ 1310/1550 nm (dB)	≤0.3
Return Loss@ 1310/1551 nm (dB)	≤-55
Input Power (mW)	250max
Operating Temperature (℃)	-40~+85℃
Storage Temperature (℃)	-40~+85℃
Fiber Type	Corning G657A1

PLC Splitter Package Dimensions:

WxHxD(mm)	Port
60x7x4	1x4	1x8	2x4	2x8
60x12x4	1x16		2x16
80x12x6	1x32		2x32
100x40x6	1x64

Ordering Information:

PLC	AAA	B	CC	D	EE	FF	GG
	104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32	1=900µm loose	05=0.5m 10=1.0m 15=1.5m 20=2.5m	1=900µm loose	05=0.5m 10=1.0m 15=1.5m 20=2.5m	SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector	SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector
	Configuration	Input Fiber Type	Input Fiber Length	Output Fiber Length	Output Fiber	Input Connector	Output Connector
