Product Details:
|
| Model Name: | Optic Fiber Adapter | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Color: | Red, White, Black, Yellow Etc | Operation Wavelength: | 1310 Or 1550nm |
| Connector Type: | SC/APC,LC/UPC,FC/APC Etc | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Reduced Flange |
| Highlight: | OM3 lc fiber optic adapter,1550nm Fiber Optic Adapter,OM3 optical fiber adapter |
||

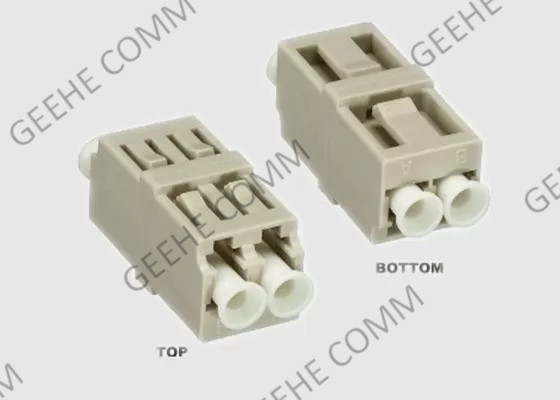

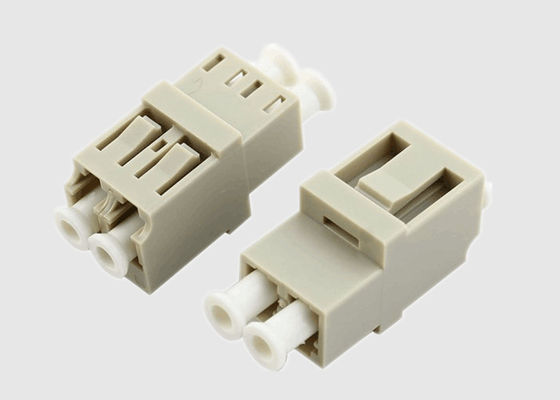

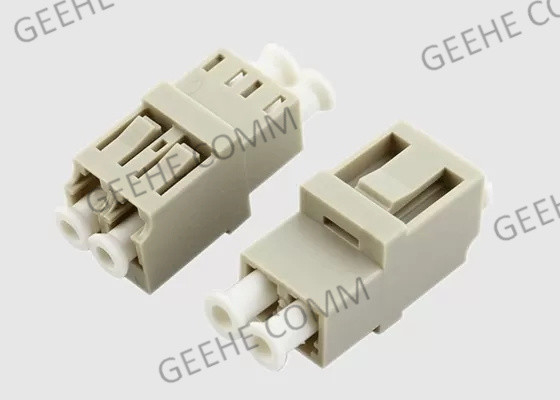

Beige Sleeve Duplex OM3 Multimode LC Fiber Optical Cable Adapter
1. Product Overview:
At Geehe Comm, we provide a variety of fiber adapter solutions to meet your needs. Our female/female fiber connector adapters make it easy to increase cable runs without significantly impacting performance, giving you the confidence to expand networks and easily add new devices. We offer any configuration of fiber optic connector adapters.
Optical Fiber Adapters are used to connect optical fiber connectors of the same types, such as FC, SC, ST, while Optical Fiber Converters are used to connect different type connectors, such as FC to SC.
2. Optical Cable Adaptor Feature and Benefits:
Compact design
Telcordia, TIA/EIA, and ISO compliance
Color coding & polarization
High precision alignment
Low insertion and return loss and back reflection
Clip or screw attach; flange or no flang
3. Fiber Optic Adapter Applications:
Gigabit Ethernet, Video, CATV
Active device/TranLCeiver interface
Telecommunication networks
Metro networks, Premise installations
Multimedia, Industrial and military
4. Optic Adapter Specification & Technology Parameters:
| parameter | SC, FC, ST, LC, MU, ST |
| End-face | APC/UPC/PC |
| Mode | Single-mode & multi-mode |
| Sleeve | Zirconia ceramic, phosphor bronze |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles) |
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
|
S: simplex D: duplex |
SC FC ST LC MU ST |
APC UPC PC |
Z: Zirconia ceramic, P: phosphor bronze |
W: with flange N: no flange |
W: with shutter N: no shutter |
|
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000 |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.
