Product Details:
|
| Model Name: | Fibre Optic Cable Adapter | Fiber Counts: | Simplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector Type: | SC/APC,LC/UPC,FC/APC Etc | Fiber Mode: | Single Mode |
| Durability: | >1000 Mating Times | Operating Temperature: | -40~75℃ |
| Adapter Mounting Type: | Reduced Flange | ||
| Highlight: | 0.2dB SC to ST fiber adapter,0.2dB hybrid fiber adapter,CATV SC to ST fiber adapter |
||

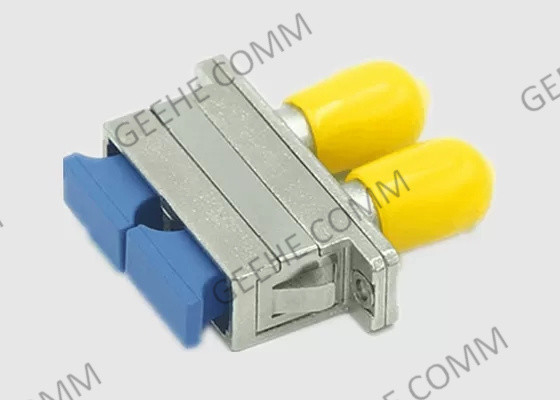

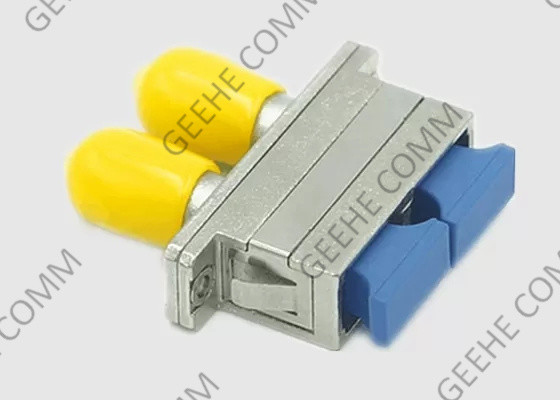

Polished Connector SC-ST Duplex Hybrid Fiber Optic Adapter With Ceramic Sleeve
1. Product Overview:
ST to SC fiber adapters can be used for a variety of applications to connect ST to SC including telecommunication networks, data communication networks, optical CATV, test equipment, and more. All of our fiber connectors and fiber optic cable adapter products are easy to install and highly durable.
Connects Two ST and Two SC Duplex Connectors Together, Easy Installation recommended for Singlemode and Multimode Applications.
2. Optical Cable Adaptor Feature and Benefits:
Switchable adapter interface, eliminating the need for hybrid cable assemblies
Easy cleaning and maintenance
3. Fiber Optic Adapter Applications:
Telecommunication Network, Data Communication Network, Optical CATV, Test Equipment
4. Optic Adapter Specification & Technology Parameters:
| parameter | SC, FC, ST, LC, MU, ST |
| End-face | APC/UPC/PC |
| Mode | Single-mode & multi-mode |
| Sleeve | Zirconia ceramic, phosphor bronze |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles) |
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
|
S: simplex D: duplex |
SC FC ST LC MU ST |
APC UPC PC |
Z: Zirconia ceramic, P: phosphor bronze |
W: with flange N: no flange |
W: with shutter N: no shutter |
|
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC-LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000 |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day. Free samples can be support for testing.
