Product Details:
|
| Model Name: | LC UPC Male To FC Female Adapter Connector | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | LC Female To ST Male | Fiber Counts: | Simplex |
| Color: | Blue | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Reduced Flange |
| Highlight: | LC UPC To FC Fiber Optic Adapter,Simplex lc to fc fiber adapter,FTTH lc to fc fiber adapter |
||

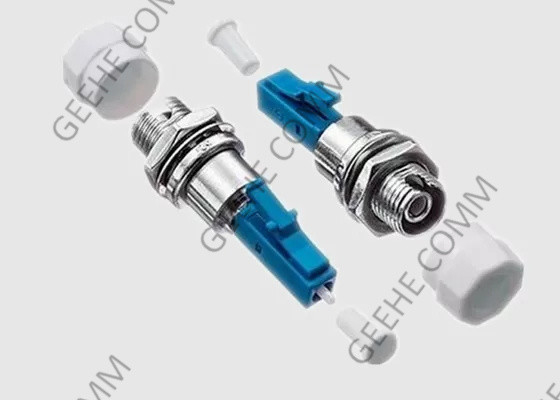

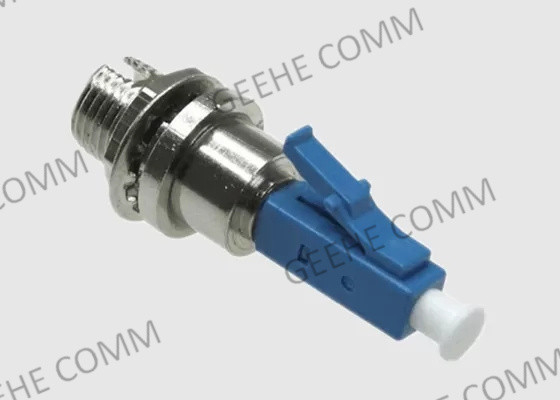

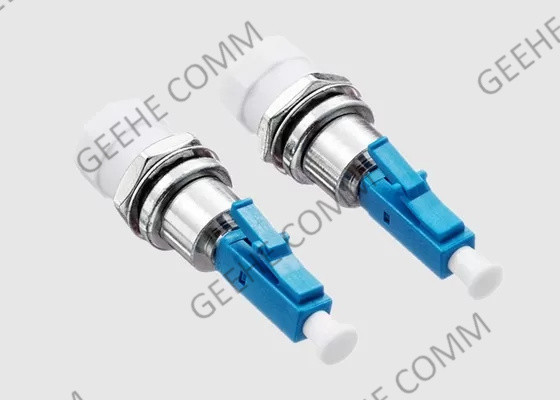

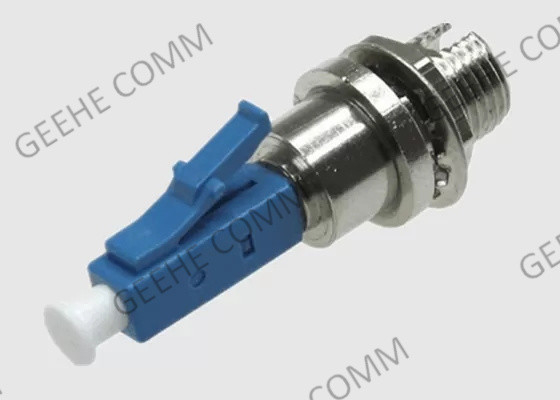

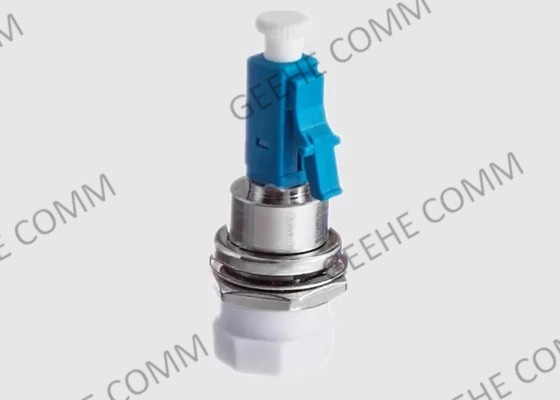

LC UPC Male To FC Female Adapter Connector For Optical Power Meter
1. Product Overview:
Hybrid adaptors are used for mating 2 different style connectors or assemblies. These adaptors have a female adaptor end united to the back end of a different male connector which can be connected to an additional adaptor or interface of the same type. This can change the assembly end without the need for additional cable, therefore reducing space. Our hybrid adaptors conform to international standards, are quality tested, and are available in Singlemode and multimode, and come in many different connector-type configurations.
Geehe Hybrid adaptors can do SC-FC, SC-ST, FC-ST, SC-LC, FC-LC, and ST-LC, etc.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
