Product Details:
|
| Model Name: | Cable To Fiber Optic Adapter | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | LC Female To ST Male | Fiber Counts: | Simplex |
| Dust Cap Color: | Yellow | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Reduced Flange |
| Highlight: | Ceramic sleeve Hybrid Fiber Adapter,Simplex fc to st fiber adapter,Simplex Hybrid Fiber Adapter |
||

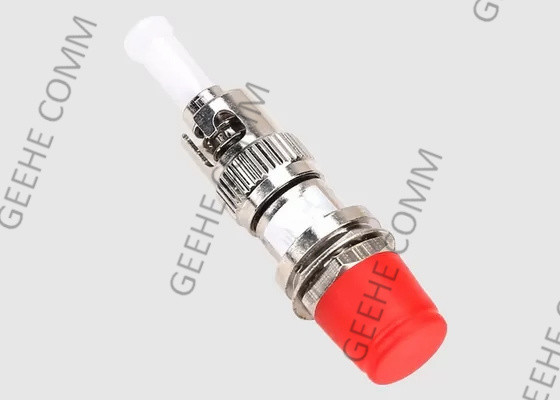

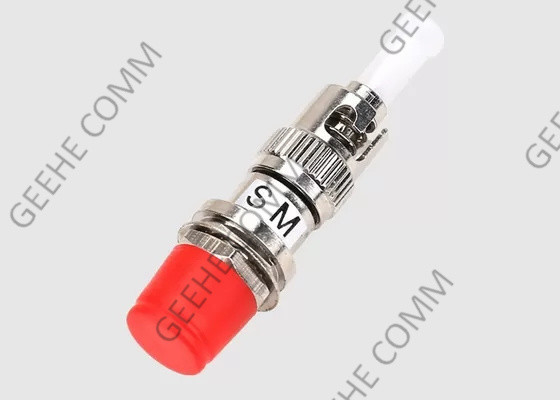

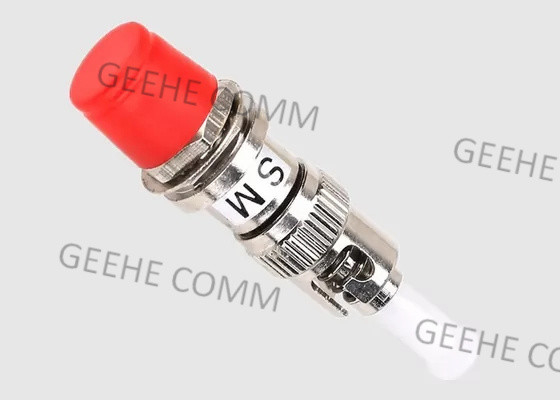

Single Mode Metal Housing FC Male To ST UPC Female Fiber Optic Hybrid Adapter
1. Product Overview:
Hybrid optical adapters with male to the female configuration are very useful in connecting patch cords with different connectors, Male female type switching adapter uses the embedded optical fiber and optical fiber core plug adapter sleeve jointing technology, can connect a typical optical fiber head (head) is converted into another type of optical fiber connector (male) or to a type of optical fiber connector interface (mother) is converted into another type of optical fiber connector interface (female).
With small volume, light stability features the use of simple features, widely used in fiber optic equipment instrument test and engineering rescue construction and other fields.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
