Product Details:
|
| Model Name: | SC To MU Hybrid Optic Adapter | Mode Type: | Simplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | FC Male To LC Female | Fiber Counts: | Simplex |
| Color: | Blue,Steel | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Reduced Flange |
| Highlight: | Simplex Fiber Optic Adapter,SC Female To MU Female Fiber Optic Adapter |
||

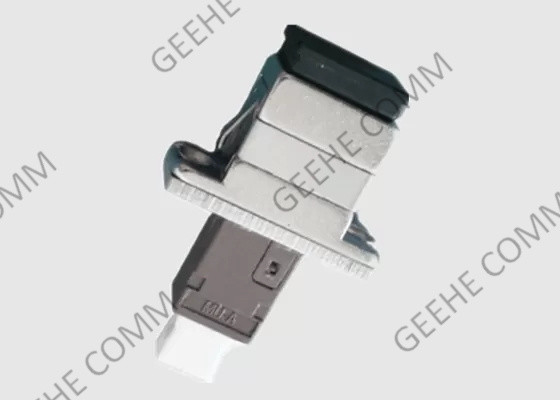

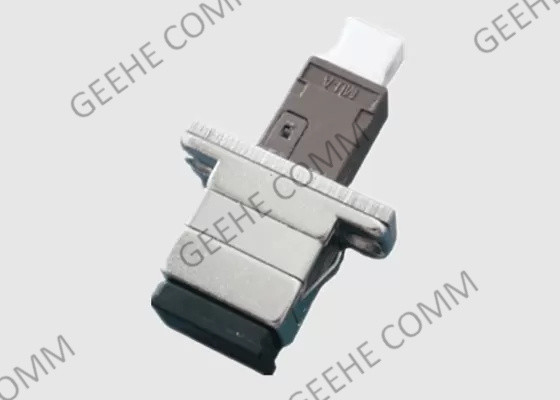

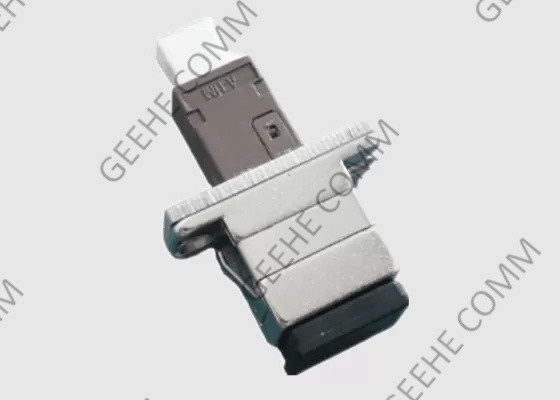

SC Female To MU Female Single Mode Fiber Optic Hydrid Adapter
1. Product Overview:
SC To Mu Female to adapter is the female to female type, which is also called a plug fiber attenuator. They are with ceramic ferrules and there are various types to fit different kinds of fiber optic connectors. Fiber optic adapters can reduce the optical light power at a fixed level,Variable fiber optic attenuators are with adjustable attenuation range. There are also attenuation fiber optic patch cables available, their function is same
as attenuators and are used inline.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) 24/7 After Service
Any questions about our products welcome to feedback us, we will reply with 1 hour and give solve solutions within 2-3 hours.
