Product Details:
|
| Model Name: | FIber Coupler Optic Testing Patch Cord | Sheath Material: | OFNR Riser |
|---|---|---|---|
| Cable Length: | 5m Or Customerized | Propagation Mode: | Multi Mode,Single Mode |
| Tensile Strength(N): | ≥55 | Cable Diameter: | 0.9mm, 2mm Or 3mm |
| Connector: | SC To FC | End-Face Type: | UPC,PC,APC |
| Jacket Color: | Orange Or Customerized | Service: | OEM&ODM |
| Highlight: | Single Mode Optic Testing Patch Cord,Fiber Coupler Optic Testing Patch Cord,FC Connector Optic Testing Patch Cord |
||

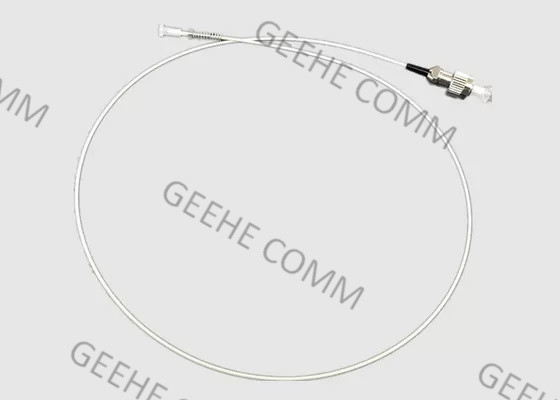

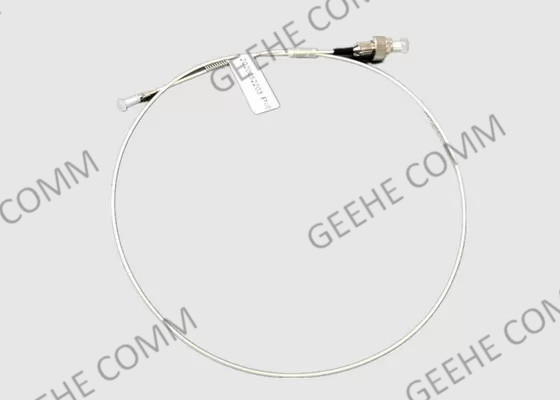

Single Mode FC Connector Fiber Coupler Optic Testing Patch Cord
1. Fast Overview:
2. Coupler Fiber Testing Patch Cord Benefit & Features:
3. Fiber Optic Patch Cord Applications:
Suitable for the CATV network, telecommunication network, computer optical fiber network, and optical test equipment. Also for passive optic products and active optic products.
4. Specification&Technology Parameter
| Parameters | Unit | Index | ||
| Operating wavelength | nm | 1310&1550 | ||
| Grade | / | P | A | B |
| Insertion Loss (FC) | dB | ≤0.20 | ≤0.30 | |
| Insertion Loss (LC) | dB | ≤0.15 | ≤0.20 | ≤0.30 |
| Concentricity (LC) | um | ≤0.75 | ≤1.0 | N/A |
| Unidirectionality(LC) | dB | ≤0.10 | ≤0.15 | N/A |
| Return Loss | dB | ≥50 | ||
| Working temperature | ℃ | ~20℃ - +70 | ||
5. Our Service:
Your patch cord selection is important to the type of fiber optic network you are working on. Some are ideal for single-mode, while others might be the right for a Multimode installation. Another factor to consider is the polished type when using single-mode cables.
While your patch cord choice is important, it is only one piece of the fiber-optic network to choose from. Take a look at what's available in these other key product categories:
6. Connector Type Abbreviations:
SC - a snap-in style connector. Known for its excellent performance. Referred to as Subscriber Connectors, Square Connectors, or Standard Connectors.
ST - a very popular choice connector for Multimode networks. Also referred to as Straight Tip connectors, they utilize a bayonet-style coupling type, enabling a simple twist-on and twist-off installation.
FC - was at one time the most popular single-mode connector type, but is now typically being replaced by SC and LC connectors. Also known as Ferrule Connectors, they utilize a screw-on coupling type to be used in high-vibration environments and are commonly used for datacom, telecom, measurement equipment, and single-mode lasers.
LC - a small form factor connector—measuring half the size of an SC connector. This is a popular choice for single-mode cables. Also referred to as Lucent Connectors, Little Connectors, or Local Connectors, these snap-in connectors are typically used for high-density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers.
