Product Details:
|
| Model Name: | FC To LC UPC Female Hybrid Adapter | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | FC Female To LC Female | Fiber Counts: | Simplex |
| Color: | Green | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Reduced Flange |
| Highlight: | FC Female to LC Female Optic Cable Adapter,Simplex Fiber Optic Cable Adapter,FC Style To LC Style Adapter |
||

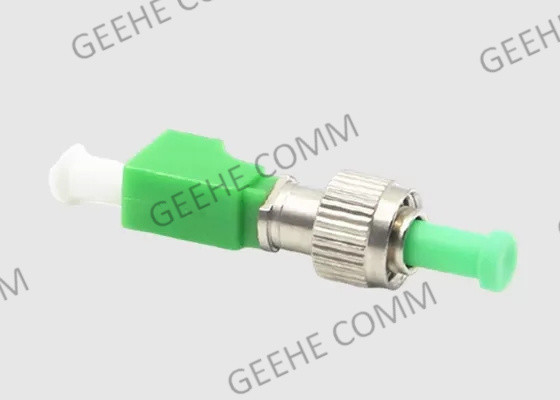

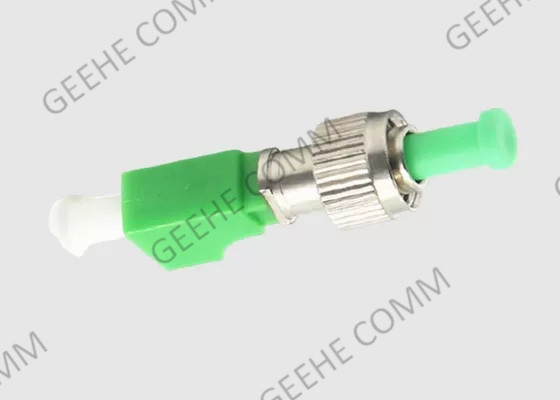

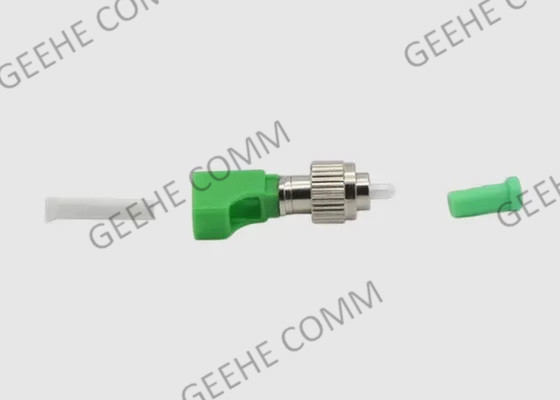

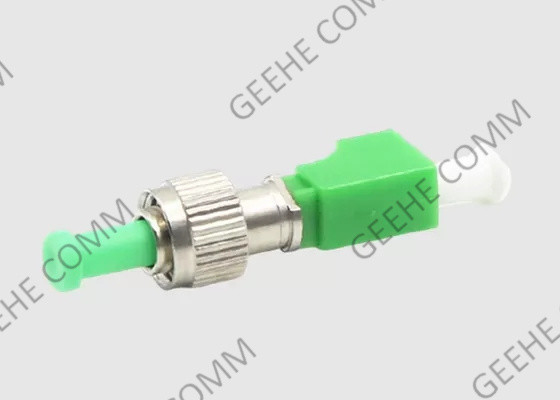

FC Female To LC Female Hybrid Optic Optical Fiber Adapter Connector
1. Product Overview:
FC female male fiber connector on one end and LC female fiber connector on another end. Used to convert FC female fiber adapter to LC female fiber adapter with low loss.
This hybrid Fiber Adapters (Converting fiber adapter) provide interconnection between two different fiber Optical types.
There are two types of Hybrid fiber adapter, including Male-Female hybrid fiber adapter and Female-Female hybrid fiber adapter.
Female-Female hybrid fiber adapter (Bulk Type hybrid fiber adapter) is a fiber adapter with two different ends. We call it a Female-Female Hybrid fiber adapter. Such as ST female at one side, FC female on the other side.
This hybrid Fiber Adapters are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism.
2. Optical Cable Adaptor Feature and Benefits:
FC style to LC style
Use in Singlemode or multimode applications
Free-hanging or panel-mount design
Dust caps protect against debris and contamination
RoHS Compliant
3. Fiber Optic Adapter Applications:
FTTH, LAN, PON & Optical CATV
Local Area Network
Telecommunication Networks
Equipment Test
High-speed transmission systems
Fiber optic sensing
Industrial, Mechanical and Military
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |

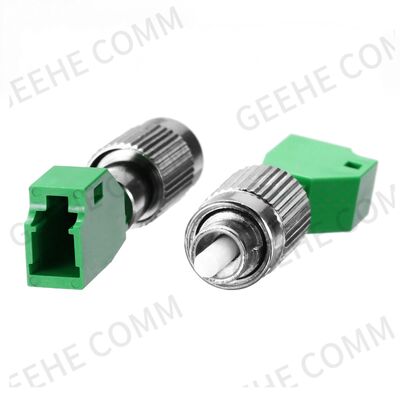

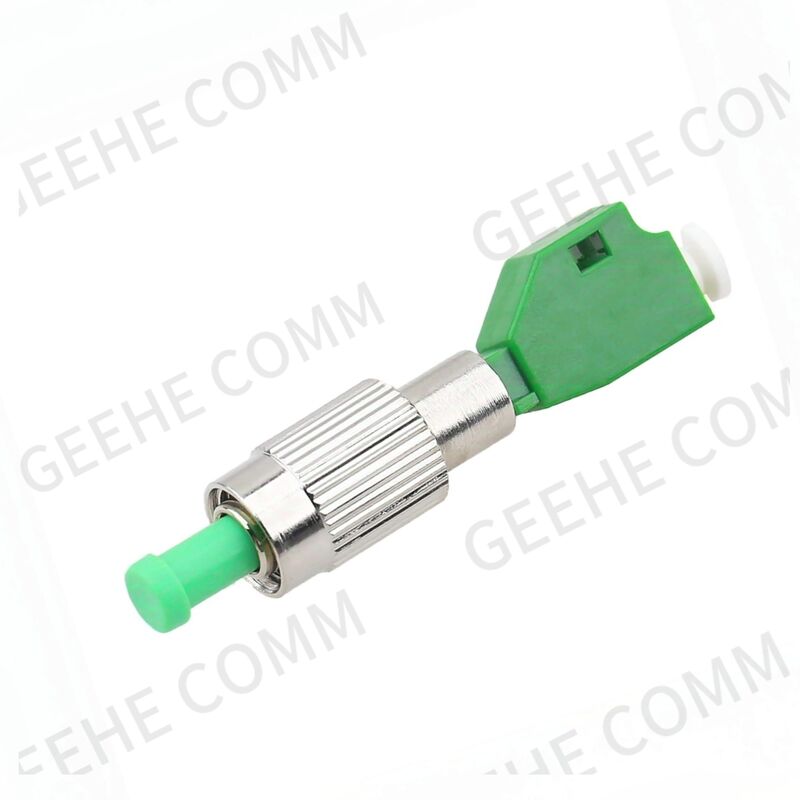

6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) ISO9001:2015 Certification by SGS
All products have passed ISO9001:2015 System and reached Telcordia GR-326-Core
