Product Details:
|
| Model Name: | Simplex FC Male To SC Male Hybrid Adapter | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | FC Male To SC Male | Fiber Counts: | Simplex |
| Color: | Green | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | With Flange |
| Highlight: | FC Male to SC Male Adapter,Simplex FC To SC Fiber Adapter,Multimode FC to SC Hybrid Adapter |
||

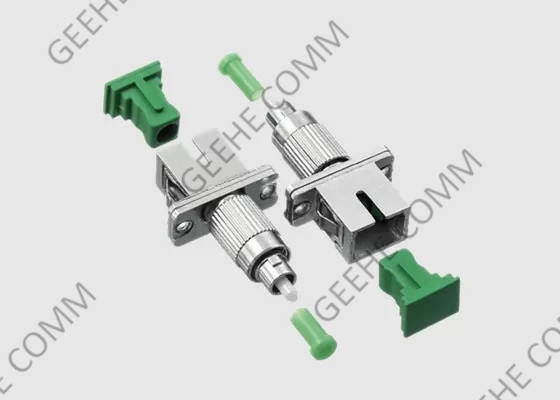

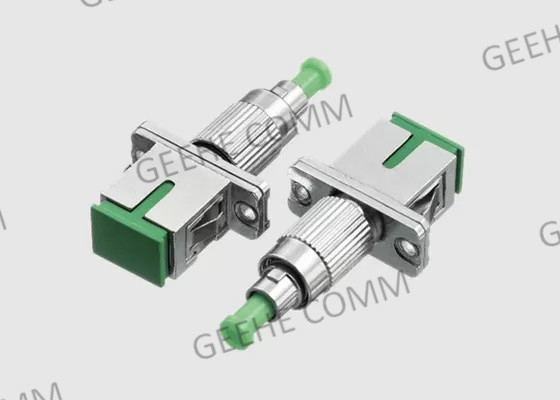

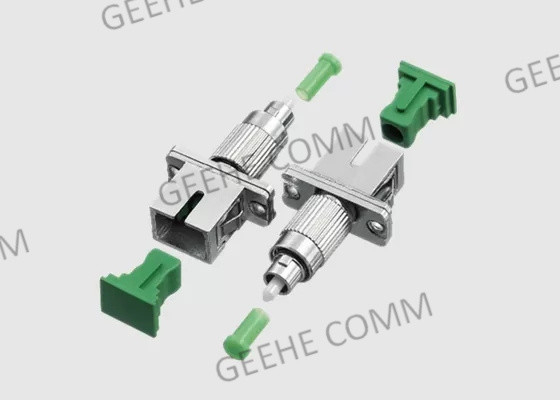

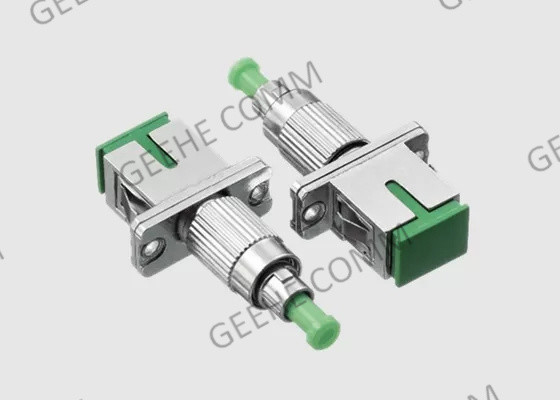

OM2 Multimode 50/125 Simplex FC Male to SC Male Hybrid Adapter
1. Product Overview:
Are you tired of worrying if you have accurately tested your fiber optic cables when using a standard 2.5mm or 1.25mm ferrule adapter?
Did you purchase a fiber cable tester with an FC connection only to find out that your current fiber job has SC fiber connectors on the cable you need to test? By using a fiber tester adapter with the correct fiber connector mating sleeve, you will be sure to have the best test results possible.
Fiber tester adapters are made to fit fiber cable testers and allow you to convert an FC connection into an SC connection with an FC male to SC female adapter that is designed to work with an SC male multimode 62.5/125 OM1 connector.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) ISO9001:2015 Certification by SGS
All products have passed ISO9001:2015 System and reached Telcordia GR-326-Core
