Product Details:
|
| Model Name: | LC/SC Fiber Hybrid | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | LC Male To SC Female | Fiber Counts: | Simplex |
| Color: | Blue | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Square Flange |
| Highlight: | Fiber Hybrid LC To SC Coupler,LC To SC Coupler Singlemode,LC To SC Fiber Optic Coupler |
||
LC/SC Fiber Hybrid Blue Color Coupler Singlemode Simplex Ceramic
1. Product Overview:

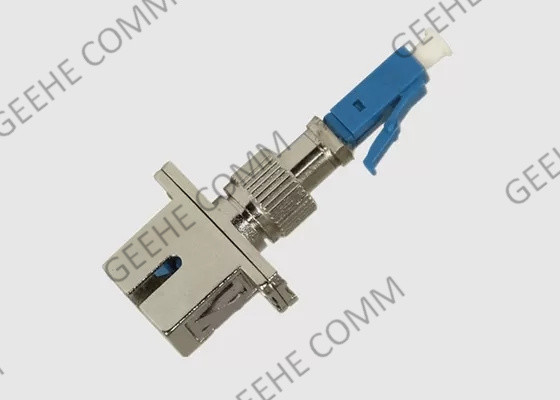

This Hybrid Optic Adapter consists of a LC simplex male on one end and a SC simplex female on the other end. It is typically used to connect a SC simplex male cable to a LC simplex female port or female adapters.
Singlemode LC to SC Simplex Coupler - This item provides the link between Fiber networking devices. This coupler allows for connecting of similar connector types for long-distance networks at high speeds. Singlemode fiber optical products are used for long-distance signal transmission. PI Manufacturing provides a wide selection of fiber adapters at competitive prices. These adapters allow you to connect various types of optic fibers together.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
Data center
Telecommunication networks
Premise installations
LAN and WAN
FTTX
Broadband network
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) ISO9001:2015 Certification by SGS
All products have passed ISO9001:2015 System and reached Telcordia GR-326-Core
