Product Details:
|
| Model Name: | Singlemode Fiber Optic Adapter | Mode Type: | Simplex, Duplex |
|---|---|---|---|
| Adapter Insert Material: | Zirconia/Ceramic, Metal | Housing Material: | Metal, Plastic |
| Connector: | FC/UPC Female To LC/UPC Female | Fiber Counts: | Simplex |
| Color: | Red | Durability: | >1000 Mating Times |
| Operating Temperature: | -40~75℃ | Adapter Mounting Type: | Square Flange |
| Highlight: | FC Female to LC Female adapter,FC To LC Adapter Single Mode,Simplex Singlemode Fiber Optic Adapter |
||

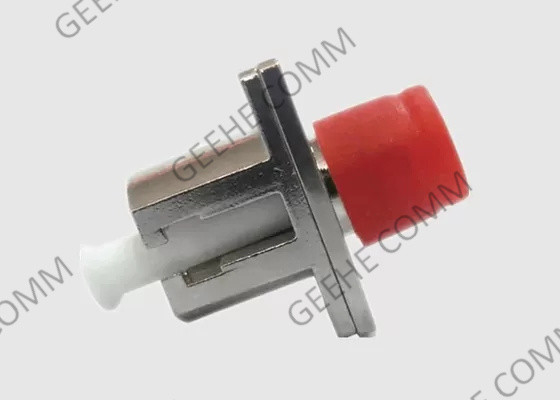

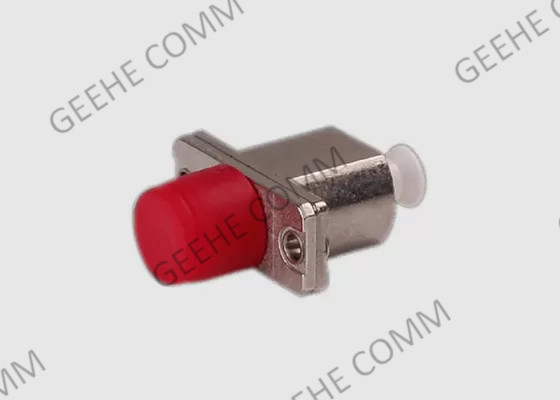

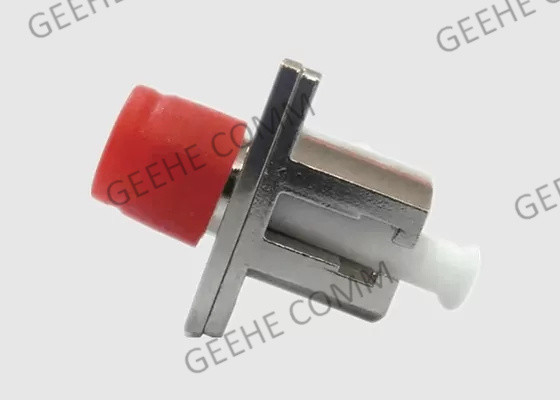

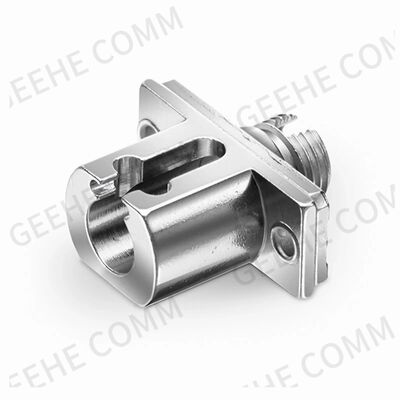

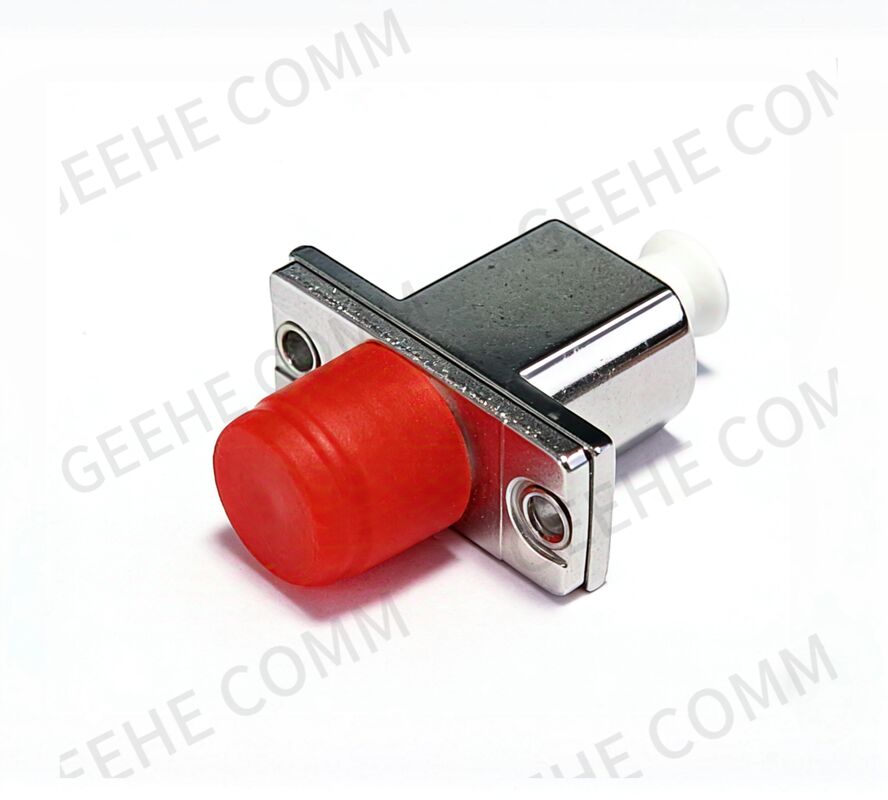

FC/ UPC Female To LC/ UPC Female Simplex Singlemode Fiber Optic Adapter
1. Product Overview:
Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male-to-female hybrid fiber optic adaptors.
Fiber optic adapters are typically designed to connect two fiber optic patch cables together. They come in various types, most adapters are female on both ends to connect two patch cables, while some adapters are male to female which allow the port to accept a different connector than for which it was originally designed, and we also assemble hybrid adapters which accept different types of connects.
2. Optical Cable Adaptor Feature and Benefits:
3. Fiber Optic Adapter Applications:
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit | ||
| Sleeve Material | Ceramic | / | ||
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB | ||
| Female | Typ. | ≤ 0.3 | dB | |
| Min. | ≤ 0.2 | dB | ||
| Return Loss | UPC | ≥50 | dB | |
| APC | ≥60 | dB | ||
| PC | ≥35 | dB | ||
| Insertion Loss Max. | 0.2 | dB | ||
| ∆ IL | Uniformity | ＜0.2 | dB | |
| Durability (1000 times) | ＜0.3 | dB | ||
| Proof Test | 40N,10 minute | N | ||
| Insertion And Withdrawal Force | ≤19.6N | N | ||
| Operating Temperature | -25~+70 | ℃ | ||
| Storage Temperature | -25~+70 | ℃ | ||
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 | |||
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SC FC ST LC MU |
APC UPC PC |
Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange N: No Flange |
W: With shutter N: No shutter |
|
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) ISO9001:2015 Certification by SGS
All products have passed ISO9001:2015 System and reached Telcordia GR-326-Core
5) Young Team
The sales and service team are young people with high effect and energy, for every customer with One to One service.
