Product Details:
|
| Model Name: | ST-ST Fiber Optic Jumper | Sheath Material: | OFNR Riser |
|---|---|---|---|
| Cable Length: | 5m Or Customerized | Propagation Mode: | Multi Mode,Single Mode |
| Tensile Strength(N): | ≥55 | Cable Diameter: | 0.9mm, 2mm Or 3mm |
| Connector: | ST To ST | End-Face Type: | UPC,PC,APC |
| Jacket Color: | Yellow Or Customerized | Standard: | Telcordia GR-326- Core |
| Highlight: | ST UPC To ST UPC Fiber Optic Jumper,Single Mode ST to ST Fiber Cable,ST-ST Fiber Optic Jumper Cable |
||

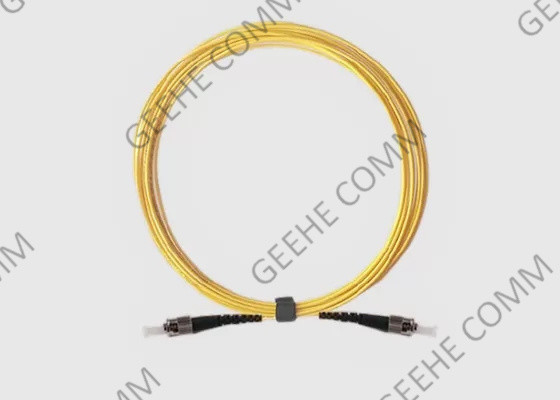

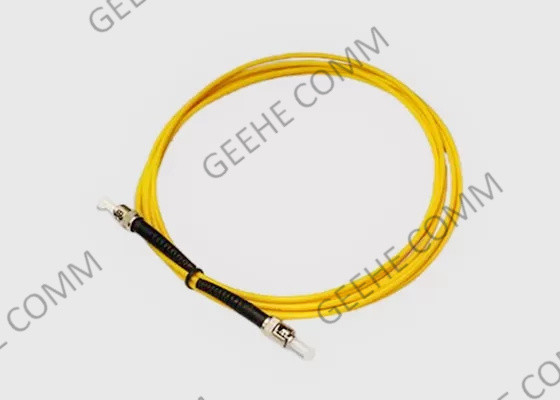

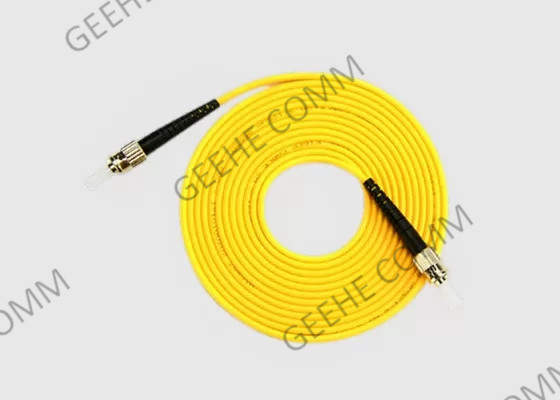

Single mode Fiber Cable 62.5/125 ST-ST Fiber Optic Jumper For Data Center
1. Basic Introduction:
ST UPC to ST UPC fiber optic patch cord is used to connect fiber optic equipment to equipment or patch panel to equipment. It comprises a patch cable terminated with ST fiber optic connectors at both ends. Both simplex and duplex types are available with Singlemode and Multimode optic fiber types supported.
ST to ST fiber patch cables is all tested for 100% functionality and guaranteed compatible for outstanding network performance. We offer patch cords, fiber jumpers, and fiber cables up to 50 meters in length.
2. ST To ST Patch Cord Benefit & Features:
1) Free ST/UPC fiber optic patch cable sample

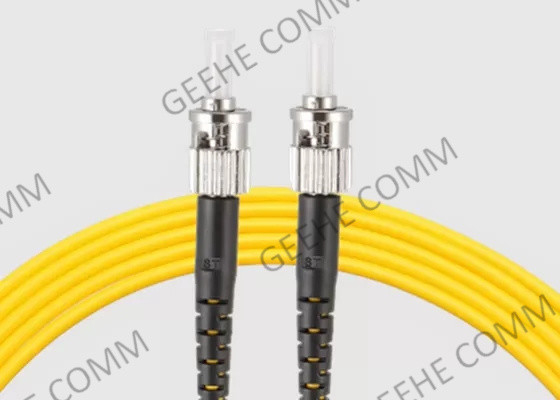

2) Metal joint head, ceramic ferrule, ST-ST
3) Fiber Spherical Height: -90 nm, +50 nm
4) 100% quality monitoring and testing
5) Good durability and exchangeability
6) Various Connector Type Available
7) High-temperature stability
8) Low Insertion Loss and Back Reflect
3. Fiber Optic Patch Cord Applications:
1) Optical Fiber Communications, Video, LAN, CATV Systems
2) Optical Network Equipments, Optical Test Equipment
3) Module Pigtails, Multimedia, Premise
4) Active device termination installations
4. Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. ST Connector Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
6. Our Service:
Your patch cord selection is important to the type of fiber optic network you are working on. Some are ideal for single-mode, while others might be the right for a Multimode installation. Another factor to consider is the polished type when using single-mode cables.
While your patch cord choice is important, it is only one piece of the fiber-optic network to choose from. Take a look at what's available in these other key product categories:
7. Connector Type Abbreviations:
SC - a snap-in style connector. Known for its excellent performance. Referred to as Subscriber Connectors, Square Connectors, or Standard Connectors.
ST - a very popular choice connector for Multimode networks. Also referred to as Straight Tip connectors, they utilize a bayonet-style coupling type, enabling a simple twist-on and twist-off installation.
FC - was at one time the most popular single-mode connector type, but is now typically being replaced by SC and LC connectors. Also known as Ferrule Connectors, they utilize a screw-on coupling type to be used in high-vibration environments and are commonly used for datacom, telecom, measurement equipment, and single-mode lasers.
LC - a small form factor connector—measuring half the size of an SC connector. This is a popular choice for single-mode cables. Also referred to as Lucent Connectors, Little Connectors, or Local Connectors, these snap-in connectors are typically used for high-density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers.
