Product Details:
|
| Model Name: | MPO Fiber Optic Loopback | Fiber Connector: | MPO |
|---|---|---|---|
| Fiber Type: | U.S. Or Chinese Corning Fiber | Housing Material: | Plastic |
| Material: | PVC & LSZH | Boot Color: | Blue,Green,Grey, Customization |
| Max Attenuator: | 3.50dB/km@ 850nm, 1.25dB/km@1300nm | Operating Temperature: | - 20℃ To +70 ℃ |
| Highlight: | G657A2 Fiber Optic Loopback,Fiber Optic Loopback,12 core mpo loopback |
||

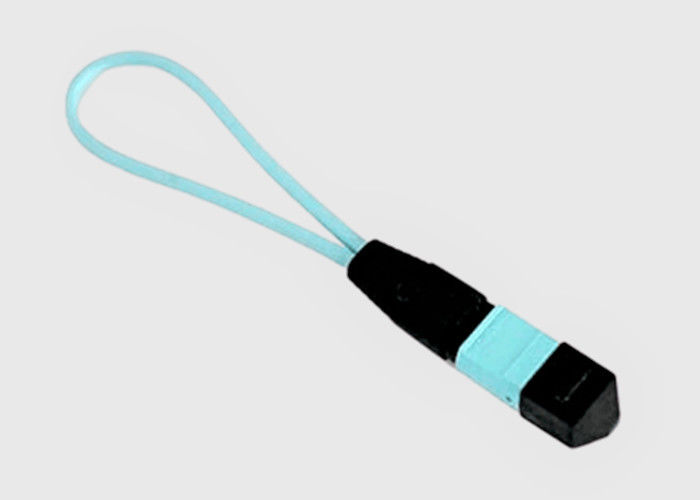

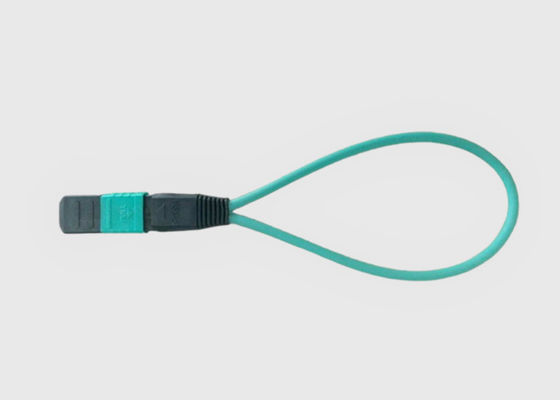

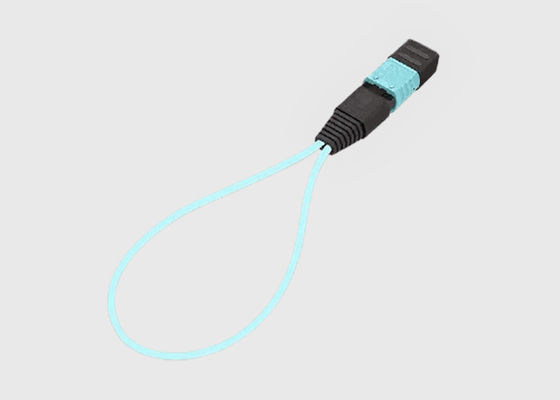

12 Fiber Optical Single Mode SM G657A2 MPO Fiber Optic Loopback
1. Product Overview:
MPO/MTP Loopback is used widely within the testing environment especially within parallel optics 40 and 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP interface - 40G BASED-SR4 QSFP+ or 100G BASE-SR10 CXP/CFP devices.
MPO/MTP loopbacks can facilitate and speed up IL testing of optical network segments by connecting them to MPO/MTP trunks/patch leads.
By using PI Manufacturing's MPO loopback tester, you will determine the source of your problem swiftly, allowing you to address the situation and experience the fiber optic transfer of data as they were manufactured for.
2. Optical Cable Loopback Feature and Benefits:
3. Fiber Optic Backloop Adapter Applications:
4. Certification And Compliance
1) TIA/EIA-568-C.3 and ISO/IEC 11801
2)IEC-61754-7 & EIA/TIA-604-5
3)Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC
5.Optic Adapter Specification & Technology Parameters:
| Parameter | Value |
| Performance Specifications (MM) | |
| Fiber Type | Multimode OM1, OM2, OM2, OM4 |
| Max. Attenuation | 3.50dB/km@ 850nm, 1.25dB/km@1300nm |
| Insertion Loss | < 1.0dB |
| Return Loss | < -25dB |
| Operating Temperature | - 20℃ to +70 ℃ |
| Performance Specifications (SM) | |
| Fiber Type | Single Mode 9/125 um G.652D Fiber |
| Max. Attenuation | 0.4dB/km@1310nm,0.3dB/km@1550nm |
| Insertion Loss | < 1.0dB |
| Return Loss | < -60dB |
| Operating Temperature | - 20℃ to +70 ℃ |
6. Ordering Information:
| Fiber Type | Connector Type | Polish | Fiber Count | ||||
| 1 | Single Mode OS2 | LC | LC | A | APC | 2 | 2 Fibers |
| 2 | 62.5/125um Multimode OM1 | SC | SC | B | UPC | 12 | 12 Fibers |
| 3 | 50/125um Multimode OM2 | MT | MTRJ Female | C | PC | 24 | 24 Fibers |
| 4 | 50/125um Multimode OM3 | MB | MTRJ Male | ||||
| 5 | 50/125um Multimode OM4 | MP* | 12F MPO Female | ||||
| MA* | 12F MPO Male | ||||||
| PP* | 24F MPO Female | ||||||
| PA* | 24F MPO Male | ||||||
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) 24/7 After Service
Any questions about our products welcome to feedback us, we will reply with 1 hour and give solve solutions within 2-3 hours.
