Product Details:
|
| Model Name: | Fibre Loopback Plug | Fiber Connector: | MPO |
|---|---|---|---|
| Fiber Type: | U.S. Or Chinese Corning Fiber | Housing Material: | Plastic |
| Material: | PVC & LSZH | Boot Color: | Blue,Green,Grey, Customization |
| Max Attenuator: | 3.50dB/km@ 850nm, 1.25dB/km@1300nm | Operating Temperature: | - 20℃ To +70 ℃ |
| Highlight: | MTP Fiber Optic Loopback Adapter,OM4 Fiber Optic Loopback Adapter,0.3m Fibre Loopback Plug |
||

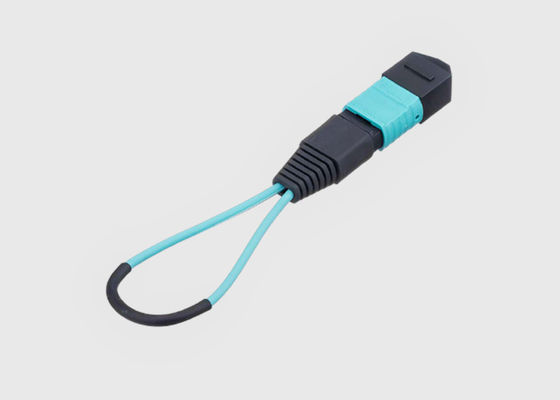

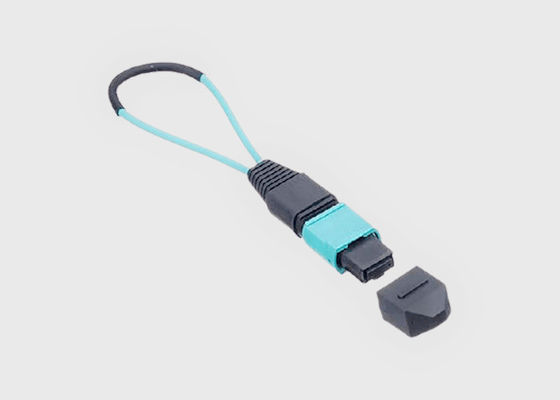

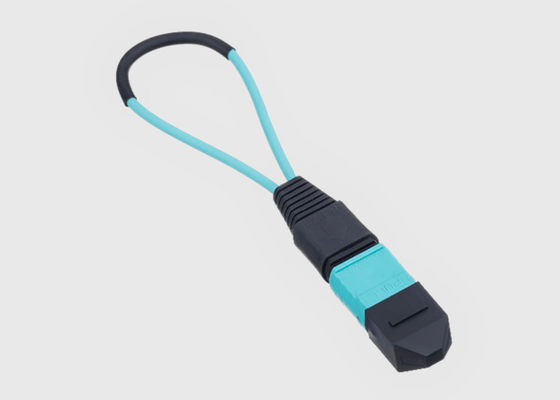

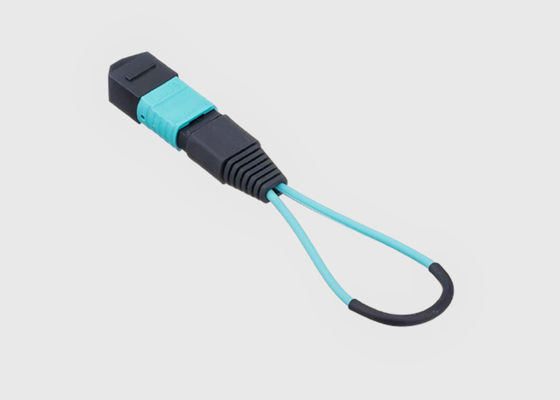

OM4 MPO Loop Back MTP Fiber Optic Loopback 0.3m Fibre Loopback Plug
1. Product Overview:
MPO fiber loopback cable provides an economical solution for a number of fiber optic test applications. It includes a generous yet manageable fiber loop virtually eliminating bend loss. Each cable is functionally tested before shipping. This series features a 12 Channel MPO connector without alignment pins and is ideal for QSFP applications.
It also helps to test the transmitter capability and receiver sensitivity of network equipment.
Suitable for high-speed applications and lab evaluation.
2. Optical Cable Loopback Feature and Benefits:
3. Fiber Optic Backloop Adapter Applications:
4. Certification And Compliance
1) TIA/EIA-568-C.3 and ISO/IEC 11801
2)IEC-61754-7 & EIA/TIA-604-5
3)Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC
5.Optic Adapter Specification & Technology Parameters:
| Parameter | Value |
| Performance Specifications (MM) | |
| Fiber Type | Multimode OM1, OM2, OM2, OM4 |
| Max. Attenuation | 3.50dB/km@ 850nm, 1.25dB/km@1300nm |
| Insertion Loss | < 1.0dB |
| Return Loss | < -25dB |
| Operating Temperature | - 20℃ to +70 ℃ |
| Performance Specifications (SM) | |
| Fiber Type | Single Mode 9/125 um G.652D Fiber |
| Max. Attenuation | 0.4dB/km@1310nm,0.3dB/km@1550nm |
| Insertion Loss | < 1.0dB |
| Return Loss | < -60dB |
| Operating Temperature | - 20℃ to +70 ℃ |
6. Ordering Information:
| Fiber Type | Connector Type | Polish | Fiber Count | ||||
| 1 | Single Mode OS2 | LC | LC | A | APC | 2 | 2 Fibers |
| 2 | 62.5/125um Multimode OM1 | SC | SC | B | UPC | 12 | 12 Fibers |
| 3 | 50/125um Multimode OM2 | MT | MTRJ Female | C | PC | 24 | 24 Fibers |
| 4 | 50/125um Multimode OM3 | MB | MTRJ Male | ||||
| 5 | 50/125um Multimode OM4 | MP* | 12F MPO Female | ||||
| MA* | 12F MPO Male | ||||||
| PP* | 24F MPO Female | ||||||
| PA* | 24F MPO Male | ||||||
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) 24/7 After Service
Any questions about our products welcome to feedback us, we will reply with 1 hour and give solve solutions within 2-3 hours.
