| Model Name: | Fiber Optic Patch Cable LC/LC | Fiber Counts: | Duplex |
|---|---|---|---|
| Fiber Type: | SMF G.657A1 | Sheath Material: | OFNR Riser |
| Connectors: | LC To LC | Cable Length: | 0.5m/1m/1.5m Or Customized |
| Endface Of The Connector: | PC/UPC/APC | Diameter Of The Cable: | 0.9/2.0/3.0/4.8/7.0 |
| Fiber Color: | Yellow/orange/Aqua/Red Customerized | Impact Cycle: | 1500 |
| Highlight: | Uniboot Fiber Optic Patch Cable,10M Fiber Optic Patch Cable,G.657A1 duplex patch cord |
||

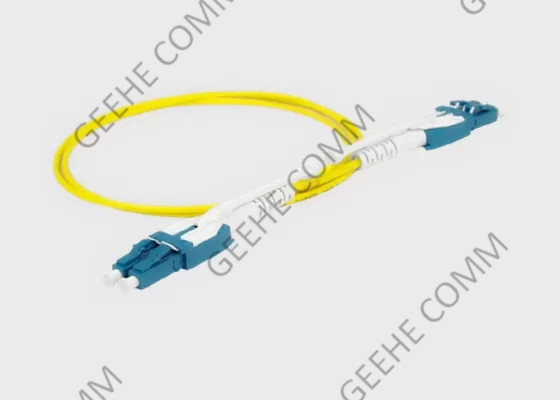

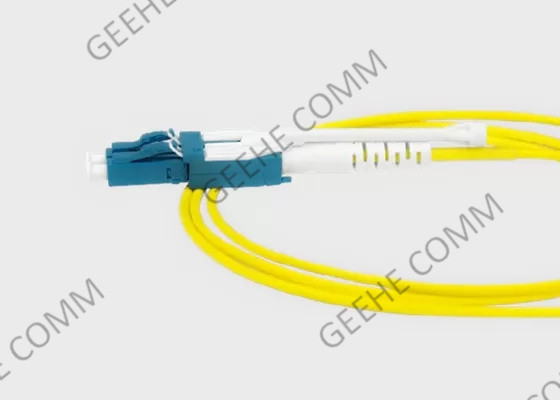

Duplex SMF G.657A1 OFNR 10M Uniboot Fiber Optic Patch Cable LC/LC
1. Fiber Patch Cord Basic Introduction:
LC Uniboot patch cord employs 1.25mm zirconia ceramic ferrules for either PC or APC applications, Provides optimum insertion and return loss. Geehe’s LC Uniboot connector features round style 2.0mm, 2.4mm, and 3.0mm jacketed cables which reduce cable congestion and makes cable management easier in today’s highly dense application. All cables are tested, serialized, and labeled in individual bags with complete test information.
2. Uniboot Fiber Optic Patch Cord Benefit & Features:
3. Uniboot Patch Cord Applications:
4. Specification&Technology Parameters
| Construction | |
| Fiber Count | 2- Fiber Round |
| Cable Jacket Ratings | Plenum (OFNP) Low Smoke Zero Halogen (LSZH) |
| Fiber Types | Singlemode: OS2 9/125um Multimode: OM3 50/125um OM4/4+50/125um OM5+ 50/125um |
| Connector Types | Duplex LC Uniboot |
| Jacket Color | OS1/OS2: Yellow OM3: Aqua OM4: Aqua OM4+:Aqua OM5+:Lime Green |
| Physical Properties | |
| Cable outside diameter (OD) | 2.0mm |
| Bend radius (min) | 40mm |
| Connector durability | 500 cycles |
| Bend radius (min)(Long- term) | 20mm (40mm) |
| Optical Properties | |
| Connector insertion loss | MM: 0.15dB max (Optimized IL) 0.10dB max (Ultra-low IL) 0.25dB max (Optimized IL) |
| SM: 0.25 dB max ( Optimized IL) | |
| Connector return loss | 26dB min (MM) 55dB min (SM) 65dB min (SM/APC) |
| Environmental Properties | |
| Storage and shipping temperature | -40℃-+70 ℃ |
| Operating and installation temperature | -40℃-+70 ℃ |
5. Ordering Information
| Code | Fiber Type | Cable Type | Jacket Material | Color | Length (m) | ||||
| P | 3 | OM3 | AR2 | Round 2mm | L | LSZH | Y | Yellow | 1 |
| 4 | OM4 | AX2 | Round 2.4mm | R | OFNR | A | Aqua | 2 | |
| 7 | G.657A1 | P | OFNP | E | Erika Violet | 3 | |||
| 8 | G.657A1 | 5 | |||||||
| 10 | |||||||||
Legacy ordering information
| Connector End | Mode | Cable Configuration | Cable Colour | Cable Diameter | Cable Length (m) | ||||
| LC to LC | 9 | OS1/OS2 | D | Duplex | Y | Yellow | 2.4mm | 1 | |
| 7A1 | G.657A1 | DR | Duplex Riser | A | Aqua | 3.0mm | 2 | ||
| 7A2 | G.657A2 | DP | Duplex Plenum | P | Purple | 3 | |||
| OM3 | OM3 | 5 | |||||||
| OM4 | OM4 | 10 | |||||||
