Product Details:
|
| Model Name: | 1 × 4 PLC FIber Optical Splitter | Package Style: | ABS Module |
|---|---|---|---|
| Configuration Type: | 1×4 | Fiber Type: | G652D, G657A1, G657A2 Fiber |
| Connector Type: | SC/APC | Input/Output Fiber Diameter: | 2.0mm |
| Input/Output Fiber Length: | 1.5m | Split Ratio: | 50/50 Split (Even) |
| Port Wavelength: | 1260 - 1650nm | Optical Fiber Markings: | Input - White, Output - Gray, White, Red, Black |
| Highlight: | 1x4 PLC Optical Splitter Cassette,1x4 PLC Optical Splitter SC APC,FTTX Systems FIber Optical Splitter |
||

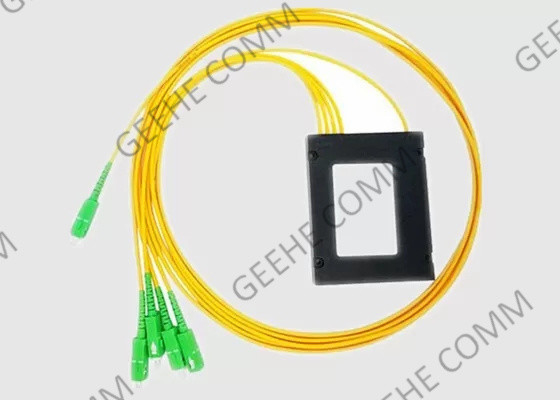

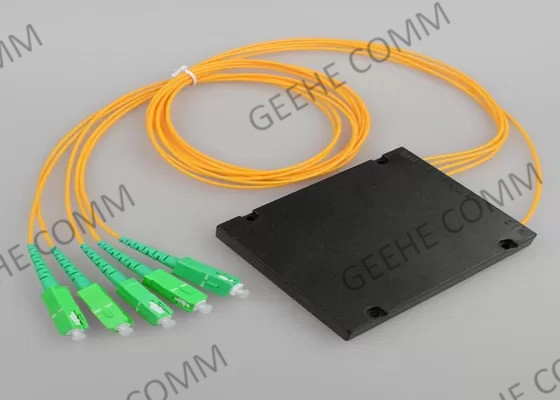

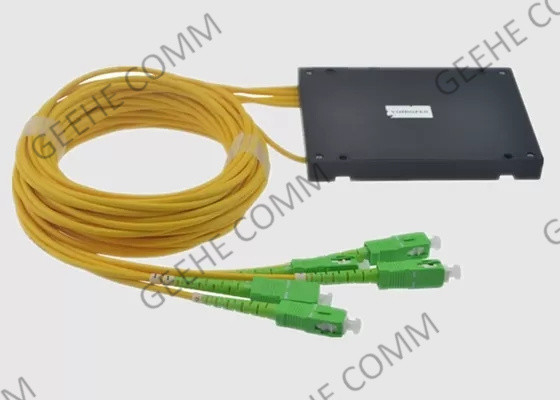

1x4 PLC Optical Splitter Cassette SC APC Planar Waveguide Fiber Optical Splitter
Basic Information:
1xN and 2XN Planar Lightwave Circuit (PLC) Splitters are based on the Plasma Chemical Vapor Deposition (P-CVD) technology and its patented fabrication process for providing stable optical character. 1xN and 2XN Splitter features guaranteed performance specifications and high reliability that surpass Telcordia requirements and is tailored for different applications and markets.
PLC splitter is applied in FTTX developments, PON networks, CATV links, and optical signal distribution. Whole series of 1xN and 2xN splitter modules that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
ABS Module PLC Features& Benefits:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type |
Corning G657A1 |
||||||||||
ABS Package Dimensions:
| W×H×L (mm) | Port | ||||
| 100x80x10 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 120x80x18 | 1x16 | 1x32 | 2x16 | 2x32 | |
| 140x114x18 | 1x32 | 2x32 | 1x64 | ||
Ordering Information:
| PLC- | AAA- | B- | CC- | D- | EE | FF- | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber Length | Input connector | Output Connector |
2×64 ABS PLC Splitter Package:
Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspection process by SGS
