Product Details:
|

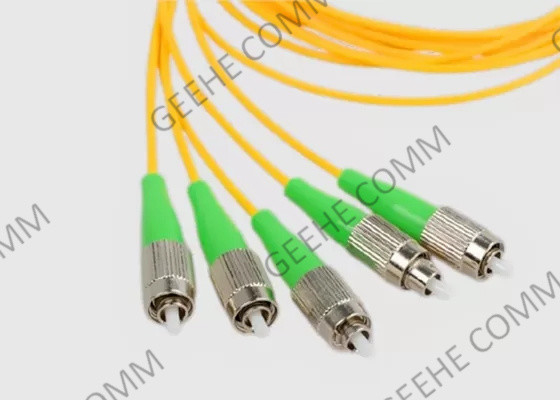

| Model Name: | 1× 4 Passive Optical Splitter | Package Style: | ABS Module |
|---|---|---|---|
| Configuration Type: | 2×4 | Fiber Type: | G652D, G657A1, G657A2 Fiber |
| Connector Type: | FC/APC | Input/Output Fiber Diameter: | 2.0mm |
| Input/Output Fiber Length: | 1.5m | Split Ratio: | 50/50 Split (Even) |
| Port Wavelength: | 1260 - 1650nm | Optical Fiber Markings: | Input - White, Output - Gray, White, Red, Black |
| Highlight: | FC UPC Singlemode Optical Splitter,ABS Box Fiber Optic Splitter 1×4,FTTH Fiber Optic Splitter 1×4 |
||

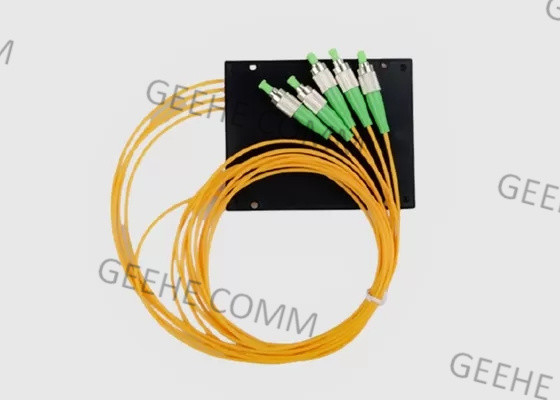

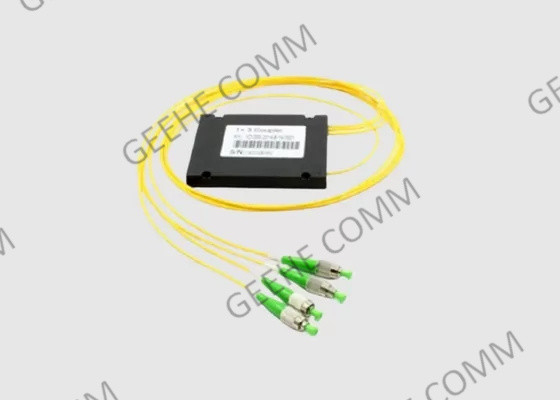

FC UPC Single Mode ABS box CATV FTTH Splitter Fiber Optic 1×4
Basic Information
Fiber splitters are like distribution amplifiers, in that they will spit an incoming signal into multiple identical paths. These are passive devices and require no power and unlike electrical distribution amplifiers these do not boost signal strength, in fact, they do the opposite, the incoming signal power is divided into the outputs resulting in reduced signal strength.
PLC - Planar Lightwave Circuit Used to split optical signals to multiple ports. The splitting or coupling ratio is equal to all ports and cannot be modified. The number of output ports is customized per customer request. The FBT coupler supports a wide range of continuous wavelengths and applies to SMF only.
ABS Module PLC Features& Benefits:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type |
Corning G657A1 |
||||||||||
ABS Package Dimensions:
| W×H×L (mm) | Port | ||||
| 100x80x10 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 120x80x18 | 1x16 | 1x32 | 2x16 | 2x32 | |
| 140x114x18 | 1x32 | 2x32 | 1x64 | ||
Ordering Information:
| PLC- | AAA- | B- | CC- | D- | EE | FF- | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber Length | Input connector | Output Connector |
ABS PLC Splitter Package:
