Product Details:
|
| Model Name: | Single Mode Fiber Optic Splitter | Fiber Type: | G657A Or G652D |
|---|---|---|---|
| Fiber Modes: | SM MM | Splitting Ratio: | 1x2, 1x4, 1x8, 1x16, 1x32, 1x64,2x2, 2x4, 2x8, 2x16, 2x32, 2x36 |
| Operating Wavelength: | 1260 To 1650 Nm | Color: | White And Colorful |
| Fiber Length: | Customized Length1M, 1.5M, 2M, 2.5M, Custom | Connector: | SC/APC |
| Wavelength: | 1310-1550nm | Package: | Steel Tube, ABS Black Box |
| Highlight: | 1×2 0.9mm Optical Splitter,5G 1×2 SC APC Optical Splitter,1×2 FTTH Optical Splitter |
||

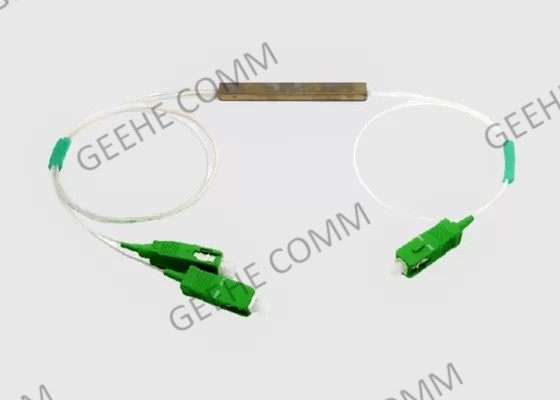

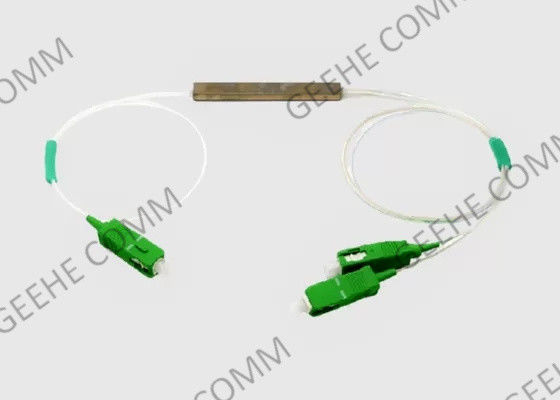

1×2 FTTH SC APC 0.9mm Optical Splitter with 2 In 1 Out For 5G
Optic Splitter Basic Information :
Geehe's Singlemode Fiber Splitters are available from 405nm to 2000nm. Standard fiber splitters have a 50:50 ratio but other ratios such as 10:90 are also available.
Geehe Technology’s high reliability, high grade and superior performance PLC (Planar Lighwave Circuits) based Planar waveguide Optical Signal splitters are manufactured fully in-house in a cleanroom environment at our Millersville, Maryland facility, through an Ion-Exchange-based process providing superior dependability and great performance
We can supply specification:1×2,1×4,1×8,1×16,1×32,1×64,2×4,2×8,2×16,2×32, also can do OEM service for special sizes.
Optic Splitter Features& Benefits:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1 | ||||||||||
Optic Splitter Package Dimensions:
| WxHxD(mm) | Port | ||||
| 60x4x4 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 60x12x4 | 1x16 | 2x16 | |||
| 80x12x6 | 1x32 | 2x32 | |||
| 100x40x6 | 1x64 | ||||
Ordering Information:
| PLC | AAA | B | CC | D | EE | FF | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | Input Connector | Output Connector |
Optic Splitter Shipping :
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
Geehe Factory Optic Splitter Production Line:
