Product Details:
|
| Model Name: | Fiber Patch Cables E2000 To LC | Cable Diameter: | 1.8mm,2.0mm,3.0mm |
|---|---|---|---|
| Fiber Counts: | 2 Cores | Polishing: | UPC,APCM,PC |
| Jacket Material: | PVC/LSZH/OFNR | Cable Length: | 1M,2M,3M...customize |
| Cable Dimensions: | 3.0mm | Jacket Color: | Yellow |
| Fiber Type: | Single Mode, Multimode | ||
| Highlight: | Fiber Patch Cables E2000 To LC,2m E2000/LC Fiber Patch Cables,OS1 Simplex Fiber Patch Cables |
||

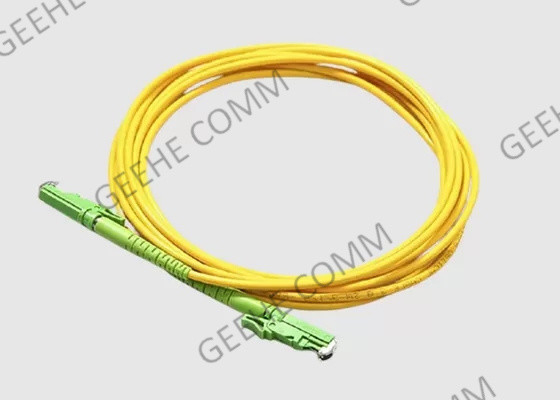

Single Mode OS1 Simplex 2 Meters Fiber Patch Cables E2000 To LC
1. Fiber Patch Cables Basic Introduction:
Fiber optic cabling is the medium of choice for longer distance and challenging cabling runs. These cables are thinner than copper patch cords and immune to EMI (Electromagnetic Interference) making them perfect for riser runs and uplink cables.
Multimode & Single Mode Fiber Optic Patch Cables Fiber optic patch cables connect fiber optic patch panels and high-speed network devices. Complex patch cables are fully tested to ensure reliable performance in critical applications.
Available in single-mode fiber and multimode fiber cable, simplex or duplex, and a variety of standard fiber optic connectors.
2. Fiber Patch Cables Features & Benefits:
3. Fiber Patch Cables Application:
4. Specification&Technology Parameters
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 50 | ||||
| Min.Return Loss(APC) (dB) | 60 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | PM Panda Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5. Fiber patch cord SC Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
* EX:OFC-D-LA-LA-09-1-1.0
6. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SA:LC/APC SC:LC/UPC SP:LC/PC | SA:LC/APC SC:LC:UPC SP:LC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Flange Type | Fiber Length |
