Product Details:
|
| Model Name: | Passive Optical PLC Splitter | Fiber Type: | G657A OR G652D |
|---|---|---|---|
| Fiber Modes: | SM, MM | Splitting Ratio: | 1x2, 1x4, 1x8, 1x16, 1x32, 1x64,2x2, 2x4, 2x8, 2x16, 2x32, 2x36 |
| Operating Wavelength: | 1260 To 1650 Nm | Color: | White And Colorful |
| Fiber Length: | Customized Length1M, 1.5M, 2M, 2.5M, Custom | Connector: | LC/UPC |
| Wavelength: | 1310-1550nm | Package: | Steel Tube, ABS Black Box |
| Highlight: | 2x4 Blockless Optical PLC Splitter,FTTH Passive Optical PLC Splitter,Low Insertion Loss Optical PLC Splitter |
||

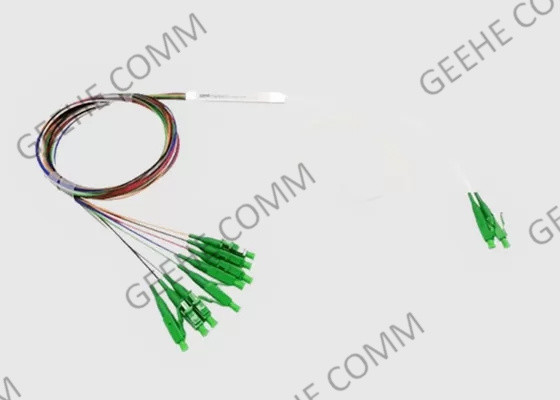

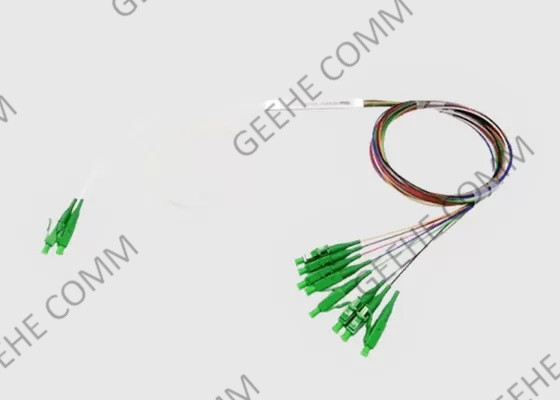

FTTH Insertion Loss 2x4 Blockless Passive Optical PLC Splitter
Optic Splitter Basic Information :
Planar optical splitter (PLC) are passive fiber-optic components, which provide for power splitting of the inputted optical signal. Planar splitters are made of three parts: an input fiber array, power splitting chip, and output fiber array. All three parts must be assembled with very high accuracy in order to guarantee the best possible transmission parameters: a low insertion loss per each channel (minimum IL lagging behind theoretical values), high return loss, high uniformity of transmission parameters for all of the channels over the wavelengths range from 1260 to 1650nm (respectively provide for transmission parameters regardless of the wavelength), for temperatures from -40°C to +85°C and for all states of polarization of the transmitted optical signal.
Optical-splitterOptical splitters are necessary for the transition of optical signals to more subscribers. The most common types of splitters are PLC (splits that are etched on a wafer) and fused (spliced fibers). Optical splitters divide a signal symmetrically and are often used in FTTx and PON networks.
Optic Splitter Features& Benefits:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1 | ||||||||||
Optic Splitter Package Dimensions:
| WxHxD(mm) | Port | ||||
| 60x4x4 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 60x12x4 | 1x16 | 2x16 | |||
| 80x12x6 | 1x32 | 2x32 | |||
| 100x40x6 | 1x64 | ||||
Ordering Information:
| PLC | AAA | B | CC | D | EE | FF | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | Input Connector | Output Connector |
