Product Details:
|
| Model Name: | Mini Fiber Optic PLC Splitter 0.9mm | Cable Type: | 9/125um Single-mode |
|---|---|---|---|
| PLC Casing Type: | Micro PLC | Splitting Ratio: | 1x8 |
| Cable Diameter: | 125um | Fiber Length: | Customized Length1M, 1.5M, 2M, 2.5M, Custom |
| Fiber Type: | G657 Grade A Optical | Port Wavelength: | 1310-1550nm |
| Package: | Steel Tube, ABS Black Box, Rack | Length: | 1m Or 1.5m |
| Highlight: | SC/APC Mini Fiber Optic PLC Splitter,1x8 SC/APC Fiber Optic PLC Splitter,Single Mode PLC Splitter 1x8 |
||

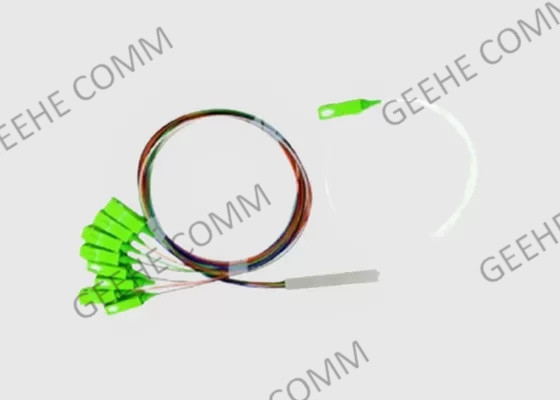

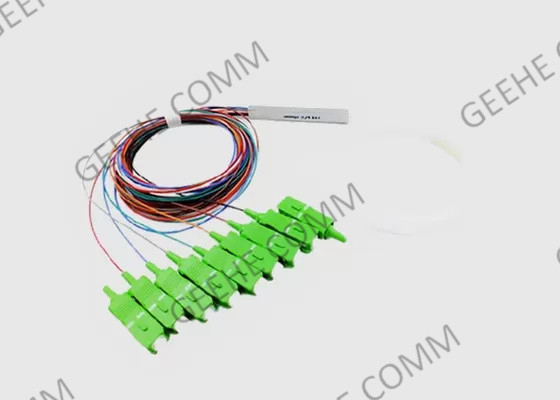

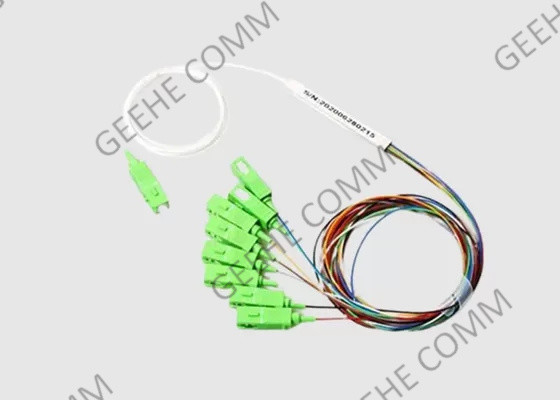

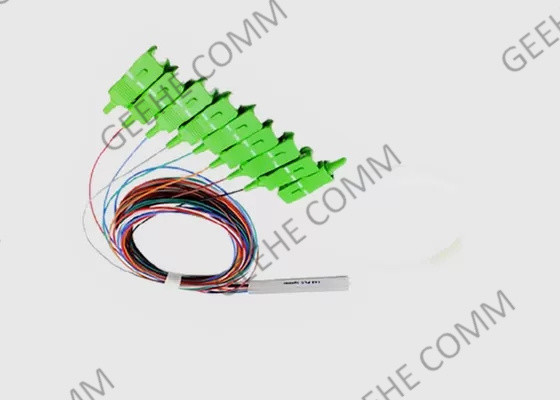

Single Mode Steel Tube 1x8 SC/APC Mini Fiber Optic PLC Splitter 0.9mm
Quick Overview:
Geehe offers a variety of bare fiber type PLC splitters. The bare fiber PLC splitters can be easily placed in a formal joint box or fiber optic splice closures. The bare fiber PLC splitters generally come with 250um bare fiber or 900um buffered fiber with or without connectors. We provide the whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
PLC Splitter Features&Benefit:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1 | ||||||||||
PLC Splitter Package Dimensions:
| WxHxD(mm) | Port | ||||
| 60x7x4 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 60x12x4 | 1x16 | 2x16 | |||
| 80x12x6 | 1x32 | 2x32 | |||
| 100x40x6 | 1x64 | ||||
Ordering Information:
| PLC | AAA | B | CC | D | EE | FF | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | Input Connector | Output Connector |
