1x 26 Singlemode PLC Fiber Splitter Tube SC/APC Connectors 60/40 Split

Large Image : 1x 26 Singlemode PLC Fiber Splitter Tube SC/APC Connectors 60/40 Split

Product Details:

Place of Origin:	Wuhan, China
Brand Name:	Geehe Comm (OEM&ODM)
Certification:	ISO9001:2015, RoHs, UL,CE
Model Number:	GH-PLC-1X26-001

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Plastic box per pc with Pressure defense sponge, outer carton
Delivery Time:	7-9 working days after confirm PI TODAY
Payment Terms:	T/T, L/C, D/P, , D/A, Western Union, MoneyGram, Sinosure
Supply Ability:	6,600 Pcs/day

Contact Now

1x 26 Singlemode PLC Fiber Splitter Tube SC/APC Connectors 60/40 Split

Description

Model Name:	1x 26 Single Mode PLC Splitter	Cable Type:	9/125um Single-mode
PLC Casing Type:	Micro PLC	Splitting Ratio:	60/40
Cable Diameter:	125um	Fiber Length:	Customized Length1M, 1.5M, 2M, 2.5M, Custom
Fiber Type:	G657 Grade A Optical	Port Wavelength:	1310-1550nm
Package:	Steel Tube, ABS Black Box, Rack, Module	Length:	1m Or 1.5m
Highlight:	1x 26 Singlemode PLC Fiber Splitter , SC/APC PLC Splitter 1x 26 , 60/40 Split Fiber Optic PLC Splitter

1x 26 Single Mode PLC Splitter Tube SC/APC Connectors 60/40 Split

Quick Overview:

PLC-1/26-E-SM-SC/APC
Fiber Optic Splitter, Tube Type, PLC
Connector Type: SC/APC
Split Type: 1x26
Single Mode
Fiber:0.9mm bare fiber
Package: Wooden box with desinged inside box
Easy Installation
GR-1209/1220-Core Standard

PLC Splitters provide a cost-effective and space-saving product suitable to the ever-changing networking requirements. With its compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.

Installation is simple using a variety of connector types or fusion splicing.

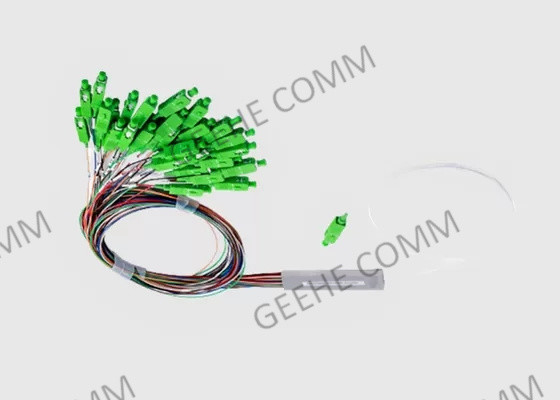

1x 26 Singlemode PLC Fiber Splitter Tube SC/APC Connectors 60/40 Split 0

PLC Splitter Features&Benefit:

Small size and Achieve 0.9mm loose tube fiber optic multi-channel direct output without splitter;
SC adapter interface default can change interface type by the demand of customer;
Satisfy with industry standards YD/T893 and YD/T1117.
Installed in the cable connector box;
Installed in the module box;
Installed in the distribution box.

Application&Standard:

LAN, WAN & Metro Networks
Telecommunication Networks
Passive Optical Networks
FTT(X) Systems
CATV
Value Added Module

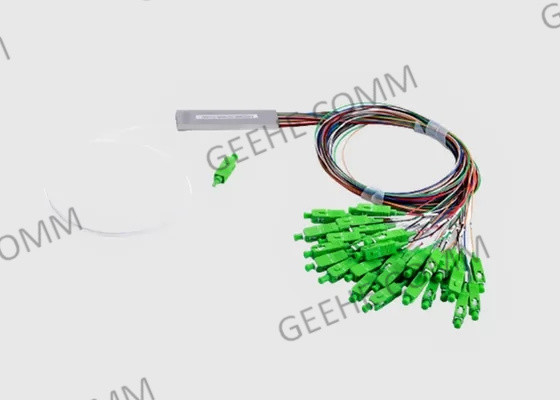

1x 26 Singlemode PLC Fiber Splitter Tube SC/APC Connectors 60/40 Split 1

Specification& parameters

Parameter	1x4	1x8	1x16	1x32	1x64	2x4	2x8	2x16	2x32
Operating Wavelength(nm)	1260~1650
Port Wavelength Range (nm)	1310 ±20,1490 ±10 and 1550 ±20
Insertion Loss @1310nm/1550nm	7.1	10.5	13.6	16.8	20.5	7.4	10.8	14.5	17.5
Uniformity (dB)	0.5	0.8	1	1.2	1.8	1.2	1.5	1.8	2
PDL @ 1310/1550 nm (dB)	≤0.3
Return Loss@ 1310/1551 nm (dB)	≤-55
Input Power (mW)	250max
Operating Temperature (℃)	-40~+85℃
Storage Temperature (℃)	-40~+85℃
Fiber Type	Corning G657A1

PLC Splitter Package Dimensions:

WxHxD(mm)	Port
60x7x4	1x4	1x8	2x4	2x8
60x12x4	1x16		2x16
80x12x6	1x32		2x32
100x40x6	1x64

Ordering Information:

PLC	AAA	B	CC	D	EE	FF	GG
	104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32	1=900µm loose	05=0.5m 10=1.0m 15=1.5m 20=2.5m	1=900µm loose	05=0.5m 10=1.0m 15=1.5m 20=2.5m	SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector	SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector
	Configuration	Input Fiber Type	Input Fiber Length	Output Fiber Length	Output Fiber	Input Connector	Output Connector

Geehe Comm Service:

Provide the highest quality of products
Continuous improvement; accepting new challenges
Innovating new processes, and creating new products for the benefit of our customers
Consultative service and strive to ensure a positive and productive experience
Efficient use of all transportation modes and transit times
Greater visibility and real-time information
Younger team with more energy to supply VIP service for every customer
Fast turnover and delivery for orders with familiar and mature workers

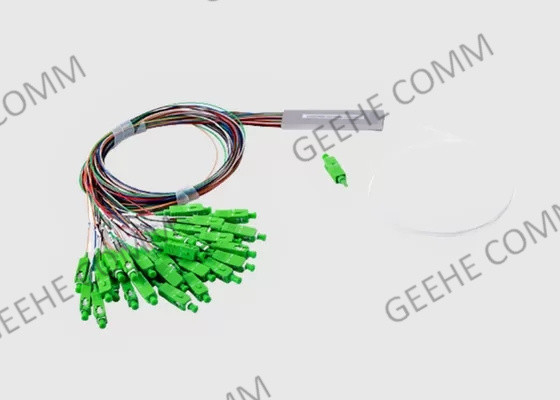

1x 26 Singlemode PLC Fiber Splitter Tube SC/APC Connectors 60/40 Split 2
