Product Details:
|
| Model Name: | 1 ×64 SC APC Fiber Optical Splitter Tap | Cable Type: | 9/125um Single-mode |
|---|---|---|---|
| PLC Casing Type: | Micro PLC | Splitting Ratio: | 1x64 |
| Cable Diameter: | 900um | Fiber Length: | Customized Length1M, 1.5M, 2M, 2.5M, Custom |
| Fiber Type: | G657 Grade A Optical | Port Wavelength: | 1310-1550nm |
| Package: | Steel Tube, ABS Black Box, Rack, Module | Length: | 1m Or 1.5m |
| Highlight: | 900um Blockless Single Mode Fiber Splitter,1×64 SC APC Fiber Optical Splitter,900um 1×64 PLC Optical Splitter |
||

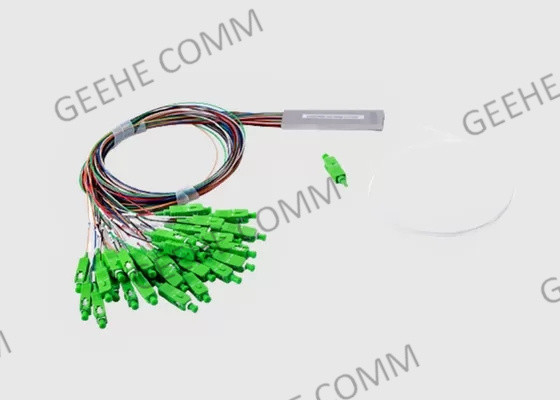

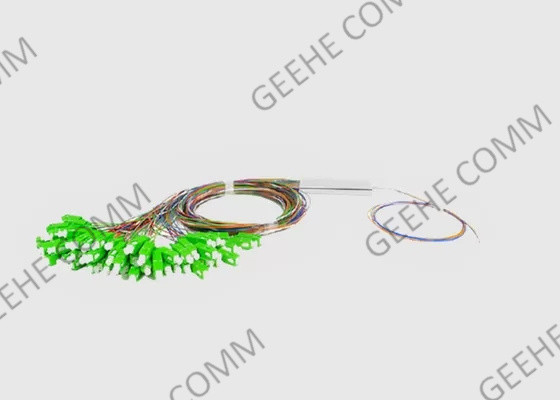

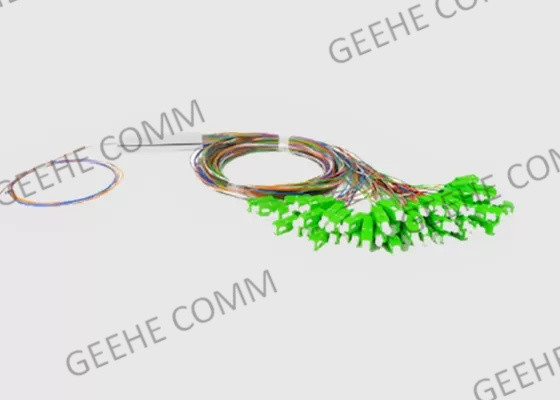

Single Mode 900um Blockless 1 ×64 SC APC Fiber Optical Splitter Tap 50:50
Quick Overview:
Geehe's high reliability, high grade, and superior performance PLC (Planar Lightwave Circuits) based Planar waveguide Optical Signal splitters are manufactured fully in-house in a clean room environment at our Millersville, Maryland facility, through an Ion-Exchange-based process providing superior dependability and great performance.
Our Single Mode, Multimode, and Planar Waveguide Splitters are designed and manufactured to provide low loss and excellent uniformity over wide temperature ranges. Available in a variety of configurations, Geehe can provide the component you need for your specific application. Optional connectors or packaging requirements are easily implemented.
PLC Splitter Features&Benefit:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1 | ||||||||||
PLC Splitter Package Dimensions:
| WxHxD(mm) | Port | ||||
| 60x7x4 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 60x12x4 | 1x16 | 2x16 | |||
| 80x12x6 | 1x32 | 2x32 | |||
| 100x40x6 | 1x64 | ||||
Ordering Information:
| PLC | AAA | B | CC | D | EE | FF | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | Input Connector | Output Connector |
Compliance:
- Telcordia GR-1209-CORE
- Telcordia GR-1221-CORE
- RoHS
