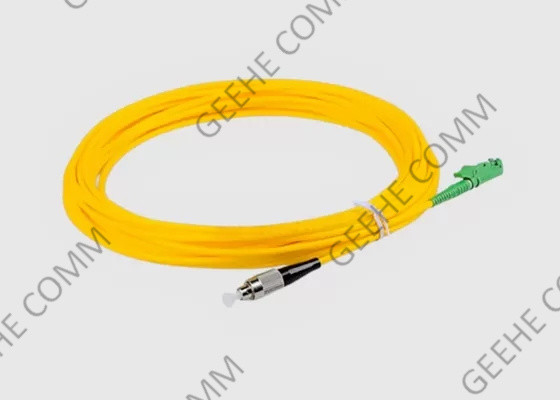

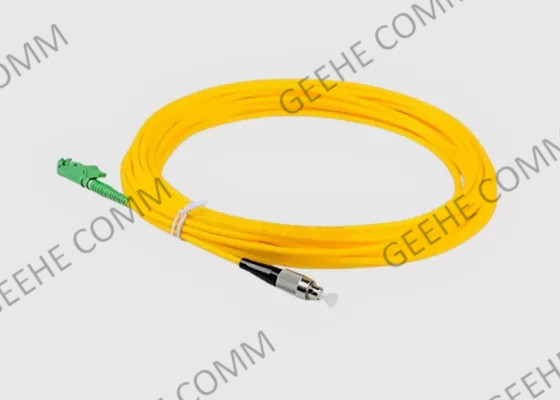

2m LZSH E2000 UPC To FC SM Simplex 9/125 SM UPC Patch Cord

2M LZSH E2000 UPC TO FC SM SIMPLEX 9/125 SM FIBER OPTIC CABLES

1. Fiber Patch Cord Basic Introduction:

Fiber Optic Patch Cords are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination of ceramic/phosphor bronze alignment sleeves and a precision-molded polymer housing provides consistent long-term mechanical and optical performance.

Singlemode fiber optic patch cord with core diameter/ferrule of E2000/APC-E2000/APC connectors 9/125. It is available in simplex and duplex presentation with UPC or APC polished.

1.Price-Competitive

2.Low Insertion Loss & PDL

3.Factory-terminated and Tested

4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber

5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP

6.Polishing Options: PC/UPC/APC

7.Feature Connector with Ceramic Ferrules

2. Fiber Optic Jumper  Benefit & Features:

• Locking latch connector retention mechanism.
• Integrated ferrule end face shutter for product protection.
• Fits existing cabling designs.
• Low loss.
• Excellent for high-packing applications.
• Full-ceramic ferrule.
• Easy to use
• Single-mode fibre according to ITU-T G.657A1, EN 50173-1 OS2
• Quality according to IEC 61755-1 class C1
• CWDM and DWDM ready, tested on 1310, 1550, and 1625 nm
• 2.0 mm cable for high density in ODF

3. Fiber Optic Jumper Applications:

• Testing equipment
• FTTX+LAN
• Optical fiber CATV
• Optical communication system
• Telecommunication

4. Specification&Technology Parameters

5. Ordering Information

Legacy ordering information

6.  Options Available

-- LC Custom fiber optic jumper options include.
-- LC/PC (Physical Contact) Polish
-- LC/UPC (Ultra Physical Contact) polish
-- LC/APC (Angled Physical Contact) polish

Jacket: Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC

Diameter: 0.9mm (900µm), 1.6mm, 1.8mm, 2.0mm, 3.0mm

Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
LC Multimode 62.5/125µm MMF Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM2 Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM3 10Gb Laser Optimized Fiber (Corning Fiber)
LC Simplex cables or LC Duplex Cables are also available in optional colors.
LC Standard boot, LC 45° angled boot, LC 90°angled boot, or short boot options.
Corning Fiber Optic Cable, or Fiber One Fiber.
Call us today to speak with one of our qualified salespeople to help answer any questions.
