Product Details:
|
| Model Name: | Fiber Optic PLC Splitter | Package Style: | ABS Module |
|---|---|---|---|
| Configuration Type: | 1×8 | Fiber Type: | G652D, G657A1, G657A2 Fiber |
| Connector Type: | FC/APC | Input/Output Fiber Diameter: | 2.0mm |
| Input/Output Fiber Length: | 1.5m | Split Ratio: | 50/50 Split (Even) |
| Port Wavelength: | 1260 - 1650nm | Optical Fiber Markings: | Input - White, Output - Gray, White, Red, Black |
| Highlight: | High Density Optic Fibre Splitter,50/50 Fiber Optic Cable Splitter,Optical Splitter For FTTH |
||

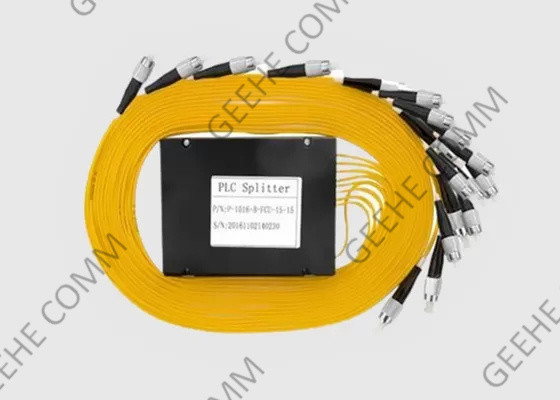

50:50 Suit High-Density Optic Fibre Splitter 1 ×16 For FTTH & GEPON
Basic Information
Fibre Optic passive optical splitters offer a simple, convenient, and compact method of splitting a fiber signal over a pair of fibers.
Optical splitters work by allowing an optical signal traveling through a fibre to be divided between multiple output circuits. Optical splitters are a key component in many passive optical networks including FTTx installations. PLC splitter is the planer wavelength integrated optic device based on the quartz substrate, with small size, wide-field operation wavelength and high reliability, and high splitter ratio features.
3mm and 900um furcated pigtail options and a variety of connector styles are offered in both single-mode and multimode applications.
ABS Module PLC Features& Benefits:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type |
Corning G657A1 |
||||||||||
ABS Package Dimensions:
| W×H×L (mm) | Port | ||||
| 100x80x10 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 120x80x18 | 1x16 | 1x32 | 2x16 | 2x32 | |
| 140x114x18 | 1x32 | 2x32 | 1x64 | ||
Ordering Information:
| PLC- | AAA- | B- | CC- | D- | EE | FF- | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | FA=FC/APC SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | FA=FC/APC SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber Length | Input connector | Output Connector |
ABS PLC Splitter Package:
Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspection process by SGS
5) Own Testing Labs
Our factory has its own Agin testing Labs, the machines imported from Japan, the reliability can be guaranteed
